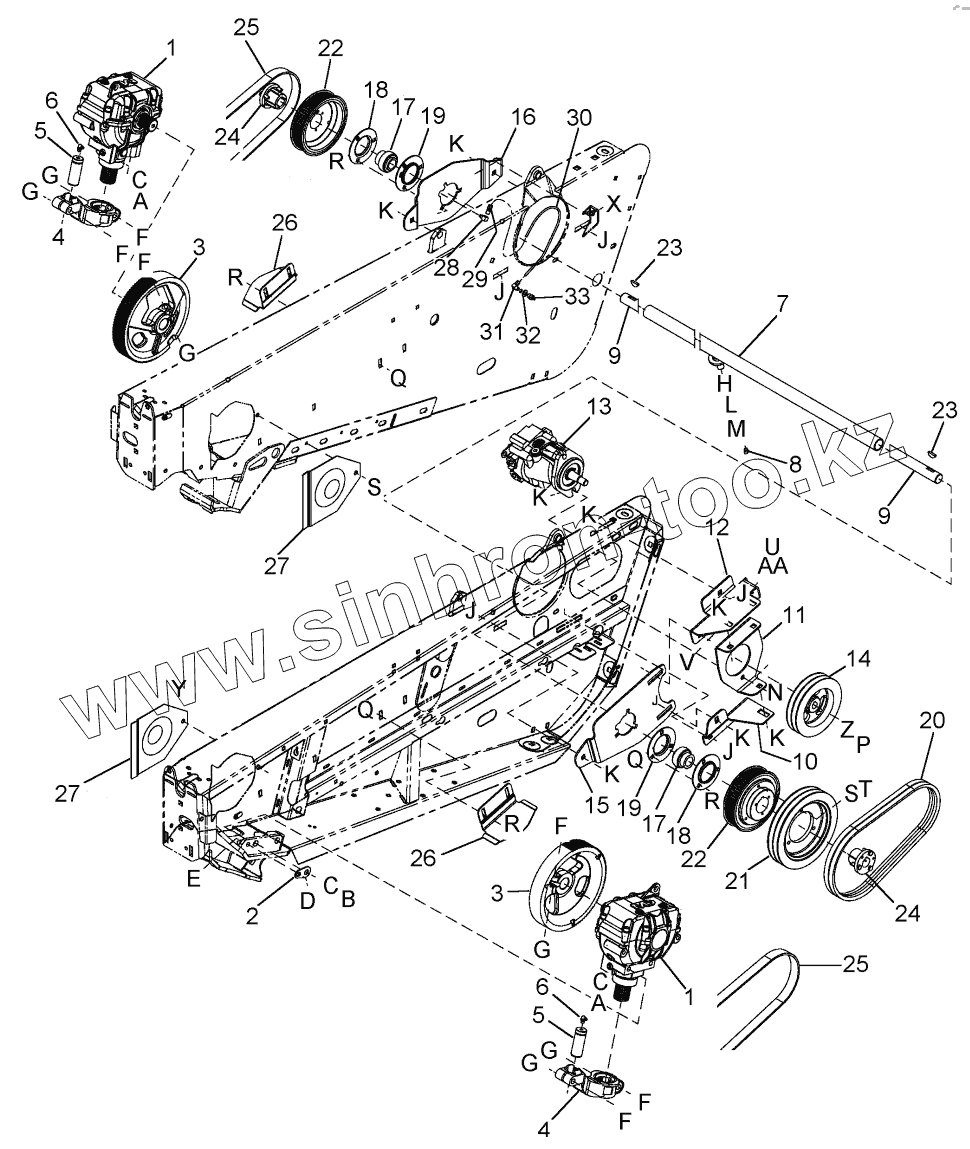

Каталог запасных частей к технике: CASE IH Жатка-2152. TIMED KNIFE DRIVE - DOUBLE SICKLE HEADERS
1
1
2
3
3
4
4
5
5
6
6
7
7
7
7
8
9
9
9
9
9
9
10
10
11
11
12
12
13
14
14
15
15
16
17
17
18
18
19
19
20
20
21
22
22
23
23
24
24
25
25
26
26
27
27
28
29
30
31
32
33
A
A
B
C
C
C
D
E
F
F
F
F
F
F
G
G
G
G
G
G
H
J
J
J
J
J
K
K
K
K
K
K
K
K
L
M
N
P
Q
Q
Q
R
R
R
R
S
S
T
U
V
X
Y
Z
AA
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 338670A1 | DRIVE | |
| 2 | 87561226 | PLATE | |
| 3 | 87559126 | PULLEY | |
| 4 | 369994A1 | ARM | |
| 5 | 345893A1 | PIN | |
| 6 | 80719 | NIPPLE | |
| 7 | 87561639 | TUBE ASSY | |
| 7 | 87560321 | TUBE | |
| 7 | 87560322 | TUBE | |
| 7 | 87561640 | TUBE ASSY | |
| 8 | 86585176 | NIPPLE | |
| 9 | 87561509 | SHAFT | |
| 9 | 87561510 | SHAFT | |
| 9 | 87561511 | SHAFT | |
| 9 | 87561512 | SHAFT | |
| 9 | 87561513 | SHAFT | |
| 10 | 87589372 | SUPPORT ASSY | |
| 10 | SUPPORT | SUPPORT | |
| 11 | 87560331 | SUPPORT | |
| 11 | SUPPORT | SUPPORT | |
| 12 | 87589371 | SUPPORT ASSY | |
| 12 | SUPPORT | SUPPORT | |
| 13 | 87561182 | MOTOR | |
| 14 | 87561231 | PULLEY | |
| 14 | 87561232 | PULLEY | |
| 15 | 87561615 | SUPPORT | |
| 15 | SUPPORT | SUPPORT | |
| 16 | 87561614 | SUPPORT | |
| 17 | 557117R11 | COLLAR CLAMP | |
| 18 | 202909C1 | FLANGE | |
| 19 | 470745R91 | HOUSING | |
| 20 | 87560522 | BELT | |
| 20 | 87566355 | BELT | |
| 21 | 87560298 | PULLEY | |
| 22 | 87560332 | SPROCKET | |
| 23 | 126-28 | KEY | |
| 24 | D78571 | BUSHING | |
| 25 | 87566357 | BELT | |
| 26 | 87561104 | GUIDE | |
| 27 | 338746A1 | SHIELD | |
| 28 | 219-439 | ADAPTER | |
| 29 | 87566762 | INSERT | |
| 30 | 87560320 | HOSE | |
| 31 | 87566763 | FITTING | |
| 32 | 495-11041 | WASHER | |
| 33 | 80710 | NIPPLE | |
| 35 | PLATE | PLATE Dished Washer | |
| 36 | PULLEY | INSTRUCTION CRANKSHAFT PULLEY | |
| 37 | SPACER | SPACER | |
| 38 | SUPPORT | SUPPORT | |
| A | 87566365 | BOLT | |
| B | 87566364 | BOLT | |
| C | 87566801 | WASHER | |
| D | 87670 | BOLT | |
| E | 231-4148 | NUT | |
| F | 87338 | BOLT | |
| G | 231-41410 | NUT | |
| H | 86624159 | WASHER | |
| J | 280486 | BOLT | |
| K | 87323841 | NUT | |
| L | 9847025 | WASHER | |
| M | 231-41412 | NUT | |
| N | 87868 | SCREW | |
| P | 88095 | NUT | |
| Q | 86508748 | BOLT | |
| R | 86521609 | NUT | |
| S | 492-11038 | WASHER | |
| T | 88011 | BOLT | |
| U | 87012913 | BOLT | |
| V | 86512371 | NUT | |
| W | 87566367 | BOLT | |
| X | 87530607 | NUT | |
| Y | 409-768 | BOLT | |
| Z | 495-81042 | WASHER | |
| AA | 95-21056 | WASHER | |
| FF | 433-1040 | BOLT | |
| GG | 492-11062 | WASHER | |
| HH | 425-1010 | NUT |
