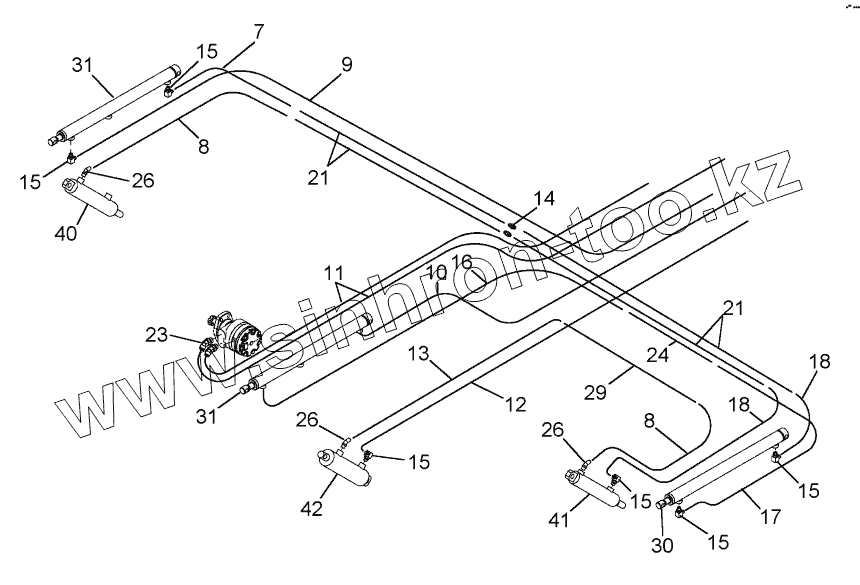

Каталог запасных частей к технике: CASE IH Жатка-2152. REEL HYDRAULIC ROUTING - DOUBLE REEL HEADERS
7
8
8
9
9
9
9
10
11
12
13
14
14
15
15
15
15
15
15
15
16
17
17
18
18
18
21
21
21
21
21
21
21
23
24
24
24
24
24
24
26
26
26
29
30
31
31
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 237-6010 | 237-6010 | O-RING | |
| 237-6006 | 237-6006 | O-RING | |
| 345950A1 | 345950A1 | PACKAGE | |
| 87585357 | 87585357 | KIT | |
| 87585356 | 87585356 | KIT | |
| 87585358 | 87585358 | KIT | |
| 4 | 370051A1 | LINE | |
| 4 | 370051A1 | LINE | |
| 7 | 87605725 | HOSE ASSY | |
| 8 | 87605724 | HOSE ASSY | |
| 9 | 227185A1 | HOSE | |
| 9 | 1284318C1 | HOSE | |
| 9 | 87565651 | AUGER | |
| 9 | 1264171C1 | HOSE | |
| 10 | 87605735 | HOSE ASSY | |
| 11 | 87675670 | Reel Motor | |
| 12 | 87565722 | HOSE ASSY | |
| 13 | 126624A1 | HOSE | |
| 14 | 128821 | UNION | |
| 14 | 128821 | UNION | |
| 15 | 218-5105 | ELBOW | |
| 15 | 218-5105 | ELBOW | |
| 16 | 87565701 | HOSE ASSY | |
| 17 | 87565673 | HOSE ASSY | |
| 17 | 87605722 | HOSE ASSY | |
| 18 | 87605723 | HOSE ASSY | |
| 18 | 87605723 | HOSE ASSY | |
| 21 | 87605750 | TUBE | |
| 21 | 87605748 | TUBE | |
| 21 | 87605748 | TUBE | |
| 21 | 87605749 | TUBE | |
| 21 | 87605749 | TUBE | |
| 21 | 87605750 | TUBE | |
| 23 | 218-5137 | ELBOW | |
| 24 | 87565803 | HOSE | |
| 24 | 87565797 | HOSE | |
| 24 | 87565797 | HOSE | |
| 24 | 87565799 | HOSE | |
| 24 | 87565799 | HOSE | |
| 24 | 87565803 | HOSE | |
| 26 | 201-315 | ELBOW | |
| 29 | 87532509 | CLAMP | |
| 30 | 345942A1 | CYLINDER | |
| 31 | 87585285 | CYLINDER ASSY | |
| 40 | 87560932 | CYLINDER | |
| 41 | 87560926 | CYLINDER | |
| 42 | 87560931 | CYLINDER | |
| 52 | 87605727 | HOSE ASSY | |
| 52 | 87605727 | HOSE ASSY | |
| 56 | 87585342 | HOSE ASSY | |
| 58 | 87699657 | HOSE ASSY |
