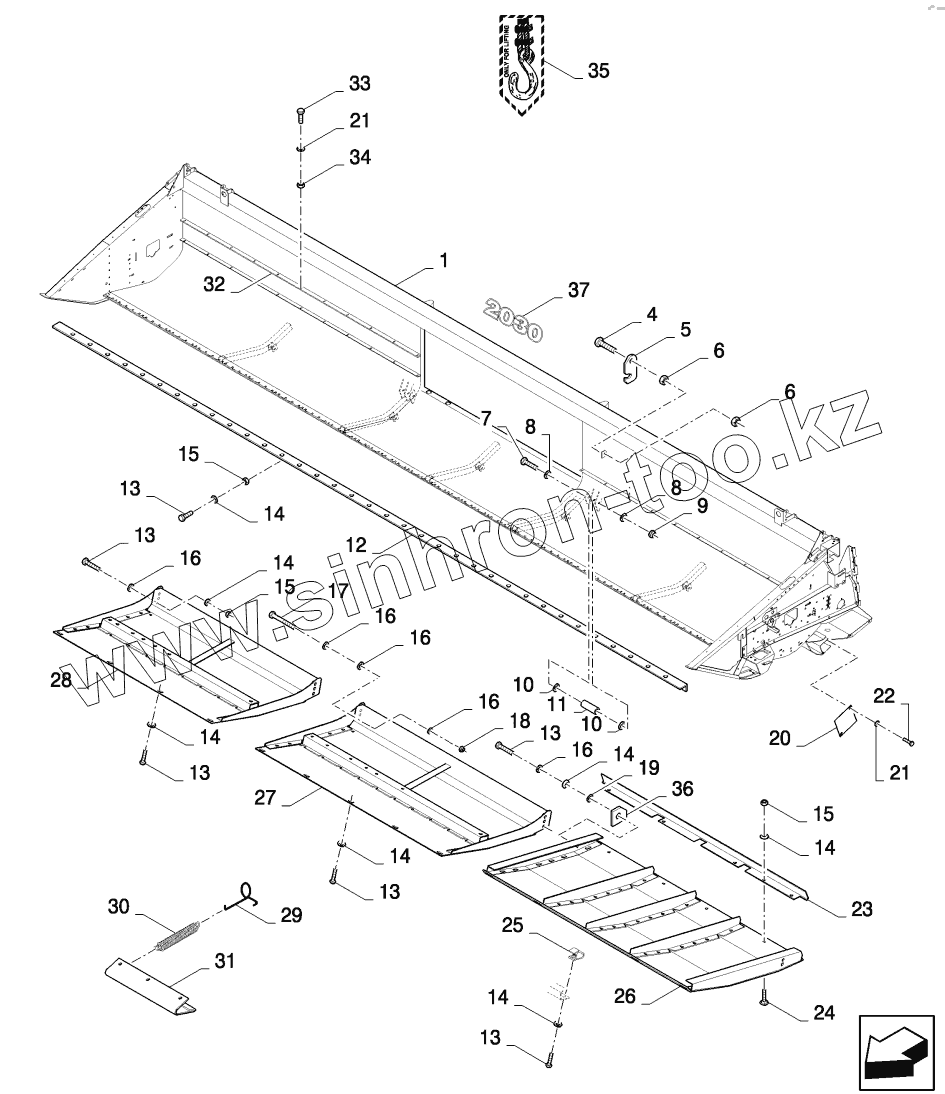

Каталог запасных частей к технике: CASE IH Жатка-2030 (RIGID). 20.06 HEADER, KNIFE GUARDS
1
4
5
6
6
7
8
8
9
10
10
11
12
13
13
13
13
13
13
14
14
14
14
14
14
14
15
15
15
16
16
16
16
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 84457251 | FRAME | |
| 1 | 84457091 | FRAME | |
| 1 | 87317102 | FRAME | |
| 1 | 87317105 | FRAME | |
| 1 | 87344196 | FRAME | |
| 1 | 84453905 | FRAME | |
| 1 | 84457107 | FRAME | |
| 1 | 84453967 | FRAME | |
| 1 | 84457245 | FRAME | |
| 1 | 84800228 | FRAME | |
| 1 | 84457103 | FRAME | |
| 1 | 84457247 | FRAME | |
| 1 | 84457102 | FRAME | |
| 1 | 84457101 | FRAME | |
| 4 | 86629541 | BOLT | |
| 5 | 80433871 | CLIP | |
| 5 | 84457665 | HOOK | |
| 6 | 89706685 | NUT | |
| 7 | 86508581 | BOLT | |
| 7 | 80412485 | BOLT | |
| 8 | 80394630 | WASHER | |
| 9 | 80412126 | NUT | |
| 10 | 84011662 | WASHER | |
| 11 | 80919462 | BUSHING | |
| 12 | 87347656 | FOR 17FT ONLY | |
| 12 | 87347633 | ANGLE BAR | |
| 12 | 87347645 | ANGLE BAR | |
| 12 | 87347652 | FOR 20FT ONLY | |
| 13 | 80043140 | BOLT | |
| 13 | 80120112 | SCREW | |
| 14 | 80140045 | WASHER | |
| 15 | 100016 | NUT | |
| 16 | 80378244 | WASHER | |
| 17 | 80120073 | SCREW | |
| 17 | 80120074 | SCREW | |
| 18 | 80100037 | NUT | |
| 19 | 80140042 | WASHER | |
| 20 | 84038848 | COVER | |
| 21 | 80322358 | WASHER | |
| 22 | 80120103 | BOLT | |
| 23 | 84036212 | PLATE | |
| 23 | 84320712 | PLATE | |
| 24 | 80120041 | BOLT | |
| 25 | 84036083 | HOOK | |
| 26 | 84036214 | PLATE | |
| 26 | 84448906 | PLATE | |
| 26 | 84320713 | PLATE | |
| 26 | 84448350 | PLATE | |
| 27 | 84043880 | PLATE | |
| 27 | 84435727 | PLATE | |
| 27 | 84064844 | PLATE | |
| 27 | 84448580 | PLATE | |
| 27 | 87342004 | PLATE | |
| 27 | 84448554 | PLATE | |
| 27 | 89593675 | PLATE | |
| 27 | 84448900 | PLATE | |
| 27 | 84064844 | PLATE | |
| 27 | 84077882 | PLATE | |
| 28 | 84061449 | PLATE | |
| 28 | 84448566 | PLATE | |
| 29 | 89837015 | HOOK | |
| 30 | 84814908 | SPRING | |
| 31 | 89838588 | PROTECTION PLATE | |
| 32 | 84075429 | PLATE | |
| 32 | 84064780 | PLATE | |
| 32 | 84075420 | PLATE | |
| 32 | 84075425 | PLATE | |
| 32 | 84435388 | PLATE | |
| 33 | 86507486 | BOLT | |
| 34 | 89706690 | NUT | |
| 35 | 80449973 | DECAL | |
| 36 | 89502135 | PLATE | |
| 37 | 87328032 | DECAL | |
| 37 | 87328031 | DECAL | |
| 37 | 87328030 | DECAL | |
| 37 | 84453756 | DECAL | |
| 37 | 84442886 | DECAL | |
| 37 | 84453759 | DECAL | |
| 37 | 84442885 | DECAL | |
| 37 | 84453761 | DECAL | |
| 37 | 84442884 | DECAL | |
| 37 | 84442883 | DECAL | |
| 37 | 84440714 | DECAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
