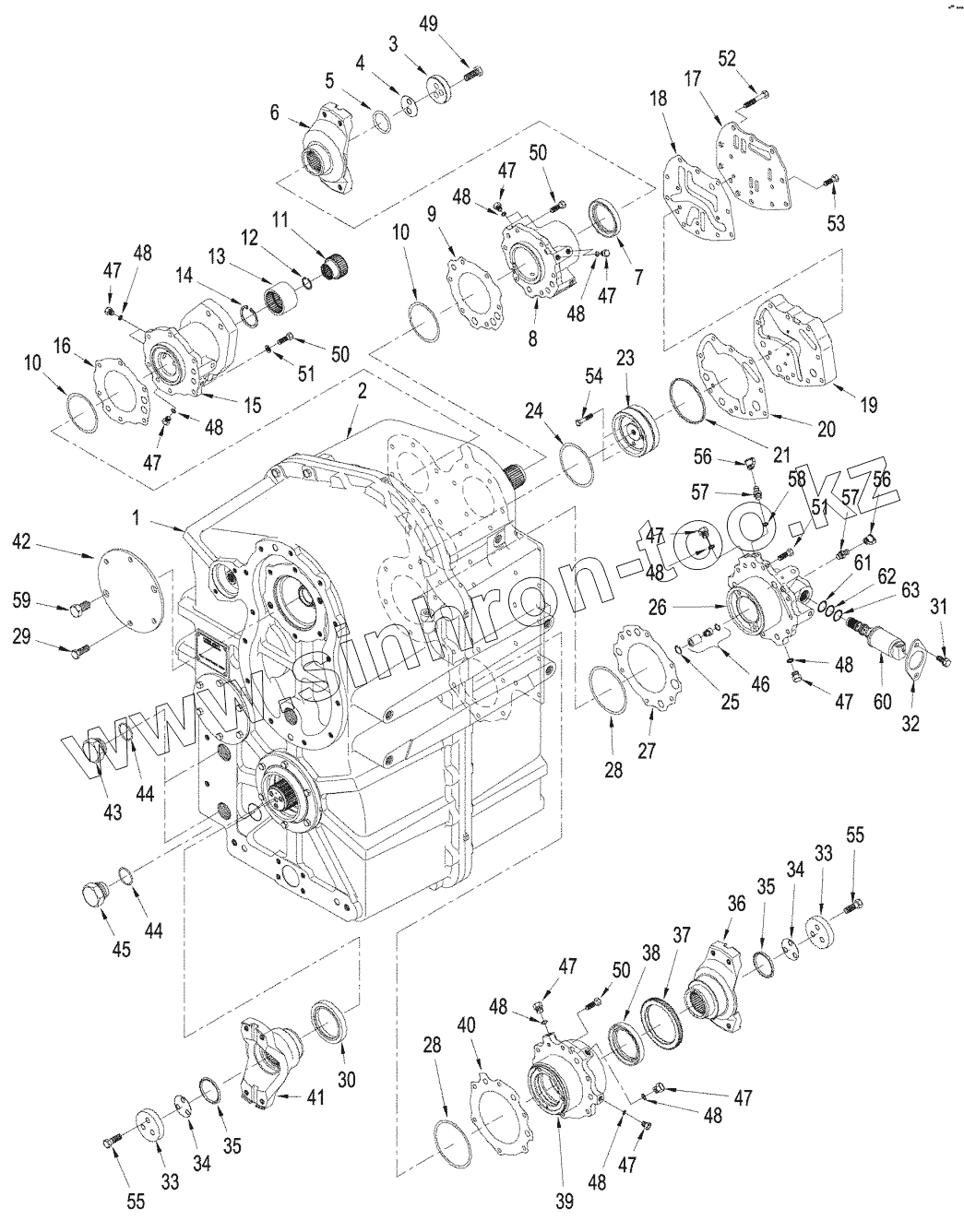

Каталог запасных частей к технике: CASE IH STX-530 Steiger. POWER SHIFT TRANSMISSION - COVERS AND YOKES
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
28
29
30
31
32
33
33
34
34
35
35
36
37
38
39
40
41
42
43
44
44
45
46
47
47
47
47
47
47
47
47
47
48
48
48
48
48
48
48
48
48
49
50
50
50
51
51
52
53
54
55
55
56
56
57
57
58
59
60
61
62
63
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 178889A1 | 178889A1 | FITTING | |
| 1 | 87350466 | TRANSMISSION HOUSING | |
| 2 | 87350479 | HOUSING | |
| 3 | 427539A1 | PLATE | |
| 4 | 427561A1 | SHIM | |
| 4 | 427562A1 | SHIM | |
| 4 | 427560A1 | SHIM | |
| 5 | 428162A1 | O-RING | |
| 6 | 373136A1 | COUPLING FLANGE | |
| 6 | 362563A1 | COUPLING FLANGE | |
| 7 | 428159A1 | SEAL | |
| 8 | 362564A1 | RETAINER | |
| 9 | 362565A1 | GASKET | |
| 10 | 359242A1 | SHIM | |
| 10 | 359251A1 | SHIM | |
| 10 | 359244A1 | SHIM | |
| 10 | 359243A1 | SHIM | |
| 11 | 362566A1 | ADAPTER | |
| 12 | 800-2128 | RING | |
| 13 | 362567A1 | COUPLING | |
| 14 | 428681A1 | SNAP RING | |
| 15 | 87542516 | RETAINER | |
| 16 | 362569A1 | GASKET | |
| 17 | 87351326 | PLATE | |
| 18 | 87351331 | GASKET | |
| 19 | 87351392 | PLATE | |
| 20 | 87351393 | GASKET | |
| 21 | 362574A1 | O-RING | |
| 23 | 87362252 | RETAINER | |
| 24 | 359253A1 | SHIM | |
| 24 | 362577A1 | SHIM | |
| 24 | 362576A1 | SHIM | |
| 24 | 359252A1 | SHIM | |
| 25 | 100-2156 | RING | |
| 26 | 87351399 | MANIFOLD VALVE | |
| 27 | 362580A1 | GASKET | |
| 28 | 427568A1 | SHIM | |
| 28 | 427567A1 | SHIM | |
| 28 | 427565A1 | SHIM | |
| 28 | 427564A1 | SHIM | |
| 28 | 427566A1 | SHIM | |
| 29 | 514-842 | BOLT | |
| 30 | 87351325 | SEAL | |
| 31 | 614-8020 | BOLT | |
| 32 | 87351402 | PLATE | |
| 33 | 427515A1 | PLATE | |
| 34 | 427517A1 | SHIM | |
| 34 | 427519A1 | SHIM | |
| 35 | 428165A1 | O-RING | |
| 36 | 373137A1 | COUPLING FLANGE | |
| 36 | 362598A1 | COUPLING FLANGE | |
| 37 | 362601A1 | RING | |
| 38 | 427514A1 | SEAL | |
| 39 | 362602A1 | RETAINER | |
| 40 | 362603A1 | GASKET | |
| 41 | 87351323 | YOKE | |
| 41 | 87351322 | YOKE | |
| 42 | 427558A1 | COVER | |
| 43 | 303493A1 | PLUG | |
| 44 | 637-64386 | O-RING | |
| 45 | 375456A1 | PLUG | |
| 46 | 87350436 | VALVE | |
| 47 | 220064A1 | PLUG | |
| 48 | 637-63113 | O-RING | |
| 49 | 514-915 | BOLT | |
| 50 | 514-730 | BOLT | |
| 51 | 892-11010 | WASHER | |
| 52 | 514-712 | BOLT | |
| 53 | 514-723 | BOLT | |
| 54 | 614-8040 | BOLT | |
| 55 | 514-853 | BOLT | |
| 56 | H434163 | DUST CAP | |
| 57 | NSS | NOT SERVICED SEPARATELY | |
| 58 | 637-63113 | O-RING | |
| 59 | 427559A1 | SCREW | |
| 60 | 87357396 | VALVE | |
| 61 | 87014033 | O-RING | |
| 62 | 238-7016 | O-RING | |
| 63 | 238-7015 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
