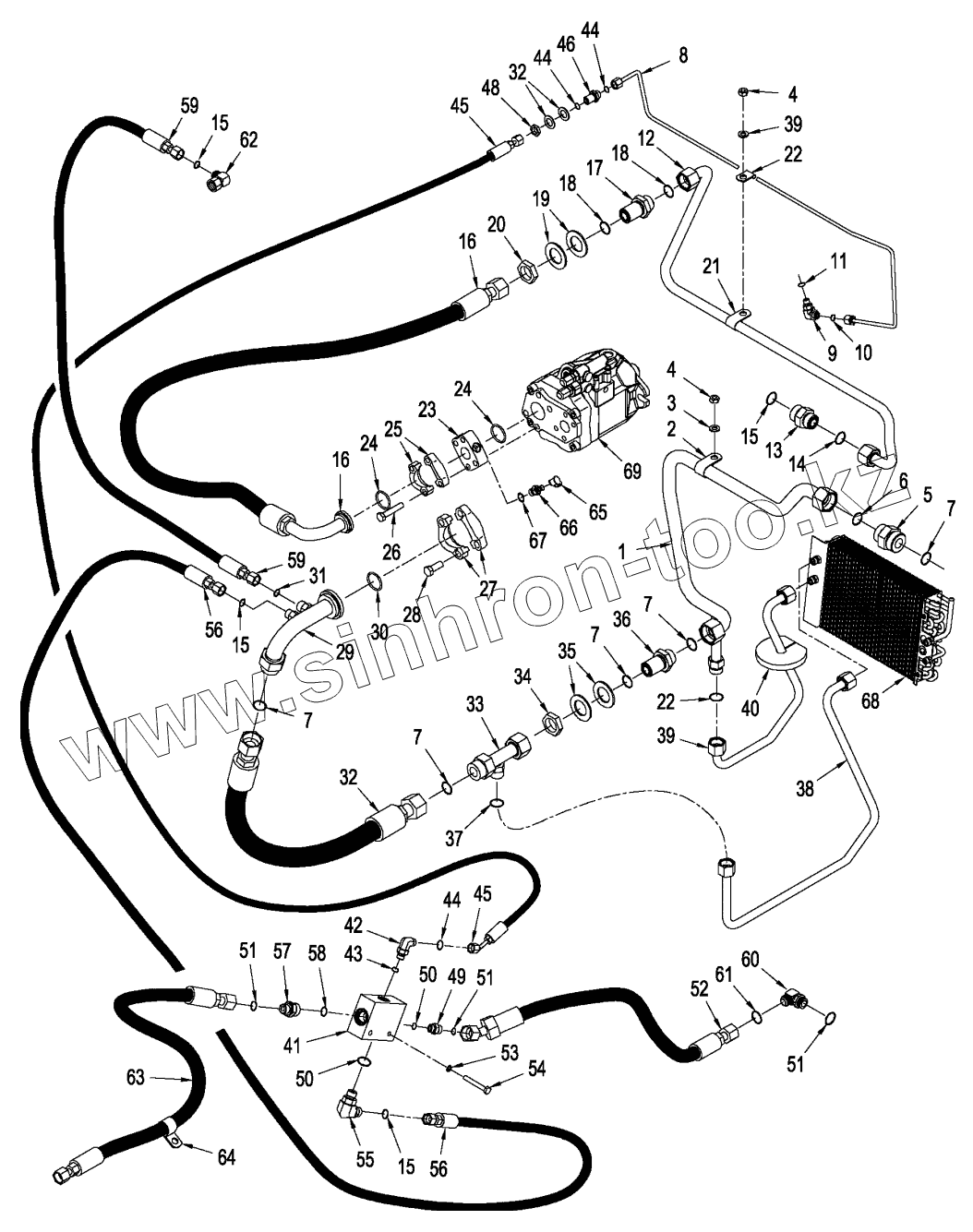

Каталог запасных частей к технике: CASE IH STX-530 Steiger. HYDRAULICS - FAN DRIVE CIRCUITRY, BSN Z6F100996
1
2
3
4
4
5
6
7
7
7
7
7
8
9
10
11
12
13
14
15
15
15
15
16
16
17
18
18
19
20
21
22
22
23
24
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
39
40
41
42
43
44
44
44
45
45
46
48
49
50
50
51
51
51
52
53
54
55
56
56
57
58
59
59
60
61
62
63
64
65
66
67
68
69
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 178889A1 | 178889A1 | FITTING | |
| 1 | 87344565 | TUBE | |
| 2 | 515-25254 | CLAMP | |
| 3 | 895-11010 | WASHER | |
| 4 | 829-1410 | NUT | |
| 5 | 201-122 | CONNECTOR | |
| 6 | 237-6020 | O-RING | |
| 7 | 238-6021 | O-RING | |
| 8 | 87437447 | TUBE ASSY | |
| 9 | 201-303 | ELBOW | |
| 10 | 237-6004 | O-RING | |
| 11 | 238-6011 | O-RING | |
| 12 | 87437445 | TUBE ASSY | |
| 13 | 201-129 | CONNECTOR | |
| 14 | 237-6016 | O-RING | |
| 15 | 238-6012 | O-RING | |
| 16 | 87436044 | HOSE ASSY | |
| 17 | 701-140 | UNION | |
| 18 | 238-6018 | O-RING | |
| 19 | 431806A1 | WASHER | |
| 20 | 701-1249 | NUT | |
| 21 | 515-25190 | CLAMP | |
| 22 | 238-6016 | O-RING | |
| 23 | 87440383 | VALVE BLOCK | |
| 24 | 238-5219 | O-RING | |
| 25 | A12306 | FLANGE | |
| 26 | 827-10055 | BOLT | |
| 27 | A14157 | FLANGE | |
| 28 | 627-12030 | BOLT | |
| 29 | 87440350 | TUBE ASSY | |
| 30 | 238-5225 | O-RING | |
| 31 | 238-6014 | O-RING | |
| 32 | 87440035 | HOSE ASSY | |
| 33 | 433891A1 | TUBE ASSY | |
| 34 | 701-908 | NUT | |
| 35 | 431802A1 | WASHER | |
| 36 | 434004A1 | VALVE | |
| 37 | 238-6016 | O-RING | |
| 38 | 87305670 | TUBE | |
| 39 | 87344569 | TUBE | |
| 40 | 87444087 | SEAL | |
| 41 | 87408680 | BLOCK | |
| 42 | 700-378 | ELBOW | |
| 43 | 637-63113 | O-RING | |
| 44 | 238-6011 | O-RING | |
| 45 | 87440034 | HOSE ASSY | |
| 46 | 701-108 | UNION | |
| 47 | 87307708 | WASHER | |
| 48 | 701-1254 | NUT | |
| 49 | 700-115 | CONNECTOR | |
| 50 | 637-63153 | O-RING | |
| 51 | 238-6016 | O-RING | |
| 52 | 87445153 | HOSE ASSY | |
| 53 | 895-11008 | WASHER | |
| 54 | 827-8060 | BOLT | |
| 55 | 700-345 | ELBOW | |
| 56 | 87437799 | HOSE ASSY | |
| 57 | 700-103 | CONNECTOR | |
| 58 | 637-63193 | O-RING | |
| 59 | 87344506 | HOSE | |
| 60 | 201-306 | ELBOW | |
| 61 | 237-6010 | O-RING | |
| 62 | 701-319 | ELBOW | |
| 63 | 87437797 | HOSE ASSY | |
| 64 | 515-23222 | CLAMP | |
| 65 | H434163 | DUST CAP | |
| 66 | NSS | NOT SERVICED SEPARATELY | |
| 67 | 637-63113 | O-RING | |
| 68 | 87434395 | CONDENSER | |
| 69 | 87434402 | PUMP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
