Каталог запасных частей к технике: CASE IH STX-530 Steiger. BUMPER, STX & STEIGER 480/530

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 430 Steiger 4WD (2010) Axial Flow 2388 (2010) MRX-690 (2012) MX-240 Magnum (2007) MX-255 Magnum (2006) MX-285 Magnum (2007) MX-305 Magnum (2007) Puma-210 (2010) STX-530 Steiger (2010) Жатка-2030 (RIGID) (2010) Жатка-2152 (2010) Культиватор-Tigermate 2 DMI (2010)

Схема > Не выбрано RADIATOR AND HOSES, STX & STEIGER 480/530 RADIATOR MOUNTING AND FAN SHROUD, STX & STEIGER 480/530 HYDRAULIC FAN DRIVE - MOUNTING HYDRAULIC FAN MOTOR ASSY, BSN Z6F100996 HYDRAULIC FAN MOTOR ASSY, ASN Z6F100996 AIR INDUCTION SYSTEM, STX & STEIGER 480/530 AIR CLEANER ASSEMBLY AIR COOLER MOUNTING, STX & STEIGER 480/530 ETHER START SYSTEM BLOCK HEATER ENGINE MOUNTING AND ATTACHING PARTS, STX & STEIGER 480/530 EXHAUST SYSTEM - QUADTRAC TRACTOR, 10" MUFFLER, STX & STEIGER 480/530 EXHAUST SYSTEM - QUADTRAC TRACTOR, 12" MUFFLER, STX & STEIGER 530 EXHAUST SYSTEM - WHEEL TRACTOR, 10" MUFFLER, STX & STEIGER 480/530 EXHAUST SYSTEM - WHEEL TRACTOR, 12" MUFFLER, STX & STEIGER 530 THROTTLE THROTTLE - DECELARATOR CONTROL, ASN Z6F105037 FUEL LINES, STX & STEIGER 480/530 CONTROLS - RIGHT HAND ARMREST CONSOLE CONTROL PANEL - COMPONENTS RADIO AND SPEAKERS INSTRUMENT CLUSTER & ROPS POST CONTROLS WIPER, WINDSHIELD - MOUNTING WINDSHIELD WASHER ALTERNATOR - MOUNTING, STX & STEIGER 480/530 STARTER ASSEMBLY GROUND SPEED SENSOR ALARM - BACK-UP HARNESS - TRANSMISSION, POWER SHIFT HARNESS - ENGINE, STX & STEIGER 480/530 HARNESS - MAIN CAB, DELUXE AND LUXURY CABS HARNESS - CAB ROOF HARNESS - FRONT FRAME HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE, WITHOUT THREE POINT HITCH HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE AND THREE POINT HITCH HARNESS - FRONT CONSOLE HARNESS - ADVANCED FARMING SYSTEMS BATTERIES ELECTRONIC MODULE ASSEMBLY LAMPS - REAR FRAME, H.I.D. LAMPS - REAR FRAME AND FIELD, NORTH AMERICA LAMPS - REAR FRAME AND FIELD, EUROPE HEADLAMPS - NORTH AMERICA HEADLAMPS - EUROPE LAMPS - MARKER LAMPS - SIDE MARKER WARNING LAMP - STROBE WIRING - TWIN FLOW HYDRAULIC CONTROLS TWIN FLOW HYDRAULIC CONTROLS MOUNTING - ADVANCED FARMING SYSTEMS ACCUGUIDE, GPS - MOUNTING ACCUGUIDE - AFS 200 PRO MOUNTING & RELATED PARTS ACCUGUIDE - AFS 600 PRO MOUNTING & RELATED PARTS, ASN Z7F105571 SENSOR - HITCH POSITION HARNESS - ISO IMPLEMENT STEERING WHEEL AND COLUMN TRANSMISSION CONTROL ASSEMBLY, WITH MANUAL SHIFT TRANSMISSION TRANSMISSION CONTROL ASSEMBLY, WITH POWER SHIFT TRANSMISSION STEERING COLUMN ASSEMBLY HYDRAULICS - STEERING CYLINDER ASSEMBLY - ARTICULATION ARTICULATION LOCKS STEERING CONTROL VALVE ACCUGUIDE - HYDRAULIC, STEERING ACCUGUIDE - CYLINDER ASSY., ARTICULATION W/ SENSOR, BSN Z7F105338 ACCUGUIDE - CYLINDER ASSY., ARTICULATION W/ SENSOR, ASN Z7F105338 TRANSMISSION SHIFTER AND THROTTLE CONTROL CLUTCH PEDAL, POWER SHIFT TRANSMISSION WHEELS SINGLE AND DUALS WITH SPACERS WHEELS TRIPLES WITH SPACERS HUB ASSEMBLY MOUNTING TRACKS, QUADTRAC TRACTOR YOKE MOUNTING, QUADTRAC TRACTOR UNDERCARRIAGE - MOUNTING, QUADTRAC TRACTOR AXLE ASSEMBLY - FRONT IDLER, QUADTRAC TRACTOR AXLE ASSEMBLY - REAR IDLER, QUADTRAC TRACTOR AXLE ASSEMBLY - ROLLER SHAFT DRIVE WHEEL, QUADTRAC TRACTOR TRACK TENSIONING, QUADTRAC TRACTOR DRIVE SHAFT - MOUNTING DRIVE SHAFT POWER TAKEOFF - CLUTCH LUBRICATION, WITH MANUAL SHIFT TRANSMISSION POWER TAKEOFF - CLUTCH LUBRICATION, WITH POWER SHIFT TRANSMISSION VALVE ASSEMBLY - POWER TAKE OFF POWER TAKEOFF - LUBRICATION POWER TAKEOFF - DRIVE SHAFT MOUNTING POWER TAKEOFF - DRIVE SHAFT ASSEMBLIES POWER TAKEOFF - SAFETY SHIELDS POWER TAKEOFF - TRANSFER CASE ASSEMBLY POWER TAKEOFF - CLUTCH ASSEMBLY POWER TAKEOFF - INPUT SHAFT ASSEMBLY TRANSMISSION MOUNTING, POWER SHIFT TRANSMISSION TRANSMISSION - LUBRICATION, WITH POWER SHIFT TRANSMISSION POWER SHIFT TRANSMISSION - VALVE AND PUMP MOUNTING POWER SHIFT TRANSMISSION - COVERS AND YOKES POWER SHIFT TRANSMISSION - REAR HOUSING POWER SHIFT TRANSMISSION - HOUSING AND CLUTCHES POWER SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - SECOND SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - THIRD SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - FOURTH SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - FOURTH SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - FIFTH SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - FIFTH SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - REGULATOR VALVE ASSEMBLY POWER SHIFT TRANSMISSION - RANGE SELECTOR VALVE 500 SERIES AXLE ASSEMBLY - FRONT COVER 500 SERIES AXLE ASSEMBLY - REAR COVER 500 SERIES AXLE ASSEMBLY - CENTER AND LEFT-HAND CARRIER, WHEEL TRACTOR 500 SERIES AXLE ASSEMBLY - CENTER AND LEFT-HAND CARRIER, QUADTRAC TRACTOR 500 SERIES AXLE ASSEMBLY - DIFFERENTIAL, WITHOUT DIFFERENTIAL LOCKS 500 SERIES AXLE ASSEMBLY - DIFFERENTIAL, WITH DIFFERENTIAL LOCKS 500 SERIES AXLE ASSEMBLY - BRAKE AND RIGHT-HAND CARRIER 500 SERIES AXLE ASSEMBLY - OFFSET BEARING, QUADTRAC TRACTOR 500 SERIES AXLE ASSEMBLY - FINAL DRIVE, WHEELED TRACTOR 500 SERIES AXLE ASSEMBLY - FINAL DRIVE, QUADTRAC TRACTOR AXLE ASSEMBLY - JET PUMP BRAKE CONTROL BRAKE VALVE ASSY SERIES AXLE - SERVICE BRAKE CIRCUIT, WHEEL TRACTOR 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, WHEEL TRACTOR 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITHOUT DIFFERENTIAL LOCK, WHEEL TRACTOR 500 SERIES AXLE - SERVICE BRAKE CIRCUIT, QUADTRAC TRACTOR 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, QUADTRAC TRACTOR 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITHOUT DIFFERENTIAL LOCK, QUADTRAC TRACTOR VALVE ASSEMBLY - DIFFERENTIAL LOCK HYDRAULIC OIL COOLER, STX & STEIGER 480/530 OIL FILTER - AXLE AND TRANSMISSION OIL FILTER - MAIN HYDRAUIC (BELOW BATTERY) 500 SERIES AXLE HYDRAULICS - LUBRICATION CIRCUIT, WHEEL TRACTOR 500 SERIES AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, WHEEL TRACTO 450/500 SERIES AXLE HYDRAULICS - COOLING CIRCUIT, WHEEL TRACTOR 500 SERIES AXLE HYDRAULICS - LUBRICATION CIRCUIT, QUADTRAC TRACTOR 500 SERIES AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, QUADTRAC TRACTOR 500 SERIES AXLE HYDRAULICS - COOLING CIRCUIT, QUADTRAC TRACTOR REGULATOR VALVE ASSEMBLY PRIORITY/STEERING CONTROL VALVE TOW BLOCK VALVE ASSEMBLY CABLE - TOW VALVE HYDRAULIC TANK, WHEEL TRACTOR HYDRAULIC TANK, QUADTRAC TRACTOR STANDARD HYDRAULICS - PUMP LUBRICATION CIRCUIT, WITH POWER SHIFT TRANSMISSION STANDARD HYDRAULICS - PUMP MOUNTING STANDARD HYDRAULICS - PISTON PUMP ASSEMBLY HIGH OUTPUT HYDRAULICS - PUMP LUBRICATION CIRCUIT, POWER SHIFT TRANSMISSION HIGH OUTPUT HYDRAULICS - PUMP MOUNTING HIGH OUTPUT HYDRAULICS - PISTON PUMP ASSY GEAR PUMP ASSEMBLY HYDRAULIC REMOTE HOSES - ELECTRONIC REMOTE HYDRAULIC REMOTE CONTROL VALVE MANIFOLD VALVE ASSEMBLY REMOTE VALVE ASSEMBLY - ELECTRONIC REMOTE COUPLER VALVE ASSEMBLY MAIN AND AUXILIARY VALVE ASSEMBLY - ELECTRONIC CONTROLLED HITCH VALVE ASSEMBLY - ELECTRONIC CONTROLLED MOTOR RETURN COUPLERS - POWER BEYOND COUPLER MOUNTS - WITHOUT POWER TAKEOFF AND THREE POINT HITCH THREE POINT HITCH HYDRAULICS - ELECTRONIC CONTROLLED HITCH SYSTEM CYLINDER ASSY - THREE POINT HITCH HYDRAULICS - TWIN FLOW CIRCUITRY TWIN FLOW HYDRAULICS - AUXILIARY REMOTE MOUNTING TWIN FLOW HYDRAULIC MANIFOLD ASSY TWIN FLOW HYDRAULIC PUMP ASSY OIL FILTER - TWIN FLOW HYDRAULICS HYDRAULICS - FAN DRIVE CIRCUITRY, BSN Z6F100996 HYDRAULICS - FAN DRIVE CIRCUITRY, ASN Z6F100996 HYDRAULIC FAN PUMP ASSY TRAILER BRAKES - HYDRAULIC VALVE - HYDRAULIC TRAILER BRAKE HYDRAULICS - PARALLEL FLOW CIRCUITRY THREE POINT HITCH ROCKSHAFT THREE POINT HITCH - UPPER LINK, WITHOUT POWER TAKEOFF THREE POINT HITCH - UPPER LINK, WITH POWER TAKEOFF LINK ASSEMBLY - UPPER LINK ASSEMBLY - LIFT DRAWBAR - HEAVY DUTY, WITHOUT THREE POINT HITCH DRAWBAR - HEAVY DUTY, WITH THREE POINT HITCH DRAWBAR - REYNOLDS CAB MOUNTING INTERIOR TRIM - DELUXE AND LUXURY CABS CAB - FLOORMATS AND DOORS DOOR ASSEMBLY CAB - SKIRTS AND GLASS ROOF CAB - HEADLINER AND CONTROL PANEL, DELUXE AND LUXURY CAB CONSOLE - RIGHT-HAND ARMREST, MANUAL CONSOLE - RIGHT HAND ARMREST, ELECTRIC, BSN Z7F105745 FRONT CONSOLE MIRRORS SEAT - NON-INSTRUCTIONAL SEAT - INSTRUCTIONAL SEAT - OPERATORS SEAT - CUSHION ASSEMBLY SUSPENSION ASSEMBLY - SEAT POSITIVE RESPONSE SUSPENSION ASSEMBLY - SEAT FRONT FRAME, WHEEL TRACTOR, STX & STEIGER 480/530 BATTERY DOOR ASSEMBLY, WHEEL TRACTOR FRONT FRAME, QUADTRAC TRACTOR, STX & STEIGER 480/530 BATTERY DOOR ASSEMBLY, QUADTRAC TRACTOR STEPS, QUADTRAC TRACTOR PUSH ARM ASSEMBLY BUMPER, STX & STEIGER 480/530 GRILLE HOOD AND SUPPORT, STX & STEIGER 480/530 HOOD - LIFT ARM CENTER LINK REAR FRAME, QUADTRAC TRACTOR REAR FRAME, WHEEL TRACTOR HEATER - HOSES, STX & STEIGER 480/530 AIR CONDITIONING SYSTEM, STX & STEIGER 480/530 AIR CONDITIONING - DUCTS AIR CONDITIONING - AIR FILTER HOUSING ASSEMBLY AIR CONDITIONING - BLOWER ASSEMBLY AIR CONDITIONING - CLIMATE CONTROL UNIT, WITH AUTO TEMP CONTROL MONITOR MOUNTING STORAGE BOX WEIGHTS - FRONT FRAME WEIGHTS - REAR FRAME WEIGHTS - WHEEL TOW CABLE FIRE EXTINGUISHER DECALS, HOOD, BSN Z6F105001 DECALS DECALS DECALS

1

2

2

3

4

5

6

7

7

7

7

8

8

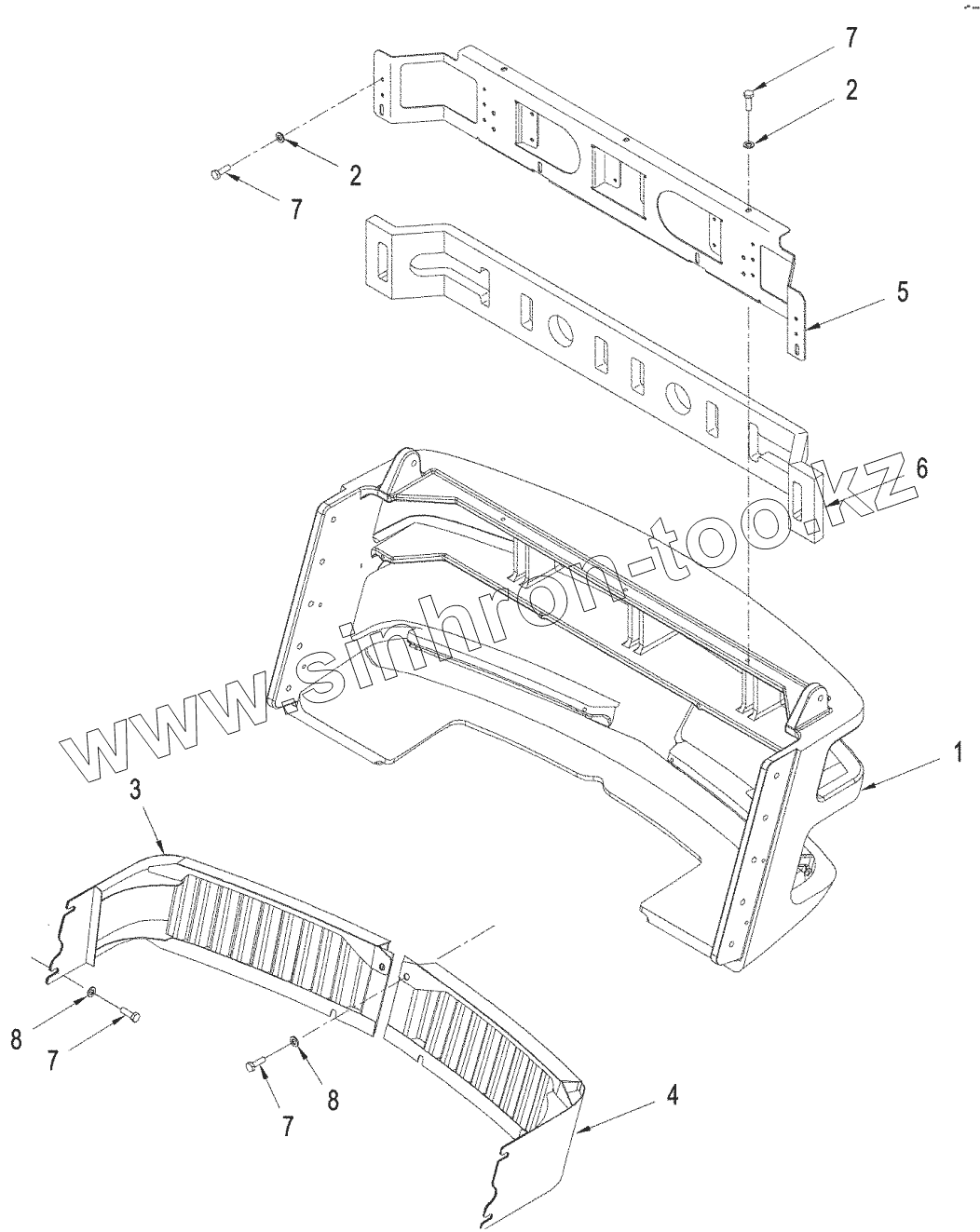

Позиция на иллюстрации	Заводской номер детали		Название детали
1	87425350		BUMPER
2	895-11008		WASHER
3	87425347		GRILLE
4	87425346		GRILLE
5	87425344		BRACKET
6	87436023		SEAL
7	627-8025		BOLT
8	895-15008		WASHER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
