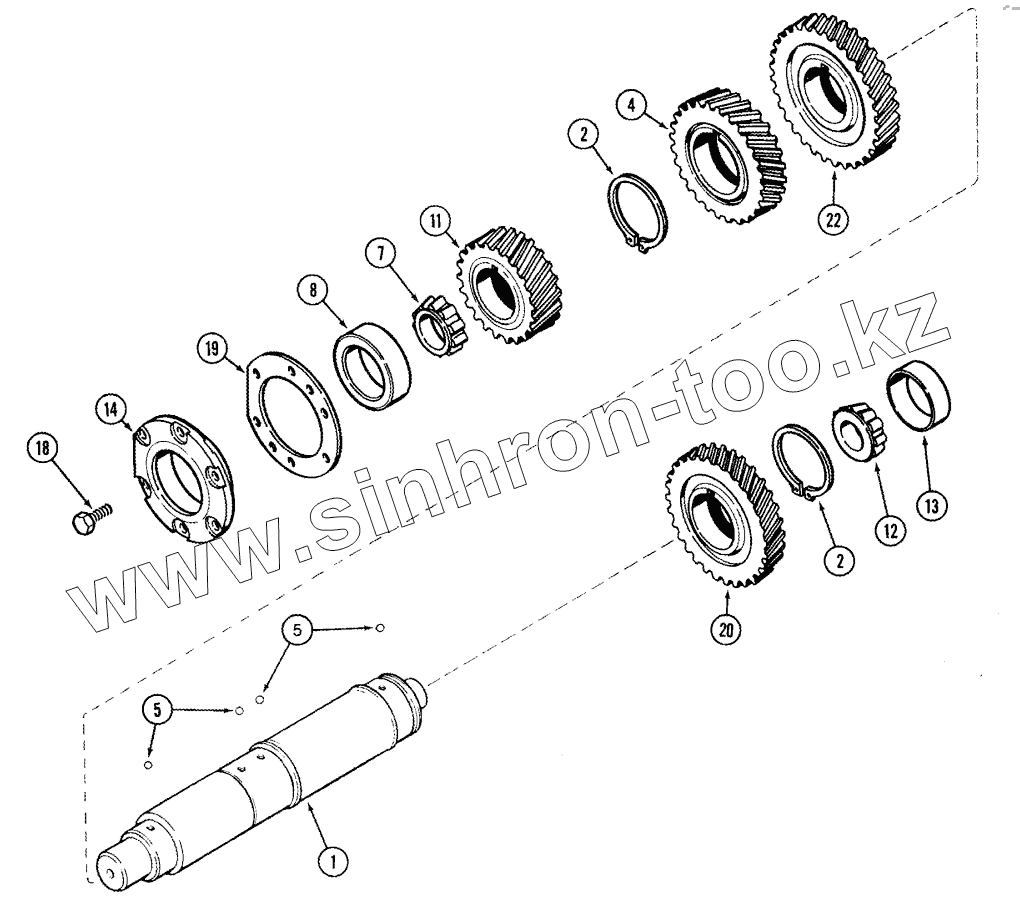

Каталог запасных частей к технике: CASE IH MX-285 Magnum. SPEED TRANSMISSION - COUNTERSHAFT WITHOUT CREEP SPEED

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 430 Steiger 4WD (2010) Axial Flow 2388 (2010) MRX-690 (2012) MX-240 Magnum (2007) MX-255 Magnum (2006) MX-285 Magnum (2007) MX-305 Magnum (2007) Puma-210 (2010) STX-530 Steiger (2010) Жатка-2030 (RIGID) (2010) Жатка-2152 (2010) Культиватор-Tigermate 2 DMI (2010)

Схема > Не выбрано RADIATOR AND FAN SHROUD RADIATOR ASSEMBLY DEAERATION SYSTEM AIR INDUCTION SYSTEM - STANDARD DUTY AIR INDUCTION SYSTEM - SEVERE DUTY AFTERCOOLER ETHER START SYSTEM EXHAUST SYSTEM ENGINE MOUNTING FLYWHEEL SHIELDS WATER PUMP SYSTEM, MX255 AND MX285 FRONT GEAR COVER, MX255 AND MX285 MANIFOLDS, MX255 AND MX285 TURBOCHARGER SYSTEM, MX255 AND MX285 TURBOCHARGER ASSEMBLY, MX255 AND MX285 WASTEGATE ACTUATOR, MX255 AND MX285 FILTER AND COOLER - OIL, MX255 AND MX285 OIL PUMP AND OIL PAN CYLINDER HEAD - COVER, MX255 AND MX285 CYLINDER HEAD - VALVE MECHANISM, MX255 AND MX285 THERMOSTAT - FILTER, WATER CRANKCASE, BREATHER, MX255 AND MX285 CAMSHAFT, MX255 AND MX285 CYLINDER BLOCK, MX255 AND MX285 KIT ENGINE OVERHAUL, MX255 AND MX285 CRANKSHAFT FLYWHEEL PISTONS - CONNECTING RODS, MX255 AND MX285 GASKET KIT - VALVE GRIND, MX255 AND MX285 GASKET KIT - CYLINDER BLOCK, MX255 AND MX285 GASKET KIT - BASIC SERVICE ENGINE, MX255 AND MX285 FUEL INJECTION SYSTEM, MX255 AND MX285 PUMP, FUEL TRANSFER, MX255 AND MX285 FUEL FILTER AND CONNECTIONS, MX255 AND MX285 FUEL INJECTION PUMP, MX255 AND MX285 FUEL INJECTION PUMP, MX255 AND MX285 FUEL INJECTION PUMP, MX255 AND MX285 FUEL INJECTION PUMP, MX255 AND MX285 FUEL INJECTION PUMP, MX255 AND MX285 FUEL INJECTION PUMP - GEAR AND MOUNTING BRACKETS, MX255 AND MX285 FUEL INJECTION - NOZZLE , MX255 AND MX285 HAND THROTTLE, MX255 AND MX285 FOOT THROTTLE, MX255 AND MX285 FUEL TANKS FUEL LINES WITH INLINE FILTER, MX255 AND MX285 FUEL LINES WITH SEPARATOR FILTER, MX255 AND MX285 FUEL SEPARATOR FILTER HARNESS - ENGINE, MX255 AND MX285 POWER DISTRIBUTION MODULE, ENGINE CONTROL, MX255 AND MX285 HARNESS - CHASSIS HARNESS - REMOTE HYDRAULIC VALVE HARNESS - CAB HARNESS - CAB ROOF, SHELF AND CD CHANGER HARNESS - SUSPENDED AXLE ELECTRICAL COMPONENT MOUNTING ELECTRICAL COMPONENT MOUNTING - FUSES A-POST COVER - INSTRUMENT CLUSTER, BSN JAZ137282 A-POST COVER - INSTRUMENT CLUSTER, ASN JAZ137282 CONTROLS - FRONT CONSOLE CONTROLS - RIGHT HAND CONSOLE CONTROLS - RIGHT FENDER CONSOLE, WITHOUT ATC CONTROLS - RIGHT FENDER CONSOLE, WITH ATC ALTERNATOR - MOUNTING, BSN JAZ135316 ALTERNATOR - MOUNTING, ASN JAZ135316 ALTERNATOR ASSEMBLY - 135 AMPERE STARTER - MOUNTING STARTER ASSEMBLY SOLENOID - STARTER BATTERY, BATTERY BOX AND CABLES WINDSHIELD WIPER ASSEMBLY - FRONT AND REAR WINDSHIELD WASHER FRONT AND REAR HEADLAMPS HEADLAMPS - AUXILIARY ISO 11783 HARNESS AND MONITOR LAMPS - WIDE TRANSPORT, FIXED LAMPS - WIDE TRANSPORT, ADJUSTABLE LAMPS - FRONT POSITION AND WORK LAMPS - CAB ROOF LAMPS - REAR FENDER AND REMOTE HITCH SWITCH WORK LAMPS - ROOF AND REAR FENDERS LAMP - BEACON RADIOS, SPEAKERS AND ANTENNAS GROUND SPEED SENSOR IMPLEMENT CONNECTORS AND MOUNTING ACCUGUIDE RADIO AND ANTENNA STEERING WHEEL AND COLUMN STEERING COLUMN ASSEMBLY STEERING SYSTEM - MFD, BSN JAZ126070 STEERING SYSTEM - MFD, ASN JAZ126070 HYDRAULIC SYSTEM - MFD DIFFERENTIAL LOCK HYDRAULIC SYSTEM - SUSPENDED MFD AXLE, BSN JAZ135174 HYDRAULIC SYSTEM - SUSPENDED MFD AXLE, ASN JAZ135174 VALVE ASSY - SUSPENDED MFD AXLE, BSN JAZ135174 VALVE ASSY - SUSPENDED MFD AXLE, ASN JAZ135174 FRONT AXLE - MOUNTING, MFD FRONT AXLE - SUSPENSION, SUSPENDED MFD MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 10 BOLT HUB, WITHOUT DIFFERENTIAL LOCK, BSN MY00181734 MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 10 BOLT HUB, WITHOUT DIFFERENTIAL LOCK, ASN MY00193724 MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK, BSN MY00184570 MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK, ASN MY00195744 MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 10 BOLT HUB, WITH DIFFERENTIAL LOCK, BSN MY00164725 MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 10 BOLT HUB, WITH DIFFERENTIAL LOCK, ASN MY00195879 MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 12 BOLT HUB, WITH DIFFERENTIAL LOCK, BSN MY00182905 MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 12 BOLT HUB, WITH DIFFERENTIAL LOCK, ASN MY00193740 FRONT AXLE KING PIN WITH ACCUGUIDE MFD AXLE HOUSING ASSEMBLY - SUSPENDED WITH 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK, BSN MY00136378 MFD AXLE HOUSING ASSEMBLY - SUSPENDED WITH 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK, ASN MY00195684 MFD AXLE HOUSING ASSEMBLY - SUSPENDED WITH 10 BOLT HUB, WITH DIFFERENTIAL LOCK, BSN MY00182861 MFD AXLE HOUSING ASSEMBLY - SUSPENDED WITH 10 BOLT HUB, WITH DIFFERENTIAL LOCK, ASN MY00183034 MFD AXLE HOUSING ASSEMBLY - SUSPENDED WITH 12 BOLT HUB, WITH DIFFERENTIAL LOCK, BSN MY00178966 MFD AXLE HOUSING ASSEMBLY - SUSPENDED WITH 12 BOLT HUB, WITH DIFFERENTIAL LOCK, ASN MY00184588 FRONT AXLE DRIVE SHAFT - MFD, WITHOUT DIFFERENTIAL LOCK FRONT AXLE DRIVE SHAFT - MFD, WITH DIFFERENTIAL LOCK, BSN FRONT AXLE DRIVE SHAFT - MFD, WITH DIFFERENTIAL LOCK, ASN CARRIER AND DIFFERENTIAL - MFD, 10 BOLT HUB, WITHOUT DIFFERENTIAL LOCK, BSN CARRIER AND DIFFERENTIAL - MFD, 10 BOLT HUB, WITHOUT DIFFERENTIAL LOCK, ASN CARRIER AND DIFFERENTIAL - MFD, 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK, BSN CARRIER AND DIFFERENTIAL - MFD, 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK, ASN CARRIER AND DIFFERENTIAL - MFD, 10 BOLT HUB, WITH DIFFERENTIAL LOCK, BSN CARRIER AND DIFFERENTIAL - MFD, 10 BOLT HUB, WITH DIFFERENTIAL LOCK, ASN CARRIER AND DIFFERENTIAL - MFD, 12 BOLT HUB, WITH DIFFERENTIAL LOCK, BSN CARRIER AND DIFFERENTIAL - MFD, 12 BOLT HUB, WITH DIFFERENTIAL LOCK, ASN FRONT AXLE PLANETARIES AND HUB - MFD, 10 BOLT HUB FRONT AXLE PLANETARIES AND HUB - MFD, 12 BOLT HUB STEERING CYLINDER ASSEMBLY - MFD, 10 BOLT HUB, BSN STEERING CYLINDER ASSEMBLY - MFD, 10 BOLT HUB, ASN STEERING CYLINDER ASSEMBLY - MFD, 12 BOLT HUB, BSN STEERING CYLINDER ASSEMBLY - MFD, 12 BOLT HUB, ASN FRONT WHEELS - MFD, 10 BOLT HUB FRONT WHEELS - MFD, 12 BOLT HUB SPACER - DUAL FRONT WHEELS TRANSMISSION DRIVE SHAFT TRANSMISSION DROP BOX SPEED TRANSMISSION - HOUSING, TRANSMISSION BSN AJB0355338 SPEED TRANSMISSION - HOUSING, TRANSMISSION SN BTW AJB0355338 & AJB0355923 SPEED TRANSMISSION - HOUSING, TRANSMISSION ASN AJB0355923 PLATE ASSEMBLY - VALVE MOUNTING, LEFT HAND SIDE PLATE ASSEMBLY - VALVE MOUNTING, TOP SPEED TRANSMISSION - INPUT SHAFT WITHOUT CREEP SPEED, TRANSMISSION BSN AJB0361241 SPEED TRANSMISSION - INPUT SHAFT WITHOUT CREEP SPEED, TRANSMISSION ASN AJB0361241 SPEED TRANSMISSION - INPUT SHAFT WITH CREEP SPEED, TRANSMISSION BSN AJB0361241 SPEED TRANSMISSION - INPUT SHAFT WITH CREEP SPEED, TRANSMISSION ASN AJB0361241 SPEED TRANSMISSION - COUNTERSHAFT WITHOUT CREEP SPEED SPEED TRANSMISSION - COUNTERSHAFT WITH CREEP SPEED SPEED TRANSMISSION - OUTPUT SHAFT FRONT CLUTCH, TRANSMISSION BSN AJB0361241 SPEED TRANSMISSION - OUTPUT SHAFT FRONT CLUTCH, TRANSMISSION ASN AJB0361241 SPEED TRANSMISSION - OUTPUT SHAFT REAR CLUTCH, TRANSMISSION BSN AJB0361241 SPEED TRANSMISSION - OUTPUT SHAFT REAR CLUTCH, TRANSMISSION ASN AJB0361241 RANGE TRANSMISSION - HOUSING, TRANSMISSION BSN AJB0355338 RANGE TRANSMISSION - HOUSING, TRANSMISSION SN BTW AJB0355338 & AJB0355923 RANGE TRANSMISSION - HOUSING, TRANSMISSION ASN AJB0355923 VALVE ASSY - INCHING RANGE TRANSMISSION - INPUT SHAFT, TRANSMISSION BSN AJB0361241 RANGE TRANSMISSION - INPUT SHAFT, TRANSMISSION ASN AJB0361241 RANGE TRANSMISSION - MASTER CLUTCH RANGE TRANSMISSION - COUNTERSHAFT TRANSMISSION - PINION SHAFT AND GEARS TRANSMISSION - DIFFERENTIAL RANGE TRANSMISSION - MFD CLUTCH MFD AXLE - DRIVE SHAFT TRANSMISSION CONTROL VALVE LOCATION VALVE ASSEMBLY - TRANSMISSION CONTROL (450729A2) VALVE ASSEMBLY - TRANSMISSION CONTROL (450721A2) VALVE ASSEMBLY - TRANSMISSION CONTROL (450726A2) VALVE ASSEMBLY - TRANSMISSION CONTROL (450728A2) PEDAL - INCHING LEVER ASSEMBLY - TRANSMISSION CONTROL REAR AXLE - HOUSING BREATHER - TRANSMISSION REAR AXLE - PLANETARY, MX285 REAR AXLE - 4 X 98 INCH, MX255 AND MX285 TRANSMISSION - PUMP DRIVE POWER TAKE OFF ASSEMBLY - INPUT SHAFT, TRANSMISSION BSN AJB0356850 POWER TAKE OFF ASSEMBLY - INPUT SHAFT, TRANSMISSION ASN AJB0356850 POWER TAKE OFF ASSEMBLY - REDUCTION GEAR, DUAL SPEED POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT, DUAL SPEED POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT, SINGLE SPEED - TRANSMISSION BSN AJB0356850 POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT, SINGLE SPEED, TRANSMISSION ASN AJB0356850 POWER TAKE OFF ASSEMBLY - SHIELDS SOLID STEEL REAR WHEELS HUB ASSEMBLY - REAR WHEEL SPACER - DUAL REAR WHEELS REAR WHEEL WEIGHTS BRAKES - PEDAL BRAKE BRAKES - HYDRAULIC SYSTEM, WITHOUT TRAILER BRAKES BRAKES - HYDRAULIC SYSTEM, WITH HYDRAULIC TRAILER BRAKES BRAKES - HYDRAULIC SYSTEM, WITH PNEUMATIC TRAILER BRAKES BRAKES - CONTROL VALVE BRAKES - DIFFERENTIAL PARK AND EMERGENCY BRAKE - LEVER AND LINKAGE PARK AND EMERGENCY BRAKE - HYDRAULIC SYSTEM PARK AND EMERGENCY BRAKE - VALVE ASSEMBLY PARK AND EMERGENCY BRAKE - BRAKE ASSEMBLY PARK BRAKE - RELEASE, BSN AJB035592 PARK BRAKE - RELEASE, ASN AJB0355923 TRAILER BRAKES - HYDRAULIC, EXCEPT ITALY TRAILER BRAKES - HYDRAULIC, ITALY ONLY TRAILER BRAKES - PNEUMATIC, AIR COMPRESSOR MOUNTING AND DRIVE TRAILER BRAKES - PNEUMATIC, RESERVOIR, EXCEPT ITALY TRAILER BRAKES - PNEUMATIC, RESERVOIR, ITALY ONLY TRAILER BRAKES - PNEUMATIC, VALVES TRAILER BRAKES - PNEUMATIC, COUPLERS, EXCEPT ITALY TRAILER BRAKES - PNEUMATIC, COUPLERS, ITALY ONLY HYDRAULIC SYSTEM - OIL COOLER HYDRAULIC SYSTEM - 3RD OIL COOLER HYDRAULIC SYSTEM - CHARGE PUMP HYDRAULIC SYSTEM - PISTON PUMP AND FILTER, STANDARD FLOW CAPACITY HYDRAULIC SYSTEM - PISTON PUMP AND FILTER, HIGH FLOW CAPACITY HYDRAULIC SYSTEM - REGULATED PRESSURE HYDRAULIC SYSTEM - CREEP SPEED HYDRAULIC SYSTEM - TRANSMISSION LUBE HYDRAULIC SYSTEM - HITCH HYDRAULIC TOP LINK - HITCH HYDRAULIC LIFT LINK - HITCH, RIGHT HAND HYDRAULIC SYSTEM - FRONT HITCH HYDRAULIC SYSTEM - PTO/DIFFERENTIAL LOCK VALVE HYDRAULIC SYSTEM - REMOTE COUPLERS HYDRAULIC SYSTEM - POWER BEYOND HYDRAULIC SYSTEM - MOTOR RETURN PRIORITY AND REGULATOR VALVE ASSEMBLY PTO AND DIFFERENTIAL LOCK VALVE ASSEMBLY REMOTE HYDRAULIC VALVE STACK MANIFOLD VALVE ASSEMBLY REMOTE HYDRAULIC CONTROL VALVE HITCH VALVE ASSEMBLY - BSN AJB0362561 HITCH VALVE ASSEMBLY - ASN AJB0362562 REMOTE HYDRAULIC COUPLING MOUNTING REMOTE HYDRAULIC COUPLINGS CYLINDER ASSEMBLY - HITCH (88.9 MM) CYLINDER ASSEMBLY - HITCH (90 MM) CYLINDER ASSEMBLY - HITCH (95 MM) CYLINDER ASSEMBLY - HITCH (105 MM) - MX255, MX285 POWER BEYOND VALVE ASSEMBLY FRONT FRAME FRONT TOW CLEVIS FRONT WEIGHTS FRONT WEIGHTS FRONT HITCH FENDERS - FRONT, NARROW FENDERS - FRONT, WIDE FENDERS - REAR FENDERS - REAR, EXTRA WIDE HOOD TILTING FRONT NUMBER PLATE FAN SHIELDS HOOD FIXED CAB - MOUNTING AND FRAME, BSN AJB0355923 CAB - MOUNTING AND FRAME, ASN AJB0355923 CAB - ROOF CAB - EXTERIOR TRIM CAB - STEPS CAB - FRONT WINDOW STEP CAB - DOOR CAB - REAR WINDOW CAB - FIXED GLASS MIRRORS - BSN Z7RZ01152 MIRRORS - ASN Z7RZ01152 CAB - HEADLINER, STANDARD TRIM CAB - HEADLINER, DELUXE AND LUXURY TRIM CAB - FLOOR MAT AND INSULATION CAB - TRIM, FENDERS CAB - TRIM, CAB POSTS CAB - INSTRUMENT PANEL SEAT ASSEMBLY CASE IH MAGNUM TRACTOR (EUROPE) CUSHION ASSEMBLY - SEAT CUSHION ASSEMBLY - SEAT SUSPENSION ASSEMBLY - SEAT SUSPENSION ASSEMBLY - SEAT POSITIVE RESPONSE SUSPENSION ASSEMBLY - SEAT POSITIVE RESPONSE SUSPENSION ASSEMBLY - SEAT SEAT - INSTRUCTIONAL CONSOLE, RIGHT HAND, STANDARD CAB ONSOLE, RIGHT HAND, DELUXE AND LUXURY CAB MONITOR MOUNTING - CAB ROOF MONITOR MOUNTING - CAB A POST AIR CONDITIONING - COMPRESSOR MOUNTING AIR CONDITIONING - CONDENSER HEATER SYSTEM AIR CONDITIONING - CLIMATE CONTROL UNIT, WITHOUT AUTO TEMP CONTROL AIR CONDITIONING - CLIMATE CONTROL UNIT, WITH AUTO TEMP CONTROL AIR CONDITIONING - AIR FILTER AIR CONDITIONING - DUCTS CAB - INSULATION DRAWBAR AND HAMMERSTRAP DRAWBAR AND HAMMERSTRAP - HIGH CAPACITY DRAWBAR AND HAMMERSTRAP - ITALY ONLY HITCH - SUPPORTS AND ROCKSHAFT HITCH - TOP LINK CYLINDER ASSEMBLY - HYDRAULIC TOP LINK - HITCH HITCH - LIFT LINKS CYLINDER ASSEMBLY - HYDRAULIC LIFT LINK - HITCH, RIGHT HAND HITCH - LOWER LIFT LINKS HITCH - SWAY LIMITER HITCH - POSITION SENSOR HITCH - DRAFT CONTROL PINS TRAILER HITCH - MANUAL PIN, FRANCE ONLY (CRAMER) TRAILER HITCH - MANUAL PIN, FRANCE ONLY (CBM) TRAILER HITCH - AUTO CLEVIS, GERMANY ONLY (CRAMER) TRAILER HITCH - AUTO CLEVIS, 32MM, GERMANY ONLY (CRAMER) TRAILER HITCH - AUTO CLEVIS, 38 MM, GERMANY ONLY (CBM) BSN Z7RZ05509 TRAILER HITCH - AUTO CLEVIS, 38 MM, GERMANY ONLY (CBM) ASN Z7RZ05509 TRAILER HITCH - MANUAL PIN, ITALY ONLY (CBM) DECALS DECALS DECALS

1

2

2

4

5

5

7

8

11

12

13

14

18

19

20

22

Позиция на иллюстрации	Заводской номер детали		Название детали
1	1342253C2		SHAFT
2	100-11293		RING
4	1285983C1		GEAR
5	211-1012		BALL
7	ST791		BEARING
8	ST951		BEARING
11	1285981C1		PINION
12	ST2051		BEARING
13	ST863		BEARING
14	1286000C3		CAGE
18	613-10025		BOLT
19	120647C2		SHIM
19	120648C2		SHIM
19	120649C2		SHIM
19	120650C2		SHIM
19	120651C2		SHIM
20	1285989C1		PINION
22	1285986C1		PINION

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
