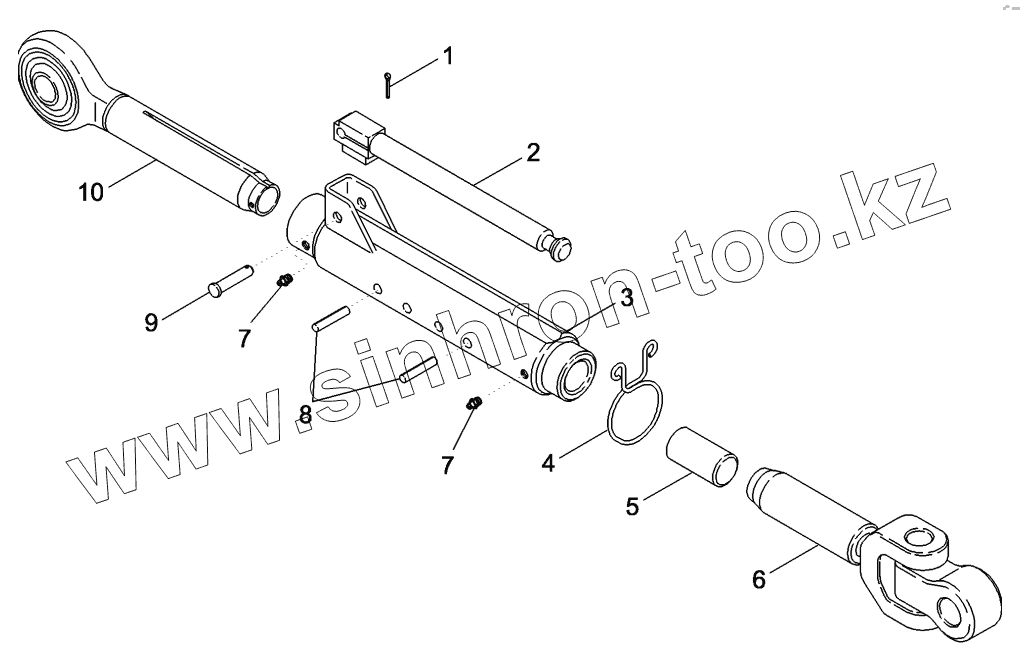

Каталог запасных частей к технике: CASE IH MX-255 Magnum. HITCH - TOP LINK BALL END

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 430 Steiger 4WD (2010) Axial Flow 2388 (2010) MRX-690 (2012) MX-240 Magnum (2007) MX-255 Magnum (2006) MX-285 Magnum (2007) MX-305 Magnum (2007) Puma-210 (2010) STX-530 Steiger (2010) Жатка-2030 (RIGID) (2010) Жатка-2152 (2010) Культиватор-Tigermate 2 DMI (2010)

Схема > Не выбрано RADIATOR AND FAN SHROUD RADIATOR ASSEMBLY DEAERATION SYSTEM AIR INDUCTION SYSTEM - STANDARD DUTY AFTERCOOLER ETHER START SYSTEM EXHAUST SYSTEM ENGINE MOUNTING FLYWHEEL SHIELDS WATER PUMP SYSTEM FRONT GEAR COVER MANIFOLDS TURBOCHARGER SYSTEM TURBOCHARGER ASSEMBLY WASTEGATE ACTUATOR FILTER AND COOLER - OIL OIL PUMP AND OIL PAN CYLINDER HEAD - COVER CYLINDER HEAD - VALVE MECHANISM THERMOSTAT - FILTER, WATER CAMSHAFT CYLINDER BLOCK KIT ENGINE OVERHAUL CRANKSHAFT FLYWHEEL PISTONS - CONNECTING RODS GASKET KIT - VALVE GRIND GASKET KIT - CYLINDER BLOCK GASKET KIT - BASIC SERVICE ENGINE FUEL INJECTION SYSTEM ANEROID AND WASTEGATE SYSTEM FUEL FILTER - PUMP, TRANSFER FUEL INJECTION - PUMP AND DRIVE FUEL INJECTION - NOZZLE HAND THROTTLE FOOT THROTTLE FUEL TANKS FUEL LINES FUEL SEPARATOR FILTER HARNESS - ENGINE POWER DISTRIBUTION MODULES- CHASSIS HARNESS-CHASSIS SOLENOID AND CABLES - GRID HEATER HARNESS - REMOTE HYDRAULIC VALVE HARNESS - CAB HARNESS - CAB ROOF, SHELF AND CD CHANGER ELECTRICAL COMPONENT MOUNTING ELECTRICAL COMPONENT MOUNTING - FUSES A-POST COVER - INSTRUMENT CLUSTER CONTROLS - FRONT CONSOLE CONTROLS - RIGHT HAND CONSOLE CONTROLS - RIGHT FENDER CONSOLE, WITHOUT ATC CONTROLS - RIGHT FENDER CONSOLE, WITH ATC ALTERNATOR - MOUNTING STARTER - MOUNTING SOLENOID - STARTER BATTERY, BATTERY BOX AND CABLES WINDSHIELD WIPER ASSEMBLY - FRONT AND REAR RIGHT HAND WINDOW WIPER WINDSHIELD WASHER - FRONT AND REAR HEADLAMPS LAMPS - WIDE TRANSPORT, ADJUSTABLE LAMPS - FRONT WORK LAMPS - CAB ROOF LAMPS - REAR FENDER AND REMOTE HITCH SWITCH WORK LAMPS - ROOF AND REAR FENDERS C-POST ROOF LIGHTS LAMP - BEACON RADIOS, SPEAKERS AND ANTENNAS GROUND SPEED SENSOR IMPLEMENT CONNECTORS AND MOUNTING MODULE, TRACTOR MULTIFUNCTION ISO 11783 HARNESS AND MONITOR MONITOR - ACCUGUIDE REMOTE DATA LOGGER ACCUGUIDE CONTROL MODULE AND MOUNTING ACCUGUIDE HARNESSES ACCUGUIDE RADIO AND ANTENNA ACCUGUIDE BASE STATION STEERING WHEEL AND COLUMN STEERING COLUMN ASSEMBLY STEERING SYSTEM - MFD FRONT AXLE - MOUNTING, MFD MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 10 BOLT HUB, WITHOUT DIFFERENTIAL LOCK MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK FRONT AXLE DRIVE SHAFT - MFD, WITHOUT DIFFERENTIAL LOCK CARRIER AND DIFFERENTIAL - MFD, 10 BOLT HUB, WITHOUT DIFFERENTIAL LOCK CARRIER AND DIFFERENTIAL - MFD, 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK FRONT AXLE PLANETARIES AND HUB - MFD, 10 BOLT HUB FRONT AXLE PLANETARIES AND HUB - MFD, 12 BOLT HUB STEERING CYLINDER ASSEMBLY - MFD, 10 BOLT HUB STEERING CYLINDER ASSEMBLY - MFD, 12 BOLT HUB FRONT WHEELS - MFD, 10 BOLT HUB FRONT WHEELS - MFD, 12 BOLT HUB SPACER - DUAL FRONT WHEELS TRANSMISSION DRIVE SHAFT TRANSMISSION DROP BOX SPEED TRANSMISSION - HOUSING PLATE ASSEMBLY - VALVE MOUNTING, LEFT HAND SIDE PLATE ASSEMBLY - VALVE MOUNTING, TOP SPEED TRANSMISSION - INPUT SHAFT WITHOUT CREEP OR 19 SPEED SPEED TRANSMISSION - INPUT SHAFT WITH CREEP/19 SPEED OR 50 KPH TRANSMISSION SPEED TRANSMISSION - COUNTERSHAFT WITHOUT CREEP OR 19 SPEED SPEED TRANSMISSION - COUNTERSHAFT WITH CREEP/19 SPEED OR 50 KPH TRANSMISSION SPEED TRANSMISSION - OUTPUT SHAFT FRONT CLUTCH SPEED TRANSMISSION - OUTPUT SHAFT REAR CLUTCH RANGE TRANSMISSION - HOUSING VALVE ASSY - INCHING RANGE TRANSMISSION - INPUT SHAFT RANGE TRANSMISSION - MASTER CLUTCH RANGE TRANSMISSION - COUNTERSHAFT TRANSMISSION - PINION SHAFT AND GEARS TRANSMISSION - DIFFERENTIAL RANGE TRANSMISSION - MFD CLUTCH AND PARK BRAKE - TRANSMISSION BSN AJB367211 RANGE TRANSMISSION - MFD CLUTCH AND PARK BRAKE - TRANSMISSION ASN AJB367211 MFD AXLE - DRIVE SHAFT TRANSMISSION CONTROL VALVE LOCATION VALVE ASSEMBLY - TRANSMISSION CONTROL (450729A2) VALVE ASSEMBLY - TRANSMISSION CONTROL (450724A2) VALVE ASSEMBLY - TRANSMISSION CONTROL (450728A2) VALVE ASSEMBLY - TRANSMISSION CONTROL (87323842) PEDAL - INCHING LEVER ASSEMBLY - TRANSMISSION CONTROL REAR AXLE - HOUSING REAR AXLE - PLANETARY REAR AXLE - 4 X 98 INCH REAR AXLE - 4 X 120 INCH TRANSMISSION - PUMP DRIVE POWER TAKE OFF ASSEMBLY - INPUT SHAFT POWER TAKE OFF ASSEMBLY - REDUCTION GEAR, DUAL SPEED POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT, DUAL SPEED POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT, SINGLE SPEED POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT, SINGLE SPEED REVERSIBLE SHAFT POWER TAKE OFF ASSEMBLY - SHIELDS SOLID STEEL REAR WHEELS HUB ASSEMBLY - REAR WHEEL SPACER - DUAL REAR WHEELS REAR WHEEL WEIGHTS BRAKES - PEDAL BRAKE BRAKES - HYDRAULIC SYSTEM, WITHOUT TRAILER BRAKES BRAKES - HYDRAULIC SYSTEM, WITH PNEUMATIC TRAILER BRAKES BRAKES - CONTROL VALVE BRAKES - DIFFERENTIAL PARK BRAKE - HYDRAULIC SYSTEM PARK AND EMERGENCY BRAKE - LEVER AND LINKAGE PARK BRAKE - RELEASE TRAILER BRAKES - PNEUMATIC, AIR COMPRESSOR MOUNTING AND DRIVE TRAILER BRAKES - PNEUMATIC, RESERVOIR TRAILER BRAKES - PNEUMATIC, VALVES TRAILER BRAKES - PNEUMATIC, COUPLERS TRAILER BRAKES - PNEUMATIC, HAND CONTROL VALVE HYDRAULIC SYSTEM - OIL COOLER STANDARD PERFORMANCE HYDRAULIC SYSTEM - CHARGE PUMP HYDRAULIC SYSTEM - PISTON PUMP AND FILTER, STANDARD FLOW CAPACITY HYDRAULIC SYSTEM - REGULATED PRESSURE HYDRAULIC SYSTEM - CREEP SPEED OR 50 KPH TRANSMISSION HYDRAULIC SYSTEM - TRANSMISSION LUBE HYDRAULIC SYSTEM - HITCH HYDRAULIC TOP LINK - HITCH, SHORT ARMS HYDRAULIC TOP LINK - HITCH, LONG ARMS HYDRAULIC LIFT LINK - HITCH, RIGHT HAND HYDRAULIC SYSTEM - PTO/DIFFERENTIAL LOCK VALVE HYDRAULIC SYSTEM - REMOTE COUPLERS HYDRAULIC SYSTEM - COUPLER SPILLAGE HYDRAULIC SYSTEM - POWER BEYOND HYDRAULIC SYSTEM - MOTOR RETURN PRIORITY AND REGULATOR VALVE ASSEMBLY PTO AND DIFFERENTIAL LOCK VALVE ASSEMBLY REMOTE HYDRAULIC VALVE STACK MANIFOLD VALVE ASSEMBLY REMOTE HYDRAULIC CONTROL VALVE, BSN AJB363596 REMOTE HYDRAULIC CONTROL VALVE, ASN AJB363596 HITCH VALVE ASSEMBLY REMOTE HYDRAULIC COUPLING MOUNTING REMOTE HYDRAULIC COUPLINGS CYLINDER ASSEMBLY - HITCH (95 MM) POWER BEYOND VALVE ASSEMBLY FRONT FRAME FRONT WEIGHTS - 45 KG (100 LB) FRONT WEIGHTS - 450 KG (1000 LB) FENDERS - FRONT, NARROW FENDERS - FRONT, WIDE FENDERS - REAR FENDERS - REAR, EXTRA WIDE HOOD - TILTING HOOD - TILTING FAN SHIELDS CAB - MOUNTING AND FRAME CAB - ROOF CAB - EXTERIOR TRIM CAB - STEPS CAB - FRONT WINDOW STEP CAB - DOOR CAB - REAR WINDOW CAB - FIXED GLASS MIRRORS - BSN Z7RZ01152 MIRRORS - ASN Z7RZ01152 CAB - HEADLINER, STANDARD TRIM CAB - FLOOR MAT AND INSULATION CAB - TRIM, FENDERS CAB - TRIM, CAB POSTS CAB - INSTRUMENT PANEL SEAT ASSEMBLY CUSHION ASSEMBLY - SEAT SUSPENSION ASSEMBLY - SEAT SEAT - INSTRUCTIONAL CONSOLE, RIGHT HAND, STANDARD CAB MONITOR MOUNTING - CAB ROOF MONITOR MOUNTING - CAB A POST AIR CONDITIONING - COMPRESSOR MOUNTING AIR CONDITIONING - CONDENSER HEATER SYSTEM AIR CONDITIONING - CLIMATE CONTROL UNIT, WITHOUT AUTO TEMP CONTROL AIR CONDITIONING - CLIMATE CONTROL UNIT, WITH AUTO TEMP CONTROL AIR CONDITIONING - AIR FILTER AIR CONDITIONING - DUCTS CAB - INSULATION DRAWBAR AND HAMMERSTRAP - STANDARD HITCH - SUPPORTS AND ROCKSHAFT HITCH - TOP LINK HITCH - TOP LINK BALL END CYLINDER ASSEMBLY - HYDRAULIC TOP LINK - HITCH, SHORT ARMS CYLINDER ASSEMBLY - HYDRAULIC TOP LINK - HITCH, LONG ARMS HITCH - LIFT LINKS CYLINDER ASSEMBLY - HYDRAULIC LIFT LINK - HITCH, RIGHT HAND HITCH - LOWER LIFT LINKS HITCH - LOWER LIFT LINKS HITCH - POSITION SENSOR HITCH - DRAFT CONTROL PINS QUICK HITCH COUPLER - CONVERTIBLE, CATEGORY III/III-N, BSN Z6RZ02099 QUICK HITCH COUPLER - CONVERTIBLE, CATEGORY III/III-N, ASN Z6RZ02099 DECALS DECALS DECALS

1

2

3

4

5

6

7

7

8

9

10

Позиция на иллюстрации	Заводской номер детали		Название детали
1	432-610		PIN
2	1331863C2		HANDLE
3	1954223C4		ARM
4	315912A1		SPRING
5	315541A1		SPACER
6	319585A1		CLEVIS
7	378716A1		NIPPLE
8	738-5645		PIN
9	427-6200		PIN
10	1282082C2		END

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
