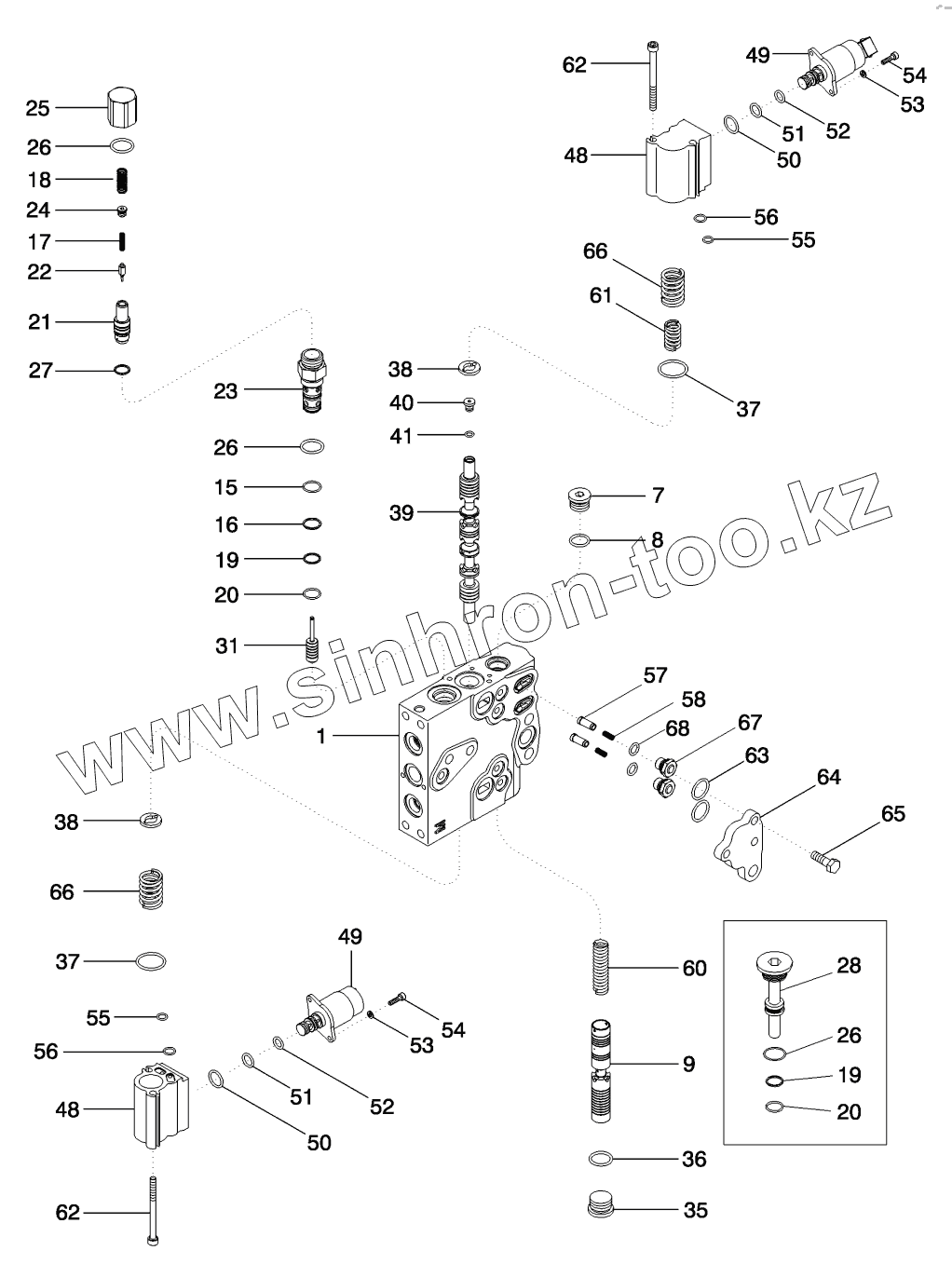

Каталог запасных частей к технике: CASE IH MX-240 Magnum. REMOTE HYDRAULIC CONTROL VALVE
1
7
8
9
15
16
17
18
19
19
20
20
21
22
23
24
25
26
26
26
27
31
35
36
37
37
38
38
39
40
41
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
58
60
61
62
62
63
64
65
66
66
67
68
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 447220A6 | 447220A6 | VALVE | |
| 372228A1 | 372228A1 | SEAL | |
| 367421A3 | 367421A3 | VALVE | |
| 87416820 | 87416820 | SPOOL | |
| 278550A2 | 278550A2 | VALVE | |
| 447223A4 | 447223A4 | VALVE | |
| 447226A5 | 447226A5 | VALVE | |
| 447226A5 | 447226A5 | VALVE | |
| 1 | NSS | NOT SERVICED SEPARATELY | |
| 7 | 71100209 | PLUG | |
| 8 | 237-6010 | O-RING | |
| 9 | 446403A1 | SPOOL | |
| 15 | 238-6016 | O-RING | |
| 16 | G103862 | RING | |
| 17 | NSS | NOT SERVICED SEPARATELY | |
| 18 | NSS | NOT SERVICED SEPARATELY | |
| 19 | G108723 | RING | |
| 20 | 238-6015 | O-RING | |
| 21 | NSS | NOT SERVICED SEPARATELY | |
| 22 | NSS | NOT SERVICED SEPARATELY | |
| 23 | NSS | NOT SERVICED SEPARATELY | |
| 24 | NSS | NOT SERVICED SEPARATELY | |
| 25 | NSS | NOT SERVICED SEPARATELY | |
| 26 | 237-6010 | O-RING | |
| 27 | G108727 | BACK-UP RING | |
| 31 | 87546296 | PISTON | |
| 35 | 86625138 | PLUG | |
| 36 | 237-6010 | O-RING | |
| 37 | 238-5120 | O-RING | |
| 38 | 436518A1 | WASHER | |
| 39 | NSS | NOT SERVICED SEPARATELY | |
| 40 | 86632547 | PLUG | |
| 41 | 237-6002 | O-RING | |
| 42 | 301969A2 | SPRING | |
| 43 | 301970A1 | SPRING | |
| 48 | NSS | NOT SERVICED SEPARATELY | |
| 49 | 278506A2 | VALVE | |
| 50 | 319721A1 | O-RING | |
| 51 | 319722A1 | O-RING | |
| 52 | 319723A1 | O-RING | |
| 53 | 892-11004 | WASHER | |
| 54 | 864-4016 | SCREW | |
| 55 | 238-5011 | O-RING | |
| 56 | 238-5012 | O-RING | |
| 57 | 87648631 | POPPET | |
| 58 | 87648596 | SPRING | |
| 60 | 436854A1 | SPRING | |
| 61 | 321689A1 | SPRING | |
| 62 | 864-6075 | SCREW | |
| 63 | 238-6116 | O-RING | |
| 64 | 87408510 | PLATE | |
| 65 | 628-8025 | BOLT | |
| 66 | 87706278 | SPRING | |
| 67 | 87648607 | PLUG | |
| 68 | 637-63093 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
