445533A2

1

2

3

4

5

6

7

8

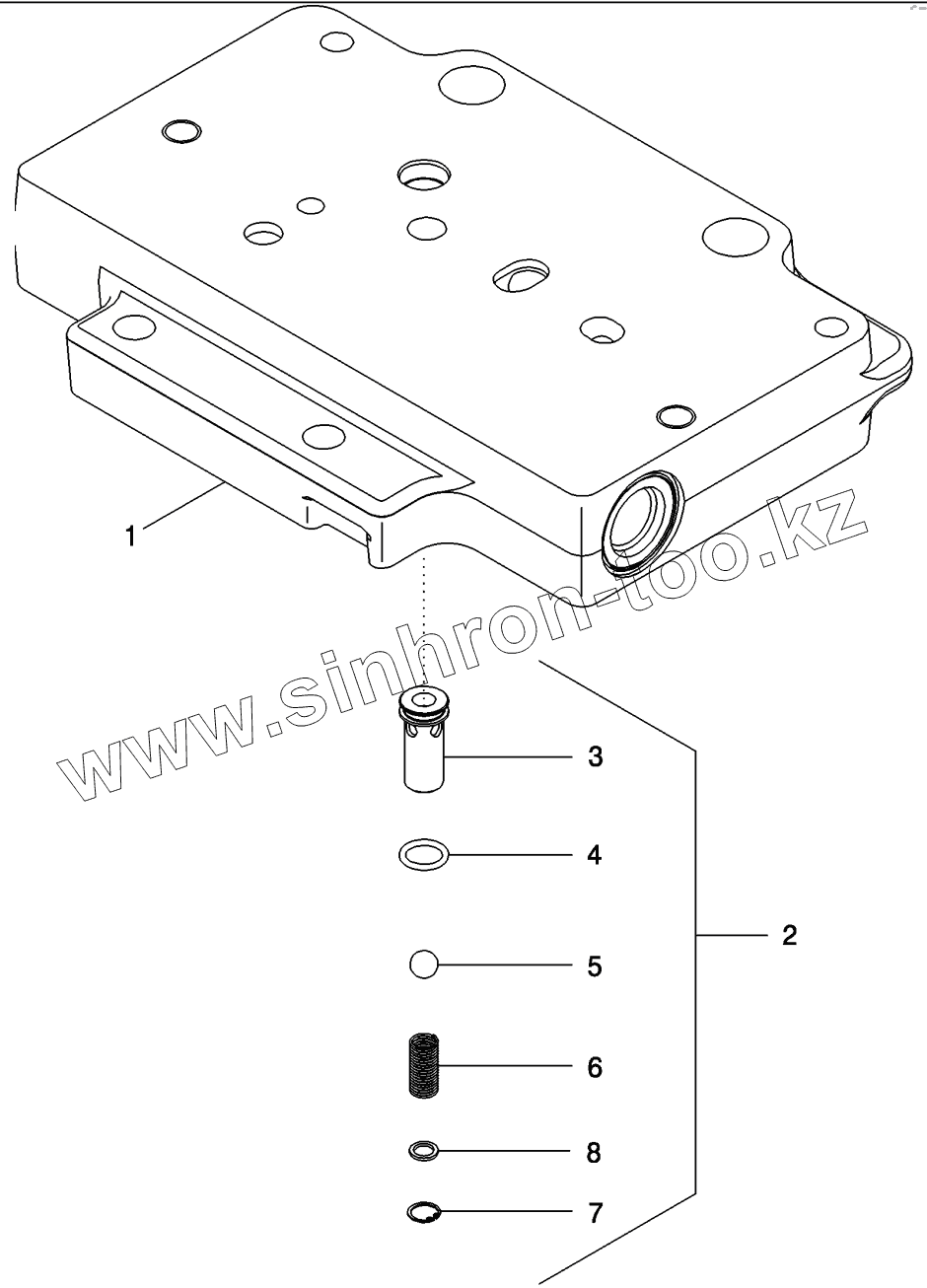

Позиция на иллюстрации	Заводской номер детали		Название детали
445533A2	445533A2		PLATE ASSY
1	445532A2		PLATE
2	445492A2		VALVE
3	NSS		NOT SERVICED SEPARATELY
4	238-5012		O-RING
5	211-1009		BALL
6	445494A1		SPRING
7	100-2131		RING
8	86988656		WASHER
