Каталог запасных частей к технике: CASE IH MX-240 Magnum. AIR CONDITIONING - COMPRESSOR MOUNTING

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 430 Steiger 4WD (2010) Axial Flow 2388 (2010) MRX-690 (2012) MX-240 Magnum (2007) MX-255 Magnum (2006) MX-285 Magnum (2007) MX-305 Magnum (2007) Puma-210 (2010) STX-530 Steiger (2010) Жатка-2030 (RIGID) (2010) Жатка-2152 (2010) Культиватор-Tigermate 2 DMI (2010)

Схема > Не выбрано RADIATOR AND FAN SHROUD RADIATOR ASSEMBLY DEAERATION SYSTEM AIR INDUCTION SYSTEM - STANDARD DUTY AIR INDUCTION SYSTEM - SEVERE DUTY AFTERCOOLER ETHER START SYSTEM EXHAUST SYSTEM ENGINE MOUNTING FLYWHEEL SHIELDS WATER PUMP SYSTEM FRONT GEAR COVER MANIFOLDS TURBOCHARGER SYSTEM TURBOCHARGER ASSEMBLY WASTEGATE ACTUATOR, MX240 AND MX255 FILTER AND COOLER - OIL OIL PUMP AND OIL PAN CYLINDER HEAD - COVER CYLINDER HEAD - VALVE MECHANISM FILTER, WATER CRANKCASE, BREATHER CAMSHAFT CYLINDER BLOCK KIT ENGINE OVERHAUL, MX240 AND MX255 CRANKSHAFT FLYWHEEL PISTONS - CONNECTING RODS, MX240 AND MX255 GASKET KIT - VALVE GRIND GASKET KIT - CYLINDER BLOCK GASKET KIT - BASIC SERVICE ENGINE FUEL SYSTEM ANEROID AND WASTEGATE SYSTEM FUEL FILTER - PUMP, TRANSFER FUEL INJECTION - PUMP AND DRIVE FUEL INJECTION - NOZZLE HAND THROTTLE FOOT THROTTLE FUEL TANKS FUEL LINES FUEL FILTER HARNESS - ENGINE POWER DISTRIBUTION HARNESS - CHASSIS HARNESS - REMOTE HYDRAULIC VALVE HARNESS - CAB HARNESS - CAB ROOF, SHELF AND CD CHANGER ELECTRICAL COMPONENT MOUNTING ELECTRICAL COMPONENT MOUNTING - FUSES A-POST COVER - INSTRUMENT CLUSTER CONTROLS - FRONT CONSOLE CONTROLS - RIGHT HAND CONSOLE CONTROLS - RIGHT FENDER CONSOLE, WITHOUT ATC ALTERNATOR - MOUNTING ALTERNATOR ASSEMBLY - 135 AMPERE STARTER - MOUNTING STARTER ASSEMBLY SOLENOID - STARTER BATTERY, BATTERY BOX AND CABLES WINDSHIELD WIPER ASSEMBLY - FRONT AND REAR WINDSHIELD WASHER - FRONT AND REAR HEADLAMPS LAMPS - WIDE TRANSPORT LAMPS - FRONT WORK LAMPS - CAB ROOF LAMPS - REAR FENDER AND REMOTE HITCH SWITCH WORK LAMPS - ROOF AND REAR FENDERS LAMP - STROBE LAMP - BEACON RADIOS, SPEAKERS AND ANTENNAS GROUND SPEED SENSOR IMPLEMENT CONNECTORS AND MOUNTING HARNESS AND MONITOR STEERING WHEEL AND COLUMN STEERING COLUMN ASSEMBLY STEERING SYSTEM - MFD FRONT AXLE - MOUNTING, MFD FRONT AXLE DRIVE SHAFT - MFD, WITHOUT DIFFERENTIAL LOCK MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 10 BOLT HUB, WITHOUT DIFFERENTIAL LOCK MFD AXLE HOUSING ASSEMBLY - STANDARD WITH 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK CARRIER AND DIFFERENTIAL - MFD, 10 BOLT HUB, WITHOUT DIFFERENTIAL LOCK CARRIER AND DIFFERENTIAL - MFD, 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK FRONT AXLE PLANETARIES AND HUB - MFD, 10 BOLT HUB FRONT AXLE PLANETARIES AND HUB - MFD, 12 BOLT HUB STEERING CYLINDER ASSEMBLY - MFD, 10 BOLT HUB STEERING CYLINDER ASSEMBLY - MFD, 12 BOLT HUB FRONT WHEELS - MFD, 10 BOLT HUB FRONT WHEELS - MFD, 12 BOLT HUB TRANSMISSION DRIVE SHAFT TRANSMISSION DROP BOX SPEED TRANSMISSION - HOUSING PLATE ASSEMBLY - VALVE MOUNTING, LEFT HAND SIDE PLATE ASSEMBLY - VALVE MOUNTING, TOP SPEED TRANSMISSION - INPUT SHAFT WITHOUT CREEP SPEED SPEED TRANSMISSION - INPUT SHAFT WITH CREEP SPEED SPEED TRANSMISSION - COUNTERSHAFT WITHOUT CREEP SPEED SPEED TRANSMISSION - COUNTERSHAFT WITH CREEP SPEED SPEED TRANSMISSION - OUTPUT SHAFT FRONT CLUTCH SPEED TRANSMISSION - OUTPUT SHAFT REAR CLUTCH RANGE TRANSMISSION - HOUSING VALVE ASSY - INCHING RANGE TRANSMISSION - INPUT SHAFT RANGE TRANSMISSION - MASTER CLUTCH RANGE TRANSMISSION - COUNTERSHAFT TRANSMISSION - PINION SHAFT AND GEARS TRANSMISSION - DIFFERENTIAL RANGE TRANSMISSION - MFD CLUTCH MFD AXLE - DRIVE SHAFT TRANSMISSION CONTROL VALVE LOCATION VALVE ASSEMBLY - TRANSMISSION CONTROL (450729A2) VALVE ASSEMBLY - TRANSMISSION CONTROL (450724A2) VALVE ASSEMBLY - TRANSMISSION CONTROL (450728A2) PEDAL - INCHING LEVER ASSEMBLY - TRANSMISSION CONTROL REAR AXLE - HOUSING BREATHER - TRANSMISSION REAR AXLE - PLANETARY REAR AXLE - 4 X 98 INCH, MX240 AND MX255 REAR AXLE - 4 X 120 INCH TRANSMISSION - PUMP DRIVE POWER TAKE OFF ASSEMBLY - INPUT SHAFT POWER TAKE OFF ASSEMBLY - REDUCTION GEAR, DUAL SPEED POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT, DUAL SPEED POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT, SINGLE SPEED POWER TAKE OFF ASSEMBLY - SHIELDS SOLID STEEL REAR WHEELS HUB ASSEMBLY - REAR WHEEL SPACER - DUAL REAR WHEELS REAR WHEEL WEIGHTS BRAKES - PEDAL BRAKE BRAKES - HYDRAULIC SYSTEM BRAKES - CONTROL VALVE BRAKES - DIFFERENTIAL PARK BRAKE - HYDRAULIC SYSTEM PARK BRAKE - BRAKE ASSEMBLY PARK BRAKE - RELEASE HYDRAULIC SYSTEM - OIL COOLER HYDRAULIC SYSTEM - 3RD OIL COOLER HYDRAULIC SYSTEM - CHARGE PUMP HYDRAULIC SYSTEM - PISTON PUMP AND FILTER, STANDARD FLOW CAPACITY HYDRAULIC SYSTEM - PISTON PUMP AND FILTER, HIGH FLOW CAPACITY HYDRAULIC SYSTEM - REGULATED PRESSURE HYDRAULIC SYSTEM - CREEP SPEED HYDRAULIC SYSTEM - TRANSMISSION LUBE HYDRAULIC SYSTEM - HITCH HYDRAULIC SYSTEM - FRONT HITCH HYDRAULIC SYSTEM - PTO/DIFFERENTIAL LOCK VALVE HYDRAULIC SYSTEM - REMOTE COUPLERS HYDRAULIC SYSTEM - POWER BEYOND HYDRAULIC SYSTEM - MOTOR RETURN PRIORITY AND REGULATOR VALVE ASSEMBLY PTO AND DIFFERENTIAL LOCK VALVE ASSEMBLY REMOTE HYDRAULIC VALVE STACK MANIFOLD VALVE ASSEMBLY REMOTE HYDRAULIC CONTROL VALVE HITCH VALVE ASSEMBLY REMOTE HYDRAULIC COUPLING MOUNTING REMOTE HYDRAULIC COUPLING ASSEMBLY CYLINDER ASSEMBLY - HITCH (88.9 MM) CYLINDER ASSEMBLY - HITCH (90 MM) CYLINDER ASSEMBLY - HITCH (95 MM) CYLINDER ASSEMBLY - HITCH (105 MM) POWER BEYOND VALVE ASSEMBLY FRONT FRAME FRONT WEIGHTS - 45 KG (100 LB) FRONT WEIGHTS - 450 KG (1000 LB) FRONT HITCH FENDERS - FRONT, NARROW FENDERS - FRONT, WIDE FENDERS - REAR FENDERS - REAR, EXTRA WIDE HOOD - TILTING FAN SHIELDS HOOD - FIXED CAB - MOUNTING AND FRAME CAB - ROOF CAB - EXTERIOR TRIM CAB - STEPS CAB - FRONT WINDOW STEP CAB - DOOR CAB - REAR WINDOW CAB - FIXED GLASS MIRRORS - BSN Z7RZ01152 MIRRORS - ASN Z7RZ01152 CAB - HEADLINER CAB - FLOOR MAT AND INSULATION CAB - TRIM, FENDERS CAB - TRIM, CAB POSTS CAB - INSTRUMENT PANEL SEAT ASSEMBLY CUSHION ASSEMBLY - SEAT SUSPENSION ASSEMBLY - SEAT SEAT - INSTRUCTIONA CONSOLE, RIGHT HAND MONITOR MOUNTING - CAB ROOF MONITOR MOUNTING - CAB A POST AIR CONDITIONING - COMPRESSOR MOUNTING AIR CONDITIONING - CONDENSER HEATER SYSTEM AIR CONDITIONING - CLIMATE CONTROL UNIT, WITHOUT AUTO TEMP CONTROL AIR CONDITIONING - AIR FILTER AIR CONDITIONING - DUCTS CAB - INSULATION DRAWBAR AND HAMMERSTRAP HITCH - SUPPORTS AND ROCKSHAFT HITCH - TOP LINK, CLAW TYPE HITCH - TOP LINK, SOLID BALL TYPE HITCH - LIFT LINKS HITCH - LOWER LIFT LINKS, CLAW TYPE HITCH - LOWER LIFT LINKS, SOLID BALL TYPE HITCH - SWAY LIMITER HITCH - POSITION SENSOR HITCH - DRAFT CONTROL PINS DECALS DECALS DECALS

1

1

2

3

4

5

6

7

8

9

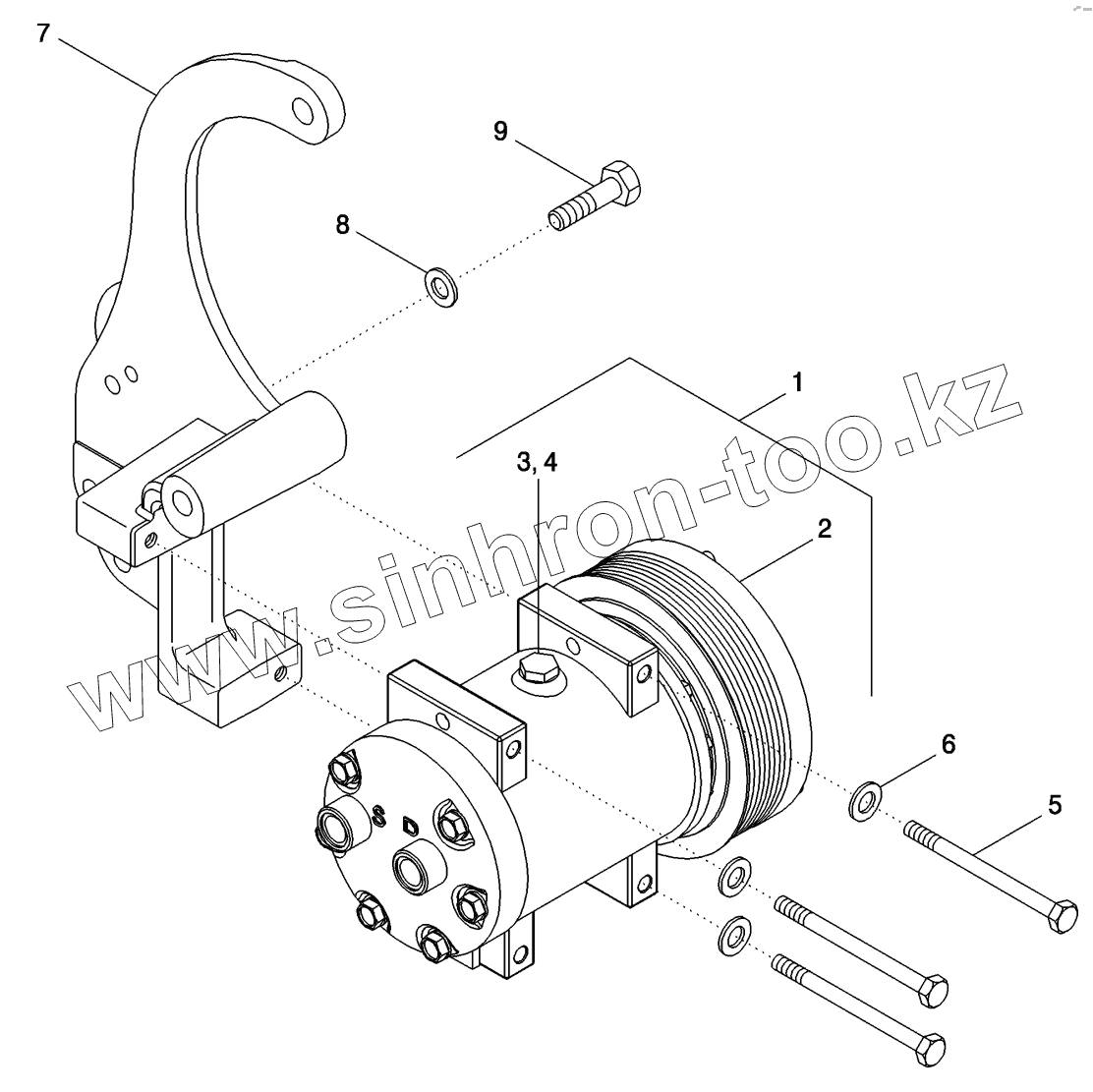

Позиция на иллюстрации	Заводской номер детали		Название детали
1	317008A3		COMPRESSOR
1	86993463R		REMAN-COMPRESSOR
2	403585A1		CLUTCH
3	A49667		PLUG
4	128483A1		O-RING
5	814-8100		BOLT
6	895-11008		WASHER
7	394717A4		SUPPORT
8	895-11010		WASHER
9	628-10030		BOLT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
