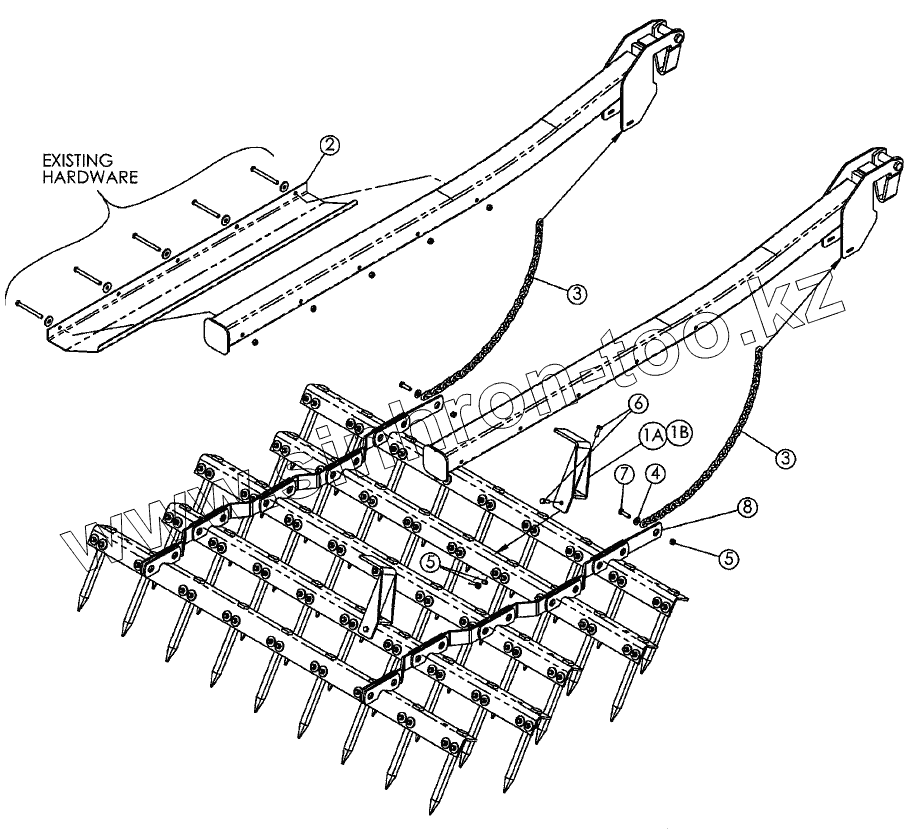

Каталог запасных частей к технике: CASE IH Культиватор-Tigermate 2 DMI. SPIKE ANTI-ANGLE KIT

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 430 Steiger 4WD (2010) Axial Flow 2388 (2010) MRX-690 (2012) MX-240 Magnum (2007) MX-255 Magnum (2006) MX-285 Magnum (2007) MX-305 Magnum (2007) Puma-210 (2010) STX-530 Steiger (2010) Жатка-2030 (RIGID) (2010) Жатка-2152 (2010) Культиватор-Tigermate 2 DMI (2010)

Схема > Не выбрано WARNING AND TAIL LIGHT KIT SINGLE FOLD 12-1/2 THROUGH 38-1/2 WARNING AND TAILLIGHT KIT 38-1/2 TO 50-1/2 MODELS WARNING AND TAILLIGHT KIT 54-1/2 THROUGH 60-1/2 MODELS HYDRAULICS SINGLE FOLD MODELS 12-1/2 THROUGH 38-1/2 TRANSPORT HYDRAULICS 38-1/2 THROUGH 50-1/2 MODELS TRANSPORT HYDRAULICS 54-1/2 THROUGH 60-1/2 MODELS DOUBLE FOLD WING LIFT HYDRAULICS 38-1/2 THROUGH 46-1/2 DOUBLE FOLD WING LIFT HYDRAULICS 48-1/2 THROUGH 50-1/2 FRONT WING LIFT HYDRAULICS OPTION 38-1/2 THROUGH 46-1/2 FRONT WING LIFT HYDRAULICS OPTION 48-1/2 THROUGH 50-1/2 WING FOLD HYDRAULICS 54-1/2 THROUGH 60-1/2 HYDRAULIC CYLINDERS 3000 PSI SINGLE FOLD MAIN FRAME 12-1/2 THROUGH 38-1/2 DOUBLE FOLD MAIN FRAME AND TRUSSES 38-1/2 THROUGH 50-1/2 54-1/2 THROUGH 60-1/2 DOUBLE FOLD MAIN FRAME AND TRUSSES SINGLE FOLD LIFT SYSTEM DOUBLE FOLD LIFT SYSTEM AND PULL FRAME 38-1/2 THROUGH 50-1/2 MODELS 54-1/2 THROUGH 60-1/2 DOUBLE FOLD LIFT SYSTEM AND PULL FRAME WING FRAME SINGLE FOLD 12-1/2 THROUGH 38-1/2 DOUBLE FOLD INNER WING 38-1/2 THROUGH 50-1/2 MODELS 54-1/2 TO 60-1/2 DOUBLE FOLD INNER WING DOUBLE FOLD OUTER WING 38-1/2 THROUGH 50-1/2 MODELS 54-1/2 TO 60-1/2 DOUBLE FOLD OUTER WING SINGLE FOLD MAIN FRAME SINGLE FOLD, WINGS 710 WALKING AXLE DOUBLE FOLD WALKING AXLE ASSEMBLY 38-1/2 (12 MAINFRAME ONLY) THROUGH 46-1/2 DOUBLE FOLD WALKING AXLE ASSEMBLY 48-1/2 MAINFRAME ONLY THROUGH 50-1/2 MODELS DOUBLE FOLD WALKING AXLE ASSEMBLY MAINFRAME ONLY 54-1/2 THROUGH 60-1/2 DOUBLE FOLD WALKING AXLE ASSEMBLY (WINGS ONLY) 38-1/2 THROUGH 46-1/2 DOUBLE FOLD WALKING AXLE ASSEMBLY (WINGS ONLY) 48-1/2 THROUGH 60-1/2 MODELS WING RIGID STABILIZER WHEEL PIVOT STABALIZING WHEEL 783 HUB 633 HUB AND SPINDLE ASSEMBLY 710 HUB AND SPINDLE ASSEMBLY STABILIZER WHEEL 710 HUB AND SPINDLE ASSEMBLY, WINGS ONLY TIGERMATE II SHANK ASSEMBLY 10 AND 12 SINGLE FOLD MAIN FRAME WALKING BEAM SERVICE PART KIT SINGLE FOLD 14 MAIN FRAME ONLY WALKING BEAM SERVICE PART KIT DOUBLE FOLD WALKING BEAM SERVICE KIT (38-1/2 (12 MAINFRAME) THROUGH 60-1/2 MODELS JACK TIGER TINE REAR HITCH ATTACHMENT ACS REAR HITCH ATTACHMENT ACS PARTS BREAKDOWN COIL TINE HARROW TIGER TINE HARROW PARTS TINE ADJUSMENT HANDLE STORAGE SPIKE TOOTH HARROW SPIKE ANTI-ANGLE KIT

1A

1B

2

3

3

4

5

5

6

7

8

Позиция на иллюстрации	Заводской номер детали		Название детали
1A	06406340		BRACKET
1B	06406350		BRACKET
2	06406217		LINKAGE
3	22004341		CHAIN
4	17407015		WASHER
5	86992213		NUT
6	413-616		BOLT
7	413-620		BOLT
8	06260050		LINK
9	06406300		KIT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
