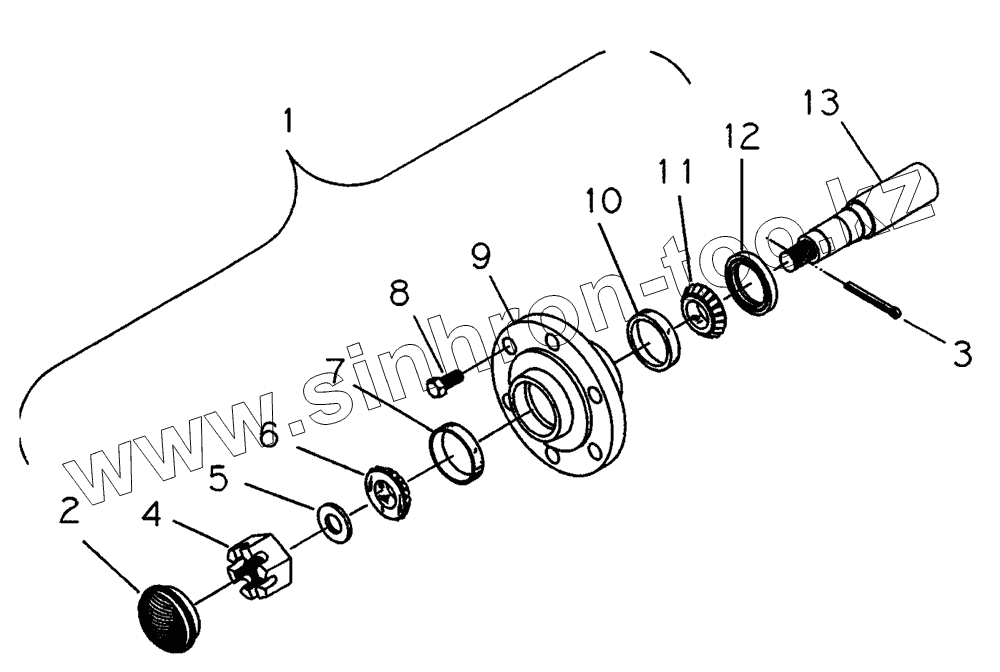

Каталог запасных частей к технике: CASE IH Культиватор-Tigermate 2 DMI. 783 HUB
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
430 Steiger 4WD (2010)
Axial Flow 2388 (2010)
MRX-690 (2012)
MX-240 Magnum (2007)
MX-255 Magnum (2006)
MX-285 Magnum (2007)
MX-305 Magnum (2007)
Puma-210 (2010)
STX-530 Steiger (2010)
Жатка-2030 (RIGID) (2010)
Жатка-2152 (2010)
Культиватор-Tigermate 2 DMI (2010)
Схема
>
Не выбрано
WARNING AND TAIL LIGHT KIT SINGLE FOLD 12-1/2 THROUGH 38-1/2
WARNING AND TAILLIGHT KIT 38-1/2 TO 50-1/2 MODELS
WARNING AND TAILLIGHT KIT 54-1/2 THROUGH 60-1/2 MODELS
HYDRAULICS SINGLE FOLD MODELS 12-1/2 THROUGH 38-1/2
TRANSPORT HYDRAULICS 38-1/2 THROUGH 50-1/2 MODELS
TRANSPORT HYDRAULICS 54-1/2 THROUGH 60-1/2 MODELS
DOUBLE FOLD WING LIFT HYDRAULICS 38-1/2 THROUGH 46-1/2
DOUBLE FOLD WING LIFT HYDRAULICS 48-1/2 THROUGH 50-1/2
FRONT WING LIFT HYDRAULICS OPTION 38-1/2 THROUGH 46-1/2
FRONT WING LIFT HYDRAULICS OPTION 48-1/2 THROUGH 50-1/2
WING FOLD HYDRAULICS 54-1/2 THROUGH 60-1/2
HYDRAULIC CYLINDERS 3000 PSI
SINGLE FOLD MAIN FRAME 12-1/2 THROUGH 38-1/2
DOUBLE FOLD MAIN FRAME AND TRUSSES 38-1/2 THROUGH 50-1/2
54-1/2 THROUGH 60-1/2 DOUBLE FOLD MAIN FRAME AND TRUSSES
SINGLE FOLD LIFT SYSTEM
DOUBLE FOLD LIFT SYSTEM AND PULL FRAME 38-1/2 THROUGH 50-1/2 MODELS
54-1/2 THROUGH 60-1/2 DOUBLE FOLD LIFT SYSTEM AND PULL FRAME
WING FRAME SINGLE FOLD 12-1/2 THROUGH 38-1/2
DOUBLE FOLD INNER WING 38-1/2 THROUGH 50-1/2 MODELS
54-1/2 TO 60-1/2 DOUBLE FOLD INNER WING
DOUBLE FOLD OUTER WING 38-1/2 THROUGH 50-1/2 MODELS
54-1/2 TO 60-1/2 DOUBLE FOLD OUTER WING
SINGLE FOLD MAIN FRAME
SINGLE FOLD, WINGS 710 WALKING AXLE
DOUBLE FOLD WALKING AXLE ASSEMBLY 38-1/2 (12 MAINFRAME ONLY) THROUGH 46-1/2
DOUBLE FOLD WALKING AXLE ASSEMBLY 48-1/2 MAINFRAME ONLY THROUGH 50-1/2 MODELS
DOUBLE FOLD WALKING AXLE ASSEMBLY MAINFRAME ONLY 54-1/2 THROUGH 60-1/2
DOUBLE FOLD WALKING AXLE ASSEMBLY (WINGS ONLY) 38-1/2 THROUGH 46-1/2
DOUBLE FOLD WALKING AXLE ASSEMBLY (WINGS ONLY) 48-1/2 THROUGH 60-1/2 MODELS
WING RIGID STABILIZER WHEEL
PIVOT STABALIZING WHEEL
783 HUB
633 HUB AND SPINDLE ASSEMBLY
710 HUB AND SPINDLE ASSEMBLY STABILIZER WHEEL
710 HUB AND SPINDLE ASSEMBLY, WINGS ONLY
TIGERMATE II SHANK ASSEMBLY
10 AND 12 SINGLE FOLD MAIN FRAME WALKING BEAM SERVICE PART KIT
SINGLE FOLD 14 MAIN FRAME ONLY WALKING BEAM SERVICE PART KIT
DOUBLE FOLD WALKING BEAM SERVICE KIT (38-1/2 (12 MAINFRAME) THROUGH 60-1/2 MODELS
JACK
TIGER TINE REAR HITCH ATTACHMENT
ACS REAR HITCH ATTACHMENT
ACS PARTS BREAKDOWN
COIL TINE HARROW
TIGER TINE HARROW PARTS
TINE ADJUSMENT HANDLE STORAGE
SPIKE TOOTH HARROW
SPIKE ANTI-ANGLE KIT
1
2
3
4
5
6
7
8
9
10
11
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
1
28178300
HUB ASSY
2
28477700
HUB CAP
3
432-1024
PIN
4
425-1314
NUT
5
495-61094
WASHER
6
651818R91
BEARING
7
651817R1
BEARING
8
549962R1
BOLT
9
28278300
HUB ASSY
10
663558R1
BEARING
11
663557R91
BEARING
12
145769C91
SEAL
13
28378305
28378305
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
