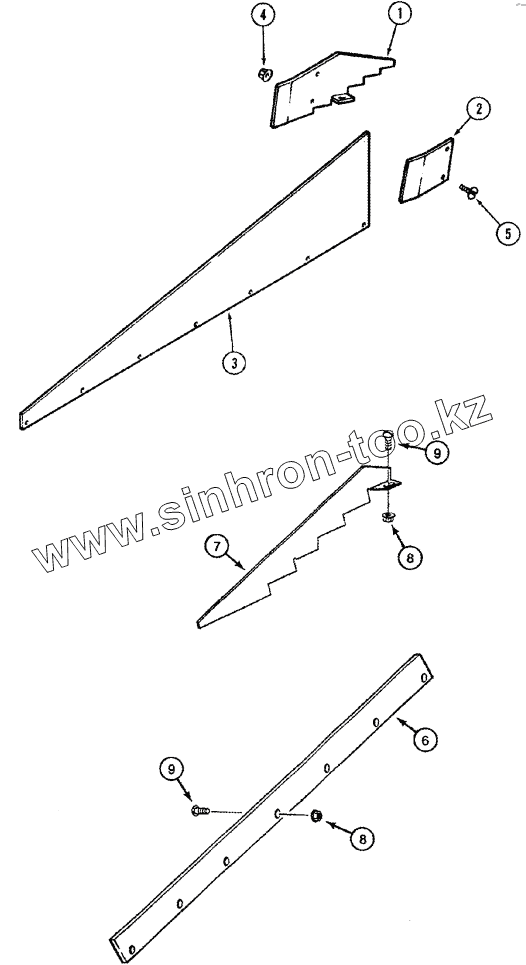

Каталог запасных частей к технике: CASE IH Axial Flow 2388. GRAIN PAN SIDE HILL DIVIDERS

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 430 Steiger 4WD (2010) Axial Flow 2388 (2010) MRX-690 (2012) MX-240 Magnum (2007) MX-255 Magnum (2006) MX-285 Magnum (2007) MX-305 Magnum (2007) Puma-210 (2010) STX-530 Steiger (2010) Жатка-2030 (RIGID) (2010) Жатка-2152 (2010) Культиватор-Tigermate 2 DMI (2010)

Схема > Не выбрано RADIATOR - FAN SHROUD WATER PUMP SYSTEM DEAERATION SYSTEM COOLER BOX ASSY COOLER BOX ASSY METAL DOOR ASSY - ROTARY AIR SCREEN METAL ROTARY AIR SCREEN ASSY PLASTIC DOOR ASSY - ROTARY AIR SCREEN PLASTIC ROTARY AIR SCREEN ASSY, WITH DIRT DROP BOX AND BRUSHES ROTARY AIR SCREEN VACUUM SYSTEM NON ROTARY AIR SCREEN VACUUM SHIELDS INTAKE SYSTEM, CHARGE AIR COOLER AIR CLEANER - AIR INDUCTION SYSTEM EXHAUST SYSTEM - MUFFLER MANIFOLDS TURBOCHARGER SYSTEM TURBOCHARGER ASSY WASTEGATE ACTUATOR CYLINDER BLOCK - ENGINE BLOCK HEATERS OIL PUMP, PAN - OIL PAN HEATER KIT CYLINDER HEAD, COVER AND BREATHER CYLINDER HEAD - VALVE MECHANISM FRONT GEAR COVER WATER FILTER AND THERMOSTAT OIL FILTER AND COOLER CAMSHAFT CRANKSHAFT PISTONS - CONNECTING RODS FLYWHEEL AND BACKING PLATE OIL SYSTEM ENGINE - OIL FILL TUBE - OIL DRAIN SYSTEM GASKET KIT - CYLINDER BLOCK GASKET KIT - VALVE GRIND KIT, GASKET - BASIC ENGINE SERVICE KIT ENGINE OVERHAUL ETHER START SYSTEM MOUNTING, ENGINE - BSN HAJ331 MOUNTING, ENGINE - ASN HAJ331 FUEL INJECTION SYSTEM WASTEGATE SYSTEM FUEL FILTER - PUMP, TRANSFER FUEL INJECTION - PUMP AND DRIVE FUEL INJECTION - NOZZLE FUEL, SUPPLY FUEL, RETURN FUEL TANK THROTTLE CONTROL HARNESS - FRONT POTENTIOMETER, CONCAVE POSITION - MOUNTING HARNESS, CENTER HARNESSES - STEERING CONSOLE AND PLATFORM HARNESS, ENGINE HARNESS, CONSOLE LEVER ASSY - PROPULSION CONTROLS HARNESS - CAB, OVERHEAD RADIO HARNESS - CAB, LOWER REAR HARNESS - CAB, RELAY AND FUSE INSTRUMENT PANEL ASSY HARNESS, LOWER HARNESS, LEFT HAND SIDE HARNESS, REAR HARNESS - GRAIN TANK AND UNLOADER LAMP HARNESS - ROTOR LIMIT SWITCH HARNESS - FAN AND ROTOR SPEED HARNESS - TAILINGS MONITOR HARNESS - FEEDER REVERSER POTENTIOMETER, FEEDER POSITION - MOUNTING POTENTIOMETER, FEEDER POSITION - MOUNTING - YIELD MONITOR POTENTIOMETER, FEEDER POSITION - MOUNTING - RETURN TO CUT HARNESS - CHAFFER AND ROTOR HARNESS - FIELD TRACKER HARNESS - ROTOR MOTOR CONTROL - ASN HAJ331 FIELD TRACKER® - MOUNTING, POTENTIOMETER LAMP ASSY - DRIVE AND FLOOD LAMP ASSY - DRIVE AND FLOOD - HALOGEN LAMP ASSYS, WARNING LAMP MOUNTING, LAMP - GRAIN TANK LAMP ASSY - SIEVE BATTERY - CABLES BATTERY - BOX ALTERNATOR - MOUNTING STARTER ASSY - MOUNTING STARTER ASSY - ISKRA ALTERNATOR ASSY MOTOR ASSY - WIPER, WINDSHIELD WINDSHIELD WASHER LAMP ASSY - FLASHERS, SIDE LAMP ASSY - GRAIN TANK PACKAGE, AFS DISPLAY BATTERY BACKUP AFS PRO 6 DISPLAY HARNESS, YIELD MONITOR CAB DISPLAY, AFS HEADER HEIGHT POTENTIOMETER AND MOUNTING, AFS AFS YIELD MONITOR INTERFACE UNIT PACKAGE BEACON, ROTATING COMBINE HEADER ADAPTER, ELECTRICAL AFS - ANTENNA UNIT HARNESSES, AUTO GUIDANCE - ASN HAJ331 STEERING SENSOR BRACKET, AUTO GUIDANCE, POWER GUIDE AXLE - ASN HAJ331 STEERING SENSOR BRACKET, AUTO GUIDANCE, NON-POWER GUIDE AXLE - ASN HAJ331 STEERING COLUMN - WHEEL HYDRAULICS - STEERING SUPPLY AND RETURN HYDRAULICS - STEERING PUMP TO CYLINDER AXLE, STEERING - SUPPORT - ADJUSTABLE AXLE AXLE, ADJUSTABLE STEERING, SINGLE CYLINDER AXLE, ADJUSTABLE STEERING, DUAL CYLINDER AXLE, ADJUSTABLE - STEERING KNUCKLE, HUB AND WHEELS REAR WHEEL WEIGHT AXLE, ADJUSTABLE - TIE ROD, STEERING AXLE, ADJUSTABLE - TIE ROD, WITH DUAL STEERING CYLINDERS AXLE, STEERING SUPPORT - POWER GUIDE AXLE AXLE, STEERING - EXTENSIONS - POWER GUIDE AXLE - SINGLE STEERING CYLINDER AXLE, STEERING - EXTENSIONS - POWER GUIDE AXLE - DUAL STEERING CYLINDER MOTOR, WHEEL - KING PIN - POWER GUIDE AXLE - AXLE DRIVE WHEEL MOTOR ASSY - WHEEL DRIVE - POWER GUIDE AXLE - CORN AND GRAIN COMBINE HYDRAULICS - MOTOR, DRIVE - POWER GUIDE AXLE HYDRAULICS - WHEEL MOTOR FLUSH - POWER GUIDE AXLE STEERING CYLINDER AND TIE ROD - POWER GUIDE AXLE - SINGLE STEERING CYLINDER STEERING CYLINDER AND TIE ROD - POWER GUIDE AXLE - DUAL STEERING CYLINDER CYLINDER ASSY - STEERING CYLINDER ASSY - STEERING - POWER GUIDE AXLE- 12 ROW READY VALVE, SELECTOR CONTROL - MOUNTING - POWER GUIDE AXLE VALVE, SELECTOR CONTROL - POWER GUIDE AXLE - CORN AND GRAIN COMBINE VALVE ASSY - STEERING PRIORITY AXLE, STEERING - SHIELD AXLE, STEERING - WEIGHTS - 16 WEIGHTS HITCH, TRAILER VALVE, SELECTOR CONTROL - POWER GUIDE AXLE - RICE COMBINE MOTOR ASSY - WHEEL DRIVE - POWER GUIDE AXLE - RICE COMBINE POWER TAKE OFF DRIVE HYDROSTATICS - PUMP AND MOTOR - SINGLE SPEED MOTOR HYDROSTATICS - PUMP AND MOTOR - TWO SPEED MOTOR PEDAL-FOOT-N-INCH HYDRAULICS - FOOT-N-INCH VALVE VALVE ASSY - FOOT-N-INCH CONTROLS - PROPULSION PUMP ASSY - HYDROSTATIC PUMP ASSY - HYDROSTATIC - CONTROL VALVE PUMP ASSY - HYDROSTATIC - CHARGE PUMP - CORN AND GRAIN COMBINE PUMP ASSY - HYDROSTATIC - CHARGE PUMP - RICE COMBINE MOTOR ASSY - HYDROSTATIC - SINGLE SPEED MOTOR ASSY - HYDROSTATIC - RELIEF VALVE BLOCK MOTOR ASSY - HYDROSTATIC - TWO SPEED MOTOR ASSY - HYDROSTATIC - TWO SPEED MOTOR ASSY - HYDROSTATIC - CONTROL VALVE - TWO SPEED CONTROLS - TRANSMISSION UPPER SHIFT CONTROLS - TRANSMISSION LOWER SHIFT TRANSMISSION ASSY - HOUSING AND DIFFERENTIAL TRANSMISSION ASSY - DIFFERENTIAL PINION SHAFT AND GEARS TRANSMISSION ASSY - INPUT SHAFT, GEARS AND SHIFTER RAILS AXLE ASSY - DRIVE, WITHOUT EXTENSIONS AXLE - EXTENSIONS FINAL DRIVE ASSY WHEELS - DRIVE - SINGLE WHEELS - DRIVE- DUAL CONTROLS - BRAKES, MASTER HYDRAULICS - BRAKES, MASTER BRAKES, MASTER VALVE ASSY - BRAKES, MASTER HYDRAULICS - BRAKE, PARKING AND TOW VALVE RESERVOIR - OIL, HYDRAULIC HYDRAULICS - RESERVOIR TO HYDROSTATIC PUMP FILTER ASSY - OIL, RETURN - RETURN FILTER MOUNTING HYDROSTATIC - FILTER, PUMP SUCTION - SUCTION FILTER MOUNTING OIL COOLER SYSTEM HYDRAULICS - AUXILIARY PUMP SUPPLY HYDRAULICS - AUXILIARY PUMP RETURN PUMP, AUXILIARY - MOUNTING AND DRIVE HYDRAULICS - HEADER LIFT VALVE SUPPLY HYDRAULICS - HEADER LIFT VALVE, CONTROL - MOUNTING VALVE ASSY - CONTROL - HEADER LIFT VALVE ASSY VALVE ASSY - CONTROL - 4-WAY, 3 POSITION VALVE ASSY - CONTROL - HEADER LIFT WITH FORE AND AFT VALVE ASSY VALVE ASSY - CONTROL - HEADER LIFT WITH REEL FORE AND AFT AND FIELD TRACKER VALVE ASSY - HEADER HEIGHT VALVE ASSY - PARKING BRAKE AND FEEDER CLUTCH HYDRAULICS - REEL DRIVE REEL DRIVE - COUPLING MOUNTING VALVE ASSY - REEL DRIVE HYDRAULICS - REEL LIFT AND FORE/AFT HYDRAULICS - FEEDER CLUTCH HYDRAULICS - ROTARY AIR SCREEN CIRCUIT (PLASTIC SCREEN) HYDRAULICS - ROTARY AIR SCREEN VACUUM HYDRAULICS - UNLOADER CLUTCH HYDRAULICS - SEPARATOR CLUTCH - PTO CIRCUIT HYDRAULICS - SEPARATOR CLUTCH VALVE ASSY - CLUTCH, SEPARATOR/UNLOADER VALVE ASSY - ROTARY SCREEN BYPASS CYLINDER ASSYS - FEEDER CLUTCH ACCUMULATOR - MOUNTING AND SYSTEM HYDRAULICS - UNLOADER TUBE SWING CYLINDER HYDRAULICS - FIELD TRACKER CYLINDER ASSY - FIELD TRACKER, TILT HYDRAULICS - FEEDER REVERSER FEEDER REVERSER MOTOR - HYDRAULIC VALVE ASSY - FEEDER REVERSER COMBINE HEADER ADAPTER, HOSES AND COUPLINGS HYDRAULICS - AUTO GUIDANCE - ASN HAJ331 VALVE, AUTO GUIDANCE - ASN HAJ331 BELT DRIVE - JACKSHAFT, FAN BELT DRIVE - RIGHT-HAND SIDE SEPARATOR SHIELD, DRIVE SEPARATOR - JACKSHAFT DRIVE SEPARATOR - JACKSHAFT SUPPORT SEPARATOR DRIVE PULLEY AND IDLER JACKSHAFT BEARING BLOCK - FOR USE WITH DISCHARGE BEATER FEEDER - HOUSING, DRIVE AND FAN GEAR FEEDER - MOUNTING, DRIVE AND FAN GEAR FEEDER - DRIVE FEEDER - SHIELDS, DRIVE FEEDER - JACKSHAFT DRIVE FEEDER - JACKSHAFT IDLER PIVOT FEEDER - SHIELDS, JACKSHAFT DRIVE FEEDER - HOUSING AND ADAPTER FEEDER - SUPPORTS AND LIFT BRACKET FEEDER - COVERS FEEDER - CONVEYOR - 3 STRAND CONVEYOR CHAIN ROCK TRAP ROCK TRAP DRIVE GEARBOX ASSY - FEEDER REVERSER GEARBOX - FEEDER REVERSER FIELD TRACKER® - SUPPORT, FEEDER PIVOT FIELD TRACKER® - SUPPORT, HEADER PIVOT ROTOR DRIVE - GEARBOX MOUNTING ROTOR DRIVE - MOUNTING SUPPORTS ROTOR DRIVE - PULLEY AND CAM ROTOR DRIVE - HOUSING, GEAR ROTOR DRIVE - SPEED ADJUSTMENT ROTOR ASSY - CORN AND GRAIN ROTOR ASSY - SPECIALTY ROTOR ASSY - SPECIALTY AFX - BSN HAJ331 ROTOR ASSY - SPECIALTY AFX - ASN HAJ331 ROTOR INSTALLATION PARTS - BSN HAJ331 ROTOR INSTALLATION PARTS - ASN HAJ331 CONE VANE - EXTENDED WEAR/STANDARD WEAR VANE - AFX WITH EXTENDED WEAR CAGE - FRONT CAGE - REAR CONCAVES - GRATES AND CONCAVES CONCAVES - ANCHOR SUPPORTS CONCAVES - CONTROL AUGER BED DRIVE - SHAKER SHAFT AND AUGER CHAFFER - DRIVE HANGER SIEVE, SHOE CHAFFER - SIEVE GRAIN PAN SIDE HILL DIVIDERS SIEVE ADJUSTMENT BEATER - DISCHARGE BEATER PAN - DISCHARGE - CORN AND GRAIN - FIXED BEATER PAN - DISCHARGE - RICE - SPRING LOADED CLEANING FAN - HOUSING CLEANING FAN - SHAFT AND SUPPORTS CLEANING FAN - DRIVE CLEANING FAN - DRIVE SPEED CONTROL SHIELD, FAN INLET - DOOR - RIGHT-HAND CLEANING FAN - SHIELDS SHIELDS, INLET AND SEPARATOR - LEFT HAND SHIELDS, INLET AND SEPARATOR - RIGHT HAND REAR GRAIN AUGER TROUGH GRAIN ELEVATOR - HOUSING AND BOOT GRAIN ELEVATOR HEAD, INCLINED GRAIN ELEVATOR HEAD, INCLINED - AFS FLOW SENSOR GRAIN ELEVATOR HEAD, INCLINED - AFS MOISTURE SENSOR GRAIN ELEVATOR, OUTER BOOT AND ELEVATOR SLIDE ADJUSTER GRAIN ELEVATOR DRIVE AUGER ASSEMBLY - TAILINGS DELIVERY INCLINED DELIVERY - AUGER TAILINGS AUGER TROUGH TAILINGS AUGER TROUGH PANEL AND GATE - MODELS WITH STRAW SPREADER CLEANING SHOE DOOR - SHIELD - MODELS WITH STRAW AND CHAFF SPREADER TAILINGS - ELEVATOR HOUSING AND CONVEYOR TAILINGS - ELEVATOR HEAD TAILINGS - ELEVATOR DRIVE ELEVATOR - JACKSHAFT, DRIVE GRAIN TANK ASSEMBLY GRAIN TANK - SUPPORTS, UPPER GRAIN TANK - SUPPORTS, LOWER GRAIN TANK EXTENSIONS AUGERS - GRAIN TANK, LOWER GRAIN TANK - STEPS AND SAMPLE TROUGH UNLOADER, BELT DRIVE UNLOADER, CHAIN DRIVE AUGER, UNLOADER - GRAIN TANK, LOWER UNLOADER HOUSING - GRAIN TANK, LOWER UNLOADER - TUBE, UPPER UNLOADER - AUGER, UPPER UNLOADER - SUPPORTS UNLOADER - SUPPORTS, SWING CYLINDER UNLOADER - TUBE SADDLE UNLOADER - UPPER GEAR HOUSING STRAW SPREADER STRAW SPREADER - DRIVE STRAW SPREADER - SHIELDS STRAW CHOPPER - DRIVE STRAW CHOPPER - HOUSING, GEAR STRAW CHOPPER - ROTOR AND CONCAVE CAB - FRAME AND WINDSHIELD CAB - DOOR ASSY, LEFT HAND CAB - DOOR ASSY, RIGHT HAND CAB - WINDOW, REAR - OPENABLE CAB - FLOOR MAT AND INSULATION CAB - HEADLINER CAB - INTERIOR CAB - CONSOLE, RIGHT HAND SEAT, INSTRUCTIONAL - STORAGE TRAY SEAT, INSTRUCTIONAL - BELTS SEAT, OPERATOR - AIR SUSPENSION - CUSHIONS AND KNOBS SEAT, OPERATOR - AIR SUSPENSION - PLATE AND SLIDES SEAT, OPERATOR - SUSPENSION HEATER - AIR CONDITIONING - LOUVERS AND AIR DUCTS HEATER - AIR CONDITIONING - CAB AIR CONDITIONING, EXTERIOR HEATER - AIR CONDITIONING BOX ASSY - AIR CONDITIONING HEATING SYSTEM - CAB/CHASSIS CONNECTIONS TO ENGINE HEATER - AIR CONDITIONING - COMPRESSOR TO CONDENSER AND CAB/CHASSIS CONNECTIONS AIR CONDITIONING - COMPRESSOR MOUNTING AND DRIVE CAB - MIRROR, REAR VIEW WITH WARNING LAMP - BSN HAJ3229 CAB - MIRROR, REAR VIEW WITH WARNING LAMP - ASN HAJ3229 CAB - MIRROR, REAR VIEW - INTERIOR FIRE EXTINGUISHER SUNVISOR ENGINE SHIELDS AND SERVICE DECK ENGINE SHIELDS AND SERVICE DECK SUPPORTS SEPARATOR - DOORS - LEFT HAND SEPARATOR - DOORS - RIGHT HAND SEPARATOR - HOOD DOOR - SHIELD - RIGHT HAND DOOR - SHIELDS - LEFT HAND GRAIN TANK, CORNER COVER PARTS DEFLECTORS - SUPPORTS LADDER, SERVICE HAND RAILS - DECK, SERVICE LADDER - RADIATOR ACCESS LADDER, OPERATORS PLATFORM, OPERATORS - LEFT HAND PLATFORM SUPPORT - LADDER PIVOT PLATFORM, OPERATORS - EXTENSION PLATFORM - LADDER, RIGHT HAND DECALS DECALS - WARNING AND DANGER DECALS - INFORMATION DECALS WITH READ OPERATORS MANUAL SYMBOL DECALS - INFORMATION DECALS WITH READ OPERATORS MANUAL SYMBOL DECALS - IMPORTANT INSTRUCTIONS, DECAL KITS DECALS - CAB

1

2

3

4

5

6

7

8

8

9

9

Позиция на иллюстрации	Заводской номер детали		Название детали
180771C91	180771C91		KIT
87585380	87585380		PACKAGE
1	87584221		DIVIDER
2	185116C1		RETAINER
3	185114C1		DIVIDER
4	231-5144		NUT
5	477-82508		SCREW
6	1957596C2		DIVIDER
7	1957597C1		DIVIDER
8	231-5144		NUT
9	477-82508		SCREW

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
