Каталог запасных частей к технике: CASE IH 430 Steiger 4WD. MANUAL SHIFT TRANSMISSION - LOCKOUT VALVE ASSEMBLY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 430 Steiger 4WD (2010) Axial Flow 2388 (2010) MRX-690 (2012) MX-240 Magnum (2007) MX-255 Magnum (2006) MX-285 Magnum (2007) MX-305 Magnum (2007) Puma-210 (2010) STX-530 Steiger (2010) Жатка-2030 (RIGID) (2010) Жатка-2152 (2010) Культиватор-Tigermate 2 DMI (2010)

Схема > Не выбрано RADIATOR AND HOSES, STX AND STEIGER 380/430 RADIATOR MOUNTING AND FAN SHROUD, STX AND STEIGER 380/430 AIR INDUCTION SYSTEM, STX AND STEIGER 380/430 AIR CLEANER ASSEMBLY AIR COOLER MOUNTING, STX AND STEIGER 380/430 BLOCK HEATER ENGINE MOUNTING AND ATTACHING PARTS, STX AND STEIGER 380/430 EXHAUST SYSTEM - QUADTRAC TRACTOR, STX AND STEIGER 380/430 EXHAUST SYSTEM - WHEEL TRACTOR, STX AND STEIGER 380/430 ENGINE ASSY., STX AND STEIGER 380/430 CYLINDER BLOCK AND RELATED PARTS, STX AND STEIGER 380/430 OIL SUMP AND RELATED PARTS, STX AND STEIGER 380/430 FLYWHEEL CASE, STX AND STEIGER 380/430 ENGINE BLOCK FRONT COVER, STX AND STEIGER 380/430 ENGINE MOUNTING, STX AND STEIGER 380/430 ENGINE BREATHERS, STX AND STEIGER 380/430 CYLINDER BARREL LUBRICATION NOZZLE, STX AND STEIGER 380/430 CYLINDER HEAD AND RELATED PARTS, STX AND STEIGER 380/430 HEAD COVER, STX AND STEIGER 380/430 SHAFT AND ROCKER ARMS, STX AND STEIGER 380/430 EXHAUST MANIFOLD, STX AND STEIGER 380/430 CRANKSHAFT AND RELATED PARTS, STX AND STEIGER 380/430 CONNECTING ROD, STX AND STEIGER 380/430 PISTON - ENGINE, STX AND STEIGER 380/430 FLYWHEEL, STX AND STEIGER 380/430 PULLEY - CRANKSHAFT, STX AND STEIGER 380/430 DAMPER, STX AND STEIGER 380/430 INTERMEDIATE CONTROLS, STX AND STEIGER 380/430 CAMSHAFT, STX AND STEIGER 380/430 AIR LINES, STX AND STEIGER 380/430 TURBOCHARGER MOUINTING, STX AND STEIGER 380/430 TURBOBLOWER PIPES, STX AND STEIGER 380/430 OIL DIPSTICK, STX AND STEIGER 380/430 OIL DIPSTICK, STX AND STEIGER 380/430 PUMP, ENGINE OIL AND RELATED PARTS, STX AND STEIGER 380/430 PUMP, ENGINE OIL AND RELATED PARTS, STX AND STEIGER 380/430 FILTER ENGINE OIL, STX AND STEIGER 380/430 OIL PRESSURE REGULATION VALVE, STX AND STEIGER 380/430 OIL PUMP PIPING, STX AND STEIGER 380/430 HEAT EXCHANGER, STX AND STEIGER 380/430 WATER PUMP AND RELATED PARTS, STX AND STEIGER 380/430 WATER PUMP PIPES, STX AND STEIGER 380/430 PIPING - ENGINE COOLING SYSTEM, STX AND STEIGER 380/430 TEMPERATURE CONTROL (THERMOSTAT), STX AND STEIGER 380/430 BELT PULLEY DRIVE AND COVER, STX AND STEIGER 380/430 STARTER MOTOR, STX AND STEIGER 380/430 INTAKE MANIFOLD, STX AND STEIGER 380/430 ENGINE EXHAUST BRAKE, STX AND STEIGER 380/430 HOOKS - ENGINE, STX AND STEIGER 380/430 ENGINE CONTROL UNIT, STX AND STEIGER 380/430 MOTOR SENSORS, STX AND STEIGER 380/430 MOTOR ELECTRIC INSTALLATION, STX AND STEIGER 380/430 THROTTLE THROTTLE - DECELARATOR CONTROL, ASN Z6F105037 FUEL LINES, STX AND STEIGER 380/430 INJECTOR AND RELATED PARTS, STX AND STEIGER 380/430 FUEL FILTER AND RELATED PARTS, STX AND STEIGER 380/430 FUEL PUMP AND RELATED PARTS, STX AND STEIGER 380/430 FUEL LINES AND RELATED PARTS, STX AND STEIGER 380/430 CONTROLS - RIGHT HAND ARMREST CONSOLE CONTROL PANEL - COMPONENTS RADIO AND SPEAKERS INSTRUMENT CLUSTER AND ROPS POST CONTROLS WIPER, WINDSHIELD - MOUNTING WINDSHIELD WASHER ALTERNATOR - MOUNTING, STX AND STEIGER 380/430 GROUND SPEED SENSOR ALARM - BACK-UP ELECTRONIC - TRANSMISSION, POWER SHIFT HARNESS - ENGINE, STX AND STEIGER 380/430 HARNESS - MAIN CAB, DELUXE AND LUXURY CABS HARNESS - CAB ROOF HARNESS - FRONT FRAME HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE, WITHOUT THREE POINT HITCH HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE AND THREE POINT HITCH HARNESS - FRONT CONSOLE HARNESS - ADVANCED FARMING SYSTEMS BATTERIES ELECTRONIC MODULE ASSEMBLY LAMPS - REAR FRAME, H.I.D. LAMPS - REAR FRAME AND FIELD, NORTH AMERICA LAMPS - REAR FRAME AND FIELD, EUROPE HEADLAMPS - NORTH AMERICA HEADLAMPS - EUROPE LAMPS - MARKER LAMPS - SIDE MARKER WARNING LAMP - STROBE WIRING - TWIN FLOW HYDRAULIC CONTROLS TWIN FLOW HYDRAULIC CONTROLS MOUNTING - ADVANCED FARMING SYSTEMS ACCUGUIDE, GPS - MOUNTING ACCUGUIDE - AFS 200 PRO MOUNTING AND RELATED PARTS ACCUGUIDE - AFS 600 PRO MOUNTING AND RELATED PARTS, ASN Z7F105571 SENSOR - HITCH POSITION HARNESS - ISO IMPLEMENT STEERING WHEEL AND COLUMN TRANSMISSION CONTROL ASSEMBLY, WITH MANUAL SHIFT TRANSMISSION TRANSMISSION CONTROL ASSEMBLY, WITH POWER SHIFT TRANSMISSION STEERING COLUMN ASSEMBLY HYDRAULICS - STEERING CYLINDER ASSEMBLY - ARTICULATION ARTICULATION LOCKS STEERING CONTROL VALVE ACCUGUIDE - HYDRAULIC, STEERING ACCUGUIDE - CYLINDER ASSY., ARTICULATION W/ SENSOR, ASN Z7F105338 TRANSMISSION SHIFTER AND THROTTLE CONTROL TRANSMISSION SHIFT CONTROLS, MANUAL SHIFT TRANSMISSION SHIFTING UNIT ASSEMBLY, WITH MANUAL SHIFT TRANSMISSION CLUTCH PEDAL, MANUAL SHIFT TRANSMISSION CLUTCH PEDAL, POWER SHIFT TRANSMISSION WHEELS SINGLE AND DUALS WITH SPACERS WHEELS TRIPLES WITH SPACERS HUB ASSEMBLY MOUNTING TRACKS, QUADTRAC TRACTOR YOKE MOUNTING, QUADTRAC TRACTOR UNDERCARRIAGE - MOUNTING, QUADTRAC TRACTOR AXLE ASSEMBLY - FRONT IDLER, QUADTRAC TRACTOR AXLE ASSEMBLY - REAR IDLER, QUADTRAC TRACTOR AXLE ASSEMBLY - ROLLER SHAFT DRIVE WHEEL, QUADTRAC TRACTOR TRACK TENSIONING, QUADTRAC TRACTOR DRIVE SHAFT - MOUNTING DRIVE SHAFT POWER TAKEOFF - CLUTCH LUBRICATION, WITH MANUAL SHIFT TRANSMISSION POWER TAKEOFF - CLUTCH LUBRICATION, WITH POWER SHIFT TRANSMISSION VALVE ASSEMBLY - POWER TAKE OFF POWER TAKEOFF - LUBRICATION POWER TAKEOFF - DRIVE SHAFT MOUNTING POWER TAKEOFF - DRIVE SHAFT ASSEMBLIES POWER TAKEOFF - SAFETY SHIELDS POWER TAKEOFF - TRANSFER CASE ASSEMBLY POWER TAKEOFF - CLUTCH ASSEMBLY POWER TAKEOFF - INPUT SHAFT ASSEMBLY TRANSMISSION MOUNTING, MANUAL SHIFT TRANSMISSION TRANSMISSION MOUNTING, POWER SHIFT TRANSMISSION TRANSMISSION - LUBRICATION, WITH MANUAL SHIFT TRANSMISSION TRANSMISSION - LUBRICATION, WITH POWER SHIFT TRANSMISSION MANUAL SHIFT TRANSMISSION - VALVE ASSEMBLY MOUNTING MANUAL SHIFT TRANSMISSION - COVERS AND YOKES MANUAL SHIFT TRANSMISSION - REAR HOUSING MAUAL SHIFT TRANSMISSION - FRONT HOUSING MANUAL SHIFT TRANSMISSION - SHAFT ASSEMBLIES AND SHIFTER FORKS MANUAL SHIFT TRANSMISSION - SHIFTER FORKS MANUAL SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY MANUAL SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY MANUAL SHIFT TRANSMISSION - SECOND SHAFT ASSEMBLY MANUAL SHIFT TRANSMISSION - THIRD SHAFT ASSEMBLY MANUAL SHIFT TRANSMISSION - FOURTH SHAFT ASSEMBLY MANUAL SHIFT TRANSMISSION - FIFTH SHAFT ASSEMBLY MANUAL SHIFT TRANSMISSION - CONTROL VALVE ASSEMBLY MANUAL SHIFT TRANSMISSION - LOCKOUT VALVE ASSEMBLY MANUAL SHIFT TRANSMISSION - REGULATOR VALVE ASSEMBLY POWER SHIFT TRANSMISSION - VALVE AND PUMP MOUNTING POWER SHIFT TRANSMISSION - COVERS AND YOKES POWER SHIFT TRANSMISSION - REAR HOUSING POWER SHIFT TRANSMISSION - HOUSING AND CLUTCHES POWER SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - SECOND SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - THIRD SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - FOURTH SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - FOURTH SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - FIFTH SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - FIFTH SHAFT ASSEMBLY POWER SHIFT TRANSMISSION - REGULATOR VALVE ASSEMBLY POWER SHIFT TRANSMISSION - RANGE SELECTOR VALVE AXLE MOUNTING, WHEEL TRACTOR SERIES AXLE ASSEMBLY - FRONT COVER SERIES AXLE ASSEMBLY - REAR COVER SERIES AXLE ASSEMBLY - CENTER AND LEFT-HAND CARRIER SERIES AXLE ASSEMBLY - DIFFERENTIAL, WITHOUT DIFFERENTIAL LOCKS SERIES AXLE ASSEMBLY - DIFFERENTIAL, WITH DIFFERENTIAL LOCKS SERIES AXLE ASSEMBLY - BRAKE AND RIGHT-HAND CARRIER SERIES AXLE ASSEMBLY - FINAL DRIVE SERIES AXLE ASSEMBLY - FRONT COVER SERIES AXLE ASSEMBLY - REAR COVER SERIES AXLE ASSEMBLY - CENTER AND LEFT-HAND CARRIER, WHEEL TRACTOR SERIES AXLE ASSEMBLY - CENTER AND LEFT-HAND CARRIER, QUADTRAC TRACTOR SERIES AXLE ASSEMBLY - DIFFERENTIAL, WITHOUT DIFFERENTIAL LOCKS SERIES AXLE ASSEMBLY - DIFFERENTIAL, WITH DIFFERENTIAL LOCKS SERIES AXLE ASSEMBLY - BRAKE AND RIGHT-HAND CARRIER SERIES AXLE ASSEMBLY - OFFSET BEARING, QUADTRAC TRACTOR SERIES AXLE ASSEMBLY - FINAL DRIVE, WHEELED TRACTOR SERIES AXLE ASSEMBLY - FINAL DRIVE, QUADTRAC TRACTOR AXLE ASSEMBLY - JET PUMP BRAKE CONTROL BRAKE VALVE ASSY SERIES AXLE - SERVICE BRAKE CIRCUIT SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK SERIES AXLE - PARK BRAKE CIRCUIT, WITHOUT DIFFERENTIAL LOCK SERIES AXLE - SERVICE BRAKE CIRCUIT, WHEEL TRACTOR SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, WHEEL TRACTOR SERIES AXLE - PARK BRAKE CIRCUIT, WITHOUT DIFFERENTIAL LOCK, WHEEL TRACTOR SERIES AXLE - SERVICE BRAKE CIRCUIT, QUADTRAC TRACTOR SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, QUADTRAC TRACTOR SERIES AXLE - PARK BRAKE CIRCUIT, WITHOUT DIFFERENTIAL LOCK, QUADTRAC TRACTOR VALVE ASSEMBLY - DIFFERENTIAL LOCK HYDRAULIC OIL COOLER, STX AND STEIGER 380/430 HYDRAULIC OIL COOLER MOUNTING, STX AND STEIGER 380/430 OIL FILTER - AXLE AND TRANSMISSION OIL FILTER - MAIN HYDRAUIC (BELOW BATTERY) SERIES AXLE HYDRAULICS - LUBRICATION CIRCUIT SERIES AXLE HYDRAULICS - AIR AND LUBRICATON CIRCUIT SERIES AXLE HYDRAULICS - LUBRICATION CIRCUIT, WHEEL TRACTOR SERIES AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, WHEEL TRACTOR SERIES AXLE HYDRAULICS - COOLING CIRCUIT, WHEEL TRACTOR SERIES AXLE HYDRAULICS - LUBRICATION CIRCUIT, QUADTRAC TRACTOR SERIES AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, QUADTRAC TRACTOR SERIES AXLE HYDRAULICS - COOLING CIRCUIT, QUADTRAC TRACTOR REGULATOR VALVE ASSEMBLY PRIORITY/STEERING CONTROL VALVE TOW BLOCK VALVE ASSEMBLY CABLE - TOW VALVE HYDRAULIC TANK, WHEEL TRACTOR HYDRAULIC TANK, QUADTRAC TRACTOR STANDARD HYDRAULICS - PUMP LUBRICATION CIRCUIT, WITH MANUAL SHIFT TRANSMISSION STANDARD HYDRAULICS - PUMP LUBRICATION CIRCUIT, WITH POWER SHIFT TRANSMISSION STANDARD HYDRAULICS - PUMP MOUNTING STANDARD HYDRAULICS - PISTON PUMP ASSEMBLY HIGH OUTPUT HYDRAULICS - PUMP LUBRICATION CIRCUIT, MANUAL SHIFT TRANSMISSION HIGH OUTPUT HYDRAULICS - PUMP LUBRICATION CIRCUIT, POWER SHIFT TRANSMISSION HIGH OUTPUT HYDRAULICS - PUMP MOUNTING HIGH OUTPUT HYDRAULICS - PISTON PUMP ASSY GEAR PUMP ASSEMBLY HYDRAULIC REMOTE HOSES - ELECTRONIC REMOTE HYDRAULIC REMOTE CONTROL VALVE MANIFOLD VALVE ASSEMBLY REMOTE VALVE ASSEMBLY - ELECTRONIC REMOTE COUPLER VALVE ASSEMBLY MAIN AND AUXILIARY VALVE ASSEMBLY - ELECTRONIC CONTROLLED HITCH VALVE ASSEMBLY - ELECTRONIC CONTROLLED MOTOR RETURN COUPLERS - POWER BEYOND COUPLER MOUNTS - WITHOUT POWER TAKEOFF AND THREE POINT HITCH THREE POINT HITCH HYDRAULICS - ELECTRONIC CONTROLLED HITCH SYSTEM CYLINDER ASSY - THREE POINT HITCH HYDRAULICS - TWIN FLOW CIRCUITRY TWIN FLOW HYDRAULICS - AUXILIARY REMOTE MOUNTING TWIN FLOW HYDRAULIC MANIFOLD ASSY TWIN FLOW HYDRAULIC PUMP ASSY OIL FILTER - TWIN FLOW HYDRAULICS TRAILER BRAKES - HYDRAULIC VALVE - HYDRAULIC TRAILER BRAKE HYDRAULICS - PARALLEL FLOW CIRCUITRY THREE POINT HITCH ROCKSHAFT THREE POINT HITCH - UPPER LINK, WITHOUT POWER TAKEOFF THREE POINT HITCH - UPPER LINK, WITH POWER TAKEOFF LINK ASSEMBLY - UPPER LINK ASSEMBLY - LIFT QUICK HITCH DRAWBAR - EXTENDABLE DRAWBAR - HEAVY DUTY, WITHOUT THREE POINT HITCH DRAWBAR - HEAVY DUTY, WITH THREE POINT HITCH DRAWBAR - REYNOLDS CAB MOUNTING INTERIOR TRIM - DELUXE AND LUXURY CABS CAB - FLOORMATS AND DOORS DOOR ASSEMBLY CAB - SKIRTS AND GLASS ROOF CAB - HEADLINER AND CONTROL PANEL, DELUXE AND LUXURY CAB CONSOLE - RIGHT-HAND ARMREST, MANUAL CONSOLE - RIGHT HAND ARMREST, ELECTRIC, BSN Z7F105745 CONSOLE - RIGHT HAND ARMREST, ELECTRIC, ASN Z7F105745 FRONT CONSOLE MIRRORS SEAT - NON-INSTRUCTIONAL SEAT - INSTRUCTIONAL SEAT - OPERATORS SEAT - CUSHION ASSEMBLY SUSPENSION ASSEMBLY - SEAT POSITIVE RESPONSE SUSPENSION ASSEMBLY - SEAT FRONT FRAME, WHEEL TRACTOR, STX AND STEIGER 380/430 BATTERY DOOR ASSEMBLY, WHEEL TRACTOR FRONT FRAME, QUADTRAC TRACTOR, STEIGER 380/430 BATTERY DOOR ASSEMBLY, QUADTRAC TRACTOR STEPS, QUADTRAC TRACTOR PUSH ARM ASSEMBLY BUMPER, STX AND STEIGER 380/430 GRILLE HOOD AND SUPPORT, STX AND STEIGER 380/430 HOOD - LIFT ARM CENTER LINK REAR FRAME, QUADTRAC TRACTOR REAR FRAME, WHEEL TRACTOR HEATER - HOSES, STX AND STEIGER 380/430 AIR CONDITIONING SYSTEM, STX AND STEIGER 380/430 AIR CONDITIONING - DUCTS AIR CONDITIONING - AIR FILTER HOUSING ASSEMBLY AIR CONDITIONING - BLOWER ASSEMBLY AIR CONDITIONING - CLIMATE CONTROL UNIT, WITH AUTO TEMP CONTROL COMPRESSOR, AIRCOND., STX AND STEIGER 380/430 COMPRESSOR, AIRCOND. - COMPONENTS, STX AND STEIGER 380/430 MONITOR MOUNTING STORAGE BOX WEIGHTS - FRONT FRAME WEIGHTS - REAR FRAME WEIGHTS - WHEEL TOW CABLE FIRE EXTINGUISHER DECALS, HOOD, WHEEL TRACTOR, ASN Z6F105001 DECALS, HOOD, QUADTRAC TRACTOR, ASN Z6F105001 DECALS DECALS DECALS

1

2

2

3

4

5

6

7

8

8

9

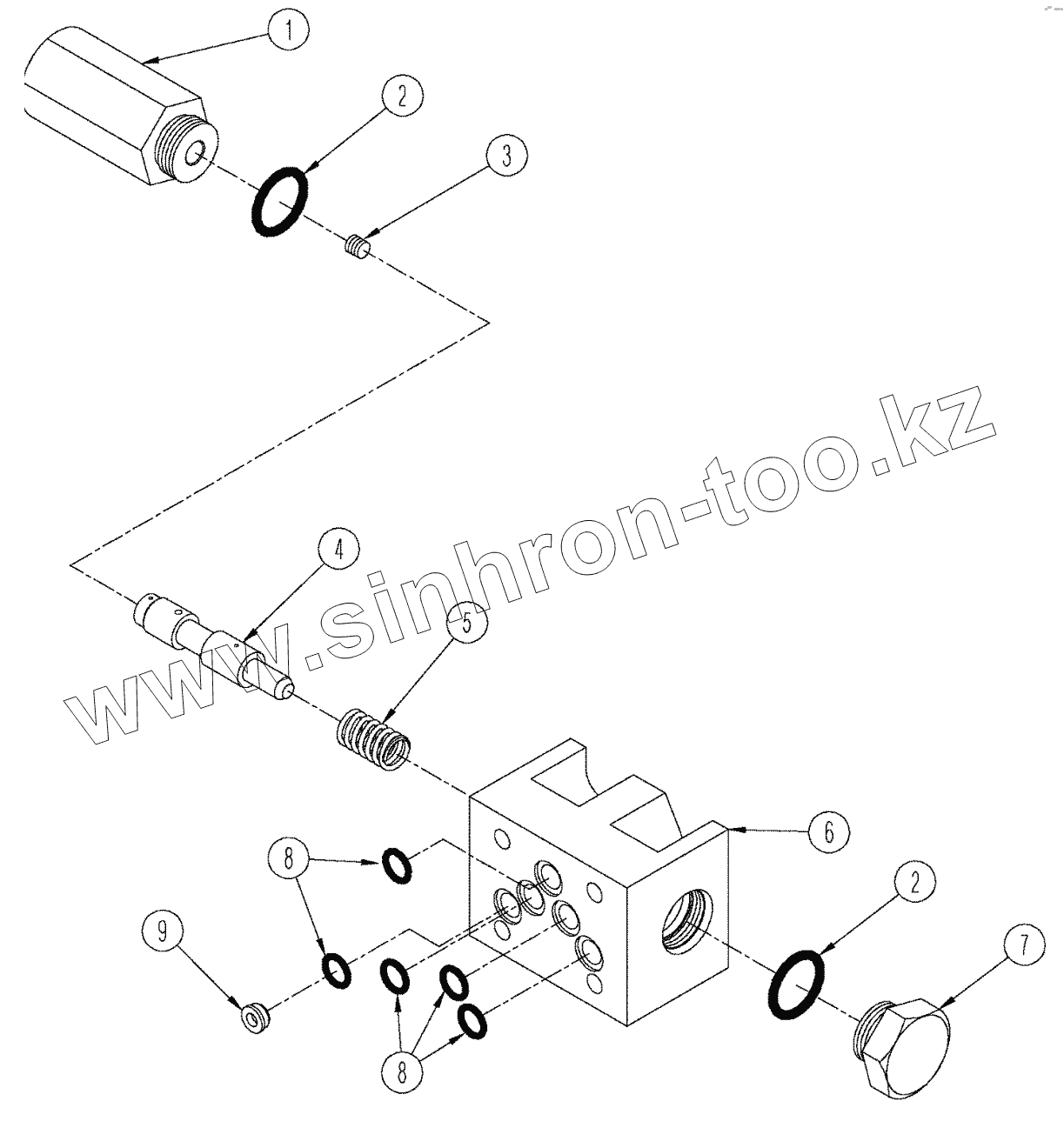

Позиция на иллюстрации	Заводской номер детали		Название детали
428091A1	428091A1		VALVE
1	428090A1		PLUG
2	428086A1		O-RING
3	428094A1		PLUG
4	428089A1		SPOOL
5	428088A1		SPRING
6	428092A1		BODY
7	428087A1		PLUG
8	428093A1		O-RING
9	428095A1		ORIFICE

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
