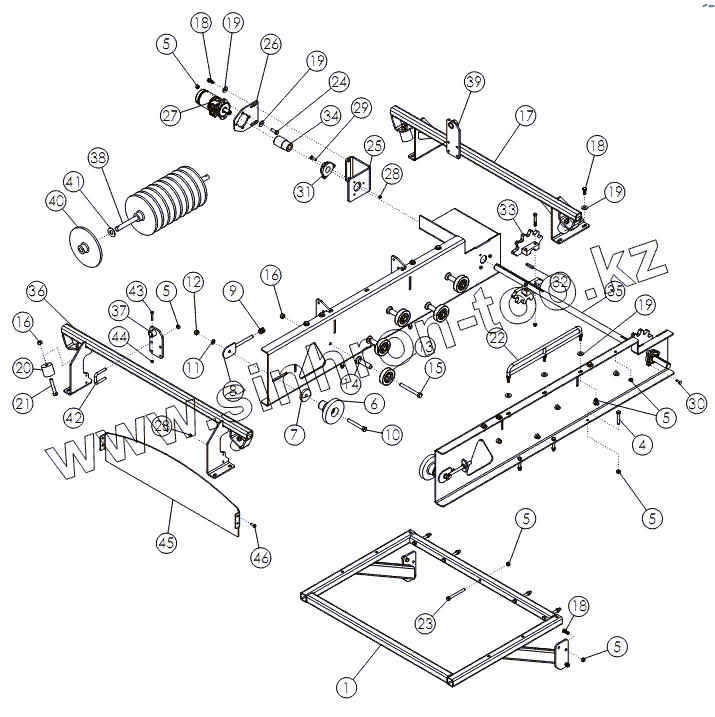

Каталог запасных частей к технике: Amity Wic Harvester 6 row 22w. WHEEL COVEYOR
1
4
5
5
5
5
5
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
18
19
19
19
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 58764 | WLDMT-CONVEYOR FRAME | |
| 2 | 73663 | WLDMT-CONVEYOR RH | |
| 3 | 73664 | WLMDT-CONVEYOR LH | |
| 4 | 1011611 | BOLT-HEX: .50 X 3.00 NC GR5 ZP | |
| 5 | 1027461 | NUT-TOPLOCK: .50 NC GR5 ZP | |
| 6 | 54042 | Ролик 6 | |
| 7 | 62932 | Проставка | |
| 8 | 59711 | TIGHTENER BOLT ZP | |
| 9 | 1026259 | NUT-JAM: .63 NC GR2 ZP | |
| 10 | 1013816 | BOLT-HEX .63 X 5.00 NC GR5 ZP | |
| 11 | 1011813 | WASHER-LOCK: .63 ZP | |
| 12 | 1011578 | NUT-HEX: .63 NC GR2 ZP | |
| 13 | 53854 | Ролик | |
| 14 | 64192 | Стойка ролика | |
| 15 | 1013068 | Болт 63x6.00 NC GR5 ZP | |
| 16 | 1016595 | NUT-TOPLOCK: .63 NC GR5 ZP | |
| 17 | 59695 | WLDMT-ROLLER MOUNT FRONT | |
| 18 | 1011606 | BOLT-HEX: .50 X 1.25 NC GR5 ZP | |
| 19 | 1014443 | WASHER-FLAT: .50 ZP | |
| 20 | 59454 | IDLER ROLLER | |
| 21 | 1014000 | BOLT-HEX .63 X 3.50 NC GR5 ZP | |
| 22 | 62047 | WLDMT-ELEVATOR GUARD | |
| 23 | 1011618 | BOLT-HEX: .50 X 5.00 NCGR5 ZP | |
| 24 | 1011607 | BOLT-HEX | |
| 25 | 62914 | BRACKET-MOTOR MOUNT | |
| 26 | 57843 | PLATE - FC | |
| 27 | 59449 | MOTOR-HYDRAULIC 20 IN^3/REV | |
| 28 | 1016999 | NUT-TOPLOCK: .38 NC GR5 ZP | |
| 29 | 58679 | BOLT-CRG: .38 X 1.50 NC GR5 ZP | |
| 30 | 1016362 | BOLT-CRG: .38 X 1.25 NC GR5 ZP | |
| 31 | 53662 | BEARING-FLANGE 1.44 | |
| 32 | 50152 | KEY .38 X .38 X 2.00 | |
| 33 | 53712 | SPROCKET-SPLIT 45MM | |
| 34 | 52867 | COUPLING | |
| 35 | 53392 | SHAFT - DRIVE | |
| 36 | 59702 | WLDMT-ROLLER MOUNT REAR | |
| 37 | 59725 | WLDMT-KNOCKOUT BRACKET REAR | |
| 38 | 59720 | SHAFT-KNOCKOUT WHEEL | |
| 39 | 59724 | WLDMT-KNOCKOUT BRACKET FRONT | |
| 40 | 52876 | KNOCKOUT WHEEL | |
| 41 | 1020685 | WASHER-FLAT: 1.00 ZP | |
| 42 | 65658 | U-BOLT .50 X 3 X 2.06 X 3 | |
| 43 | 1011285 | BOLT-HEX .31 X 2.00 NC | |
| 44 | 1030700 | NUT-TOPLOCK: .31 NC GR5 ZP | |
| 45 | 64918 | SHIELD-UPPER | |
| 46 | 1011600 | BOLT-HEX: .38 X 1.00 NC GR5 ZP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
