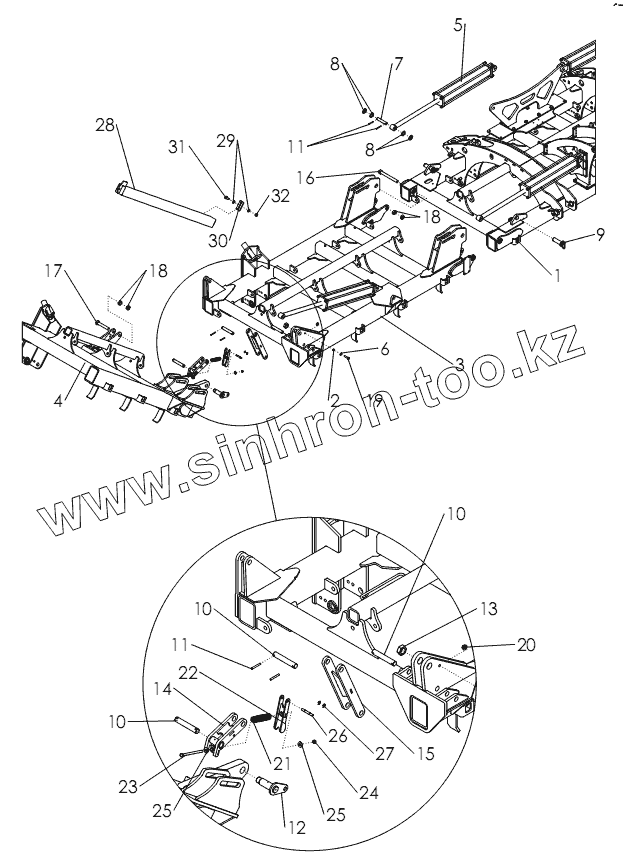

Каталог запасных частей к технике: Amity Single Disc Drill. WING LIFT ASSEMBLY 50' AND 60'

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
9
10
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
Позиция на иллюстрации Заводской номер детали Название детали
65860 65860 SEAL KIT FOR 1028469
35467 35467 WLDMT-BALLAST 4-TOOLBAR WING SDD
35393 35393 WLDMT-WING RH OUTER 60
35350 35350 WLDMT-WING LH OUTER 60
36241 36241 WLDMT-WING RH OUTER 50
35397 35397 WLDMT-WING RH INNER 60
35394 35394 WLDMT-WING LH INNER 60
36239 36239 WLDMT-WING RH INNER 50
1 35300 WLDMT-COMMON MAIN FRAME
2 65309 TUBE-SPACER ZP
3 36238 WLDMT-WING LH INNER 50
4 36240 WLDMT-WING LH OUTER 50
5 1028469 CYLINDER-HYDRAULIC 5.00 X 30.00
6 66498 WASHER-SAE .63 GR8 ZP
7 35325 PIN-WING 1.250 X 6.375 ZP
8 66499 WASHER-FLAT: SAE 1.25 GR8 YZP
9 35916 PIN-SDD WING LOCK ZP
10 35434 PIN-WING 1.250 X 7.500 ZP
11 1024048 PIN-ROLL 3/8-3.00 ZP
12 35938 WLDMT-PIN WING OUTER
13 35914 NUT-JAM: 1.50 NF NYLOCK GR2 ZP
14 36359 WLDMT-OUTER LINK W/MOUNT
15 35905 WLDMT-LINK INNER 50/60
16 33367 BOLT-HEX 1.25 X 11.00 SPECIAL
17 33370 BOLT-HEX 1.25 X 7.25 SPECIAL
18 34390 NUT-JAM 1.25 GR8 NC YZP
19 34906 BOLT-HEX .63 X 2.50 NC GR8 ZP
20 34864 NUT-TOPLOCK FLANGE .63 NC GR8 ZP
21 51692 SPRING
22 36361 WLDMT-SPRING ARM
23 1032514 BOLT-HEX
24 1027461 NUT-TOPLOCK: .50 NC GR5 ZP
25 1014443 WASHER-FLAT: .50 ZP
26 320297 PIN-KICKER PIVOT
27 320298 E-CLIP .500
28 36258 WLDMT-BALLAST 3-TOOLBAR WING SDD
29 35132 WASHER-FLAT: SAE .75 GR8 YZP
30 35810 PLATE-WASHER BALLAST
31 58367 BOLT-HEX .75 X 1.50 NC GR5 ZP
32 1011434 NUT-TOPLOCK
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
