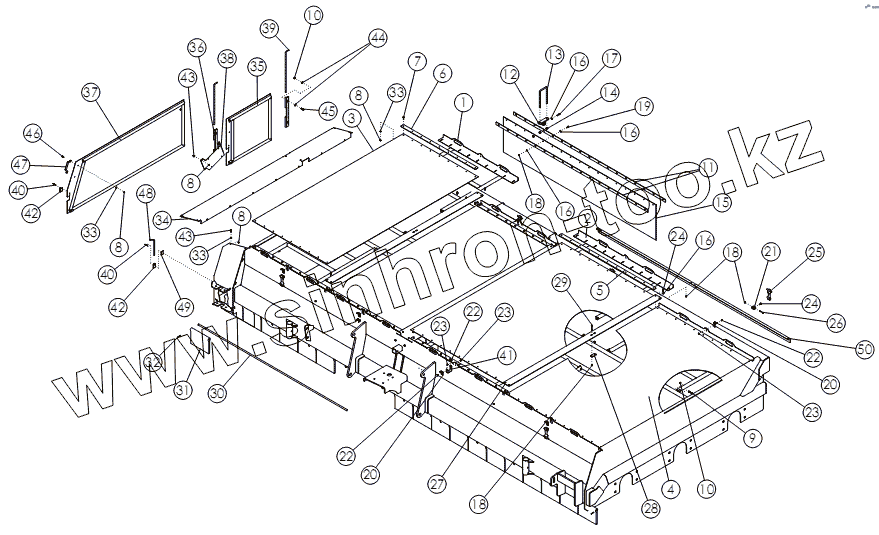

Каталог запасных частей к технике: Amity-2009 WIC 9 row. DOORS AND SHIELDS
1
2
3
4
5
6
7
8
8
8
8
9
10
10
11
11
12
13
14
15
15
16
16
16
16
17
18
18
18
19
20
20
21
22
22
22
23
23
23
24
24
25
26
27
28
29
30
31
32
33
33
33
34
35
36
37
38
39
40
40
41
42
42
43
43
44
45
46
47
48
49
50
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 64695 | 64695 | RETAINING SHAFT-SHIELD 0622 | |
| 1 | 68317 | WLDMT-DOOR | |
| 2 | 62509 | WLDMT-DOOR | |
| 3 | 68316 | TARP | |
| 4 | 62505 | TARP | |
| 5 | 62191 | BRACKET-BOLTING | |
| 6 | 68321 | BRACKET-BOLTING | |
| 7 | 1013423 | BOLT-HEX: .25 X 1.00 NC GR5 ZP | |
| 8 | 1030946 | NUT-TOPLOCK | |
| 9 | 1011725 | BOLT-HEX: .38 X 2.00 NC GR5 ZP | |
| 10 | 1016999 | NUT-TOPLOCK: .38 NC GR5 ZP | |
| 11 | 62285 | BAR-REAR FLAP RH | |
| 11 | 62284 | BAR-REAR FLAP LH | |
| 12 | 63448 | WLDMT-REAR FLAP MOUNT | |
| 13 | 63458 | U-BOLT: .50 X 9.25 X 4.00 X 9.25 ZP | |
| 14 | 1027461 | NUT-TOPLOCK: .50 NC GR5 ZP | |
| 15 | 62287 | FLAP-REAR LH | |
| 15 | 62286 | FLAP-REAR RH | |
| 16 | 1011583 | WASHER-FLAT: .31 ZP | |
| 17 | 1013424 | BOLT-HEX: .31 X 1.75 NC GR5 ZP | |
| 18 | 1030700 | NUT-TOPLOCK: .31 NC GR5 ZP | |
| 19 | 1011598 | BOLT-HEX: .31 X 1.00 NC GR5 ZP | |
| 20 | 52239 | HOOD BRACKET-LARGE | |
| 21 | 52237 | ANCHOR BRACKET-LARGE | |
| 22 | 1013462 | SCREW | |
| 23 | 1026591 | NUT-K-LOCK: №10-24NC GR2 ZP | |
| 24 | 1011597 | BOLT-HEX: .31 X .75 NC GR5 ZP | |
| 25 | 52238 | RUBBER HOOK LARGE | |
| 26 | 1011285 | BOLT-HEX .31 X 2.00 NC | |
| 27 | 68245 | PLATE-SPLICE | |
| 28 | 62182 | PLATE-BOLTING | |
| 29 | 1016132 | BOLT-HEX: .31 X 2.25 NC GR5 ZP | |
| 30 | 64859 | SHAFT-RETAINING SHIELD | |
| 31 | 64648 | FLAP-RUBBER WR | |
| 32 | 1012375 | PIN-COTTER: .19 X 1.50 NP | |
| 33 | 1020416 | WASHER-FLAT: .25 ZP | |
| 34 | 68201 | PANEL-TOP SHIELD | |
| 35 | 68386 | WLDMT-REAR SIDE DOOR | |
| 36 | 72680 | WLDMT-DOOR HINGE | |
| 37 | 68387 | WLDMT-FRONT SIDE DOOR | |
| 38 | 68324 | PLATE-DEF MANUAL CASE | |
| 39 | 51303 | DOOR HINGE ROD ZP | |
| 40 | 1011974 | RIVET-POP: .19 X .531 ZP | |
| 41 | 68320 | TARP BRACKET | |
| 42 | 69140 | WLDMT-DOOR LATCH ZP | |
| 43 | 68602 | BOLT-CRG: .25 X .75 NC GR5 ZP | |
| 44 | 1011828 | Шайба | |
| 45 | 1011601 | BOLT-HEX: .38 X 1.25 NC GR5 ZP | |
| 46 | 1011595 | BOLT-HEX: .25 X .75 NC GR5 ZP | |
| 47 | 68715 | HANDLE-GRAB DOOR | |
| 48 | 51304 | DOOR LOCK ZP | |
| 49 | 69141 | PLATE-DOOR LATCH SPACER | |
| 50 | 69014 | PLATE-DOOR CROSS LH 9R | |
| 50 | 69015 | PLATE-DOOR CROSS RH 9R |
