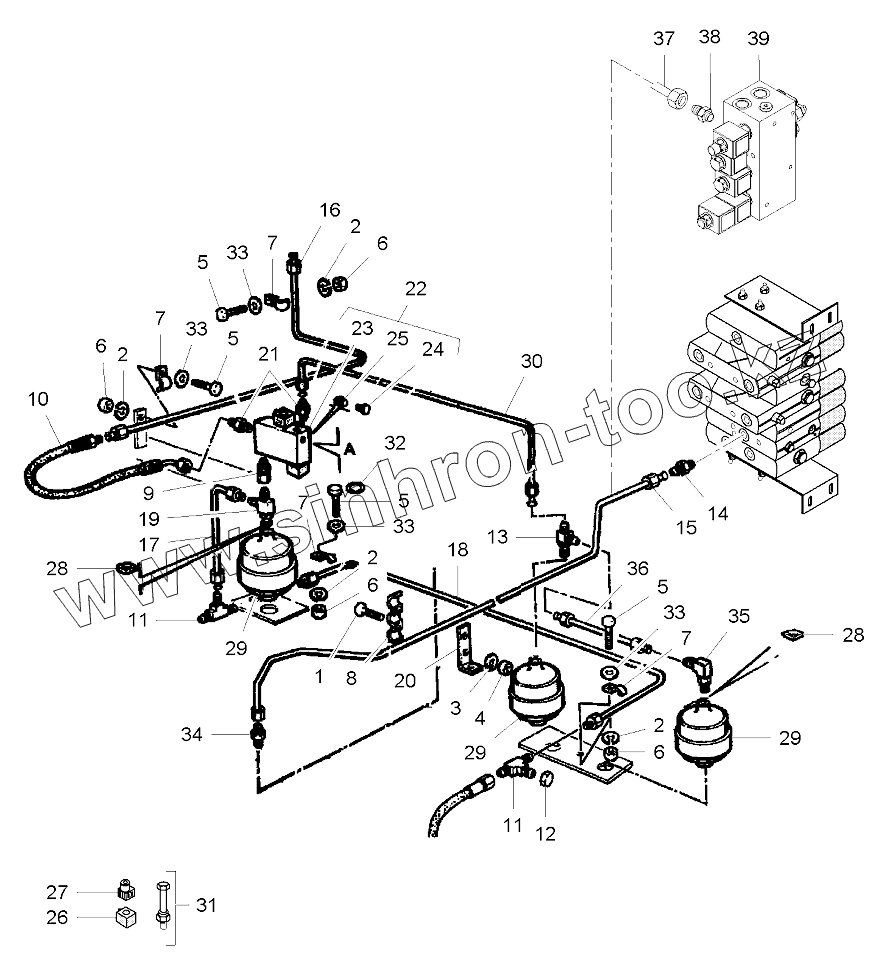

Каталог запасных частей к технике: AGCO Fendt-6300C часть2. Cutter Bar Lifting Autolevel
1
2
2
2
2
3
4
5
5
5
5
6
6
6
6
7
7
7
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
29
30
31
32
33
33
33
33
34
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LA10902621 | SCREW | |
| 2 | LA12034571 | LOCK WASHER | |
| 3 | LA12035670 | WASHER | |
| 4 | LA15896221 | NUT | |
| 5 | LA16043424 | CAPSCREW | |
| 6 | LA16100811 | NUT | |
| 7 | LA300113894 | COLLAR | |
| 8 | LA300136708 | COLLAR | |
| 9 | LA322127100 | CONNECTOR | |
| 10 | LA321420250 | HOSE | |
| 11 | LA321421650 | TEEPIECE | |
| 12 | LA321427650 | PLUG | |
| 13 | LA322110400 | TEEPIECE | |
| 14 | LA322103800 | CONNECTOR | |
| 15 | LA322890650 | TUBE | |
| 16 | LA322109150 | TUBE | |
| 17 | LA322109350 | TUBE | |
| 18 | LA322109450 | TUBE | |
| 19 | LA322110400 | TEEPIECE | |
| 20 | LA322111550 | SUPPORT | |
| 21 | LA322113600 | CONNECTOR | |
| 22 | LA322385400 | ELECTROVALVE | |
| 23 | LA322354250 | BLOCK | |
| 24 | LA322385350 | PLUG | |
| 25 | LA320573950 | VALVE | |
| 26 | LA322412950 | MAGNET | |
| 27 | LA322413000 | CONNECTOR | |
| 28 | LA322718050 | VALVE | |
| 29 | LA322718750 | ACCUMULATOR | |
| 30 | LA322763350 | TUBE | |
| 31 | LA322854750 | ELECTROVALVE | |
| 32 | LA350358729 | GASKET | |
| 33 | LA355500915 | WASHER | |
| 34 | LA321420150 | CONNECTOR | |
| 35 | LA322110500 | CONNECTOR | |
| 36 | LA322110350 | TUBE | |
| 37 | LA323213850 | TUBE | |
| 38 | LA321875100 | CONNECTOR | |
| 39 | VALVE | VALVE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
