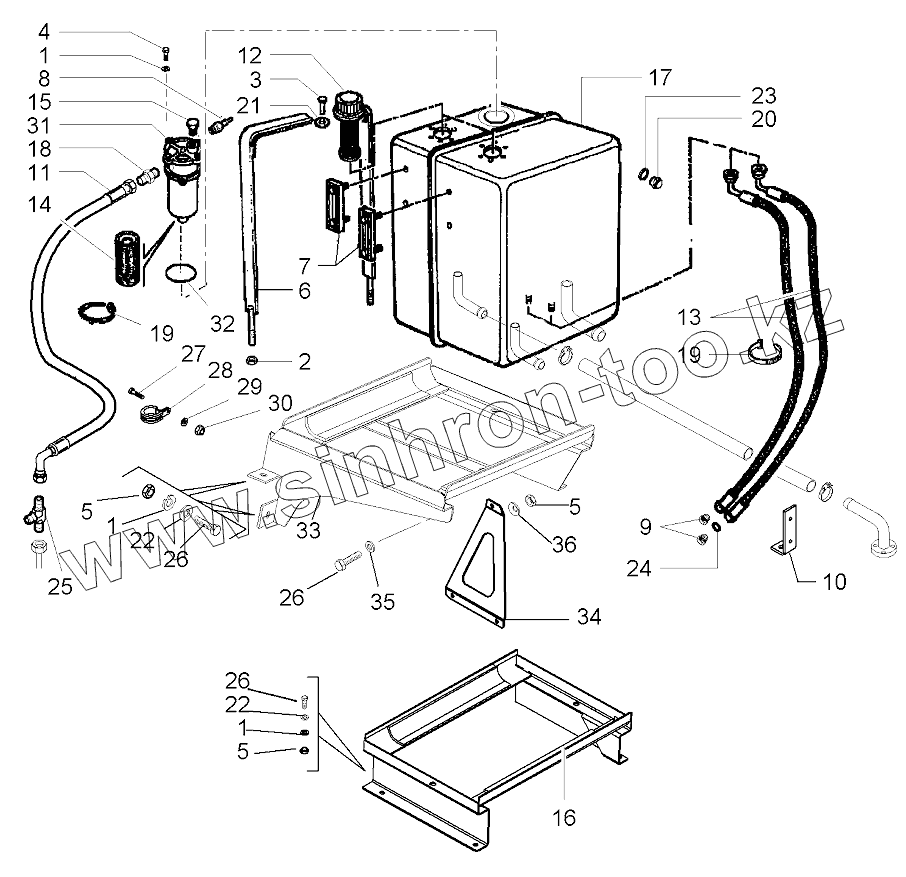

Каталог запасных частей к технике: AGCO Fendt-6300C часть1. Oil Tank
1
1
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24
25
26
26
26
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LA12034571 | LOCK WASHER | |
| 2 | LA12577211 | NUT | |
| 3 | LA13274214 | SCREW | |
| 4 | LA16043424 | CAPSCREW | |
| 5 | LA16100811 | NUT | |
| 6 | LA300118433 | CLIP | |
| 7 | LA311841100 | GAUGE | |
| 8 | LA320582450 | THERMOSTAT | |
| 9 | LA321871950 | PLUG | |
| 10 | LA321963750 | COLLAR | |
| 11 | LA322085250 | HOSE | |
| 12 | LA322131700 | BREATHER | |
| 13 | LA322159250 | HOSE | |
| 14 | LA322736650 | FILTER | |
| 15 | LA322747450 | PLUG | |
| 16 | LA322846350 | SUPPORT | |
| 17 | LA322943550 | HYDRAULIC TANK | |
| 18 | LA322968200 | CONNECTOR | |
| 19 | LA340481809 | CABLE TIE | |
| 20 | LA350359406 | PLUG | |
| 21 | LA355500615 | WASHER | |
| 22 | LA355500915 | WASHER | |
| 23 | LA322731950 | WASHER | |
| 24 | LA14462880 | GASKET | |
| 25 | LA322870950 | CONNECTOR | |
| 26 | LA16043421 | CAPSCREW | |
| 27 | LA10902421 | CAPSCREW | |
| 28 | LA10451090 | COLLAR | |
| 29 | LA355510615 | WASHER | |
| 30 | LA12574211 | NUT | |
| 31 | LA322736500 | FILTER | |
| 32 | LA14472380 | SEAL | |
| 33 | LA322846350 | SUPPORT | |
| 34 | LA323111250 | BRACKET | |
| 35 | LA355510820 | WASHER | |
| 36 | LA322358 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
