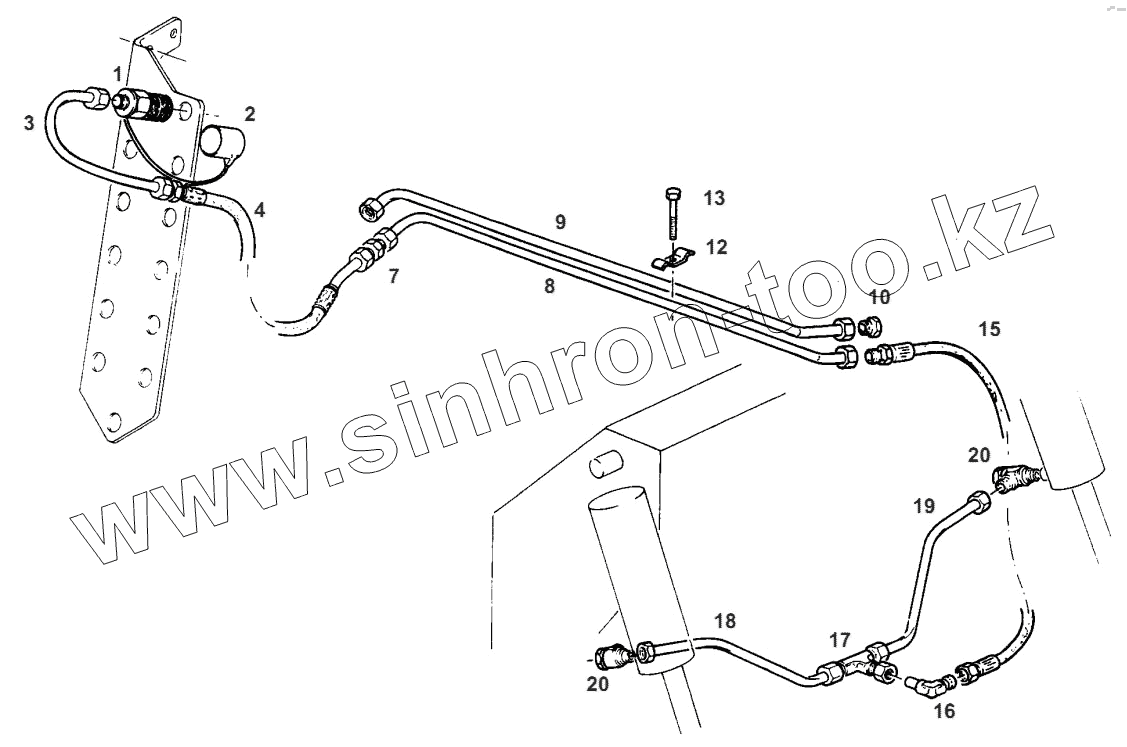

Каталог запасных частей к технике: AGCO Fendt-524 (Xylon) часть3. TUBE
1
1
2
3
3
3
4
7
8
8
8
9
9
9
10
12
13
15
16
16
16
17
18
18
18
18
19
19
19
19
20
20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | F380922030011 | SET OF GASKETS | |
| 1 | G309920030011 | COUPLING SLEEVE | |
| 2 | 380922030010 | DUST GUARD CAP | |
| 3 | H524920030030 | PRESSURE PIPE | |
| 3 | X596516239000 | GLAND NUT | |
| 3 | X592016202000 | CUTTING RING | |
| 4 | X591686500000 | PRESSURE HOSE | |
| 7 | X592616200000 | UNION | |
| 8 | H524920030020 | PRESSURE PIPE | |
| 8 | X592016202000 | CUTTING RING | |
| 8 | X596516239000 | GLAND NUT | |
| 9 | X592016202000 | CUTTING RING | |
| 9 | X596516239000 | GLAND NUT | |
| 9 | H524920030010 | PRESSURE PIPE | |
| 10 | X499513595000 | LOCKING PLUG | |
| 12 | 278951130280 | COLLAR | |
| 13 | X487521241000 | HEXAGON SCREW | |
| 15 | X591608800000 | PRESSURE HOSE | |
| 16 | X584316900000 | UNION | |
| 16 | X592016202000 | CUTTING RING | |
| 16 | X596516239000 | GLAND NUT | |
| 17 | X592716200000 | T-SOCKET | |
| 18 | X596516239000 | GLAND NUT | |
| 18 | X592016202000 | CUTTING RING | |
| 18 | H395921030030 | PRESSURE PIPE | |
| 18 | X596517739000 | GLAND NUT | |
| 19 | X596516239000 | GLAND NUT | |
| 19 | H395921030040 | PRESSURE PIPE | |
| 19 | X596517739000 | GLAND NUT | |
| 19 | X592016202000 | CUTTING RING | |
| 20 | X584102700000 | SWIVELLING FITTING |
