Fendt-524 (Xylon) часть3
HYD.CIRC. 3 CAT 3S

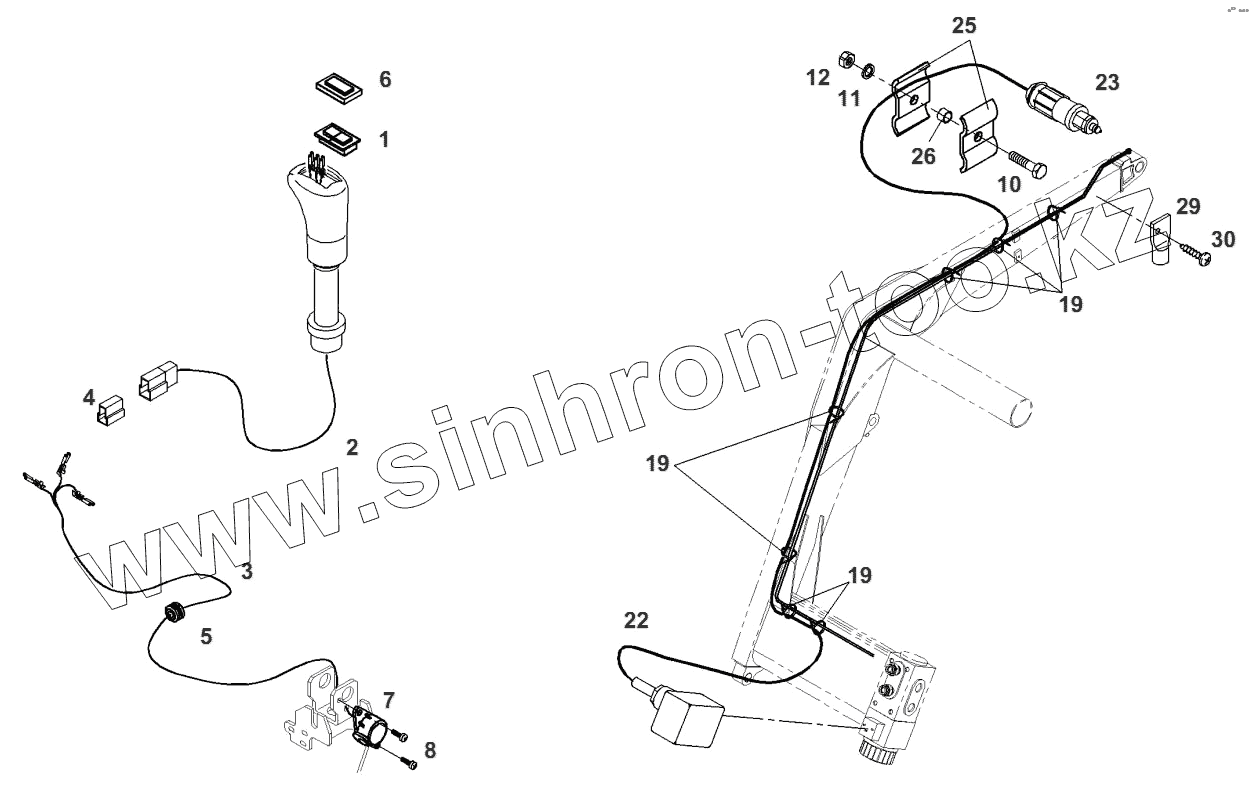

Каталог запасных частей к технике: AGCO Fendt-524 (Xylon) часть3. HYD.CIRC. 3 CAT 3S
