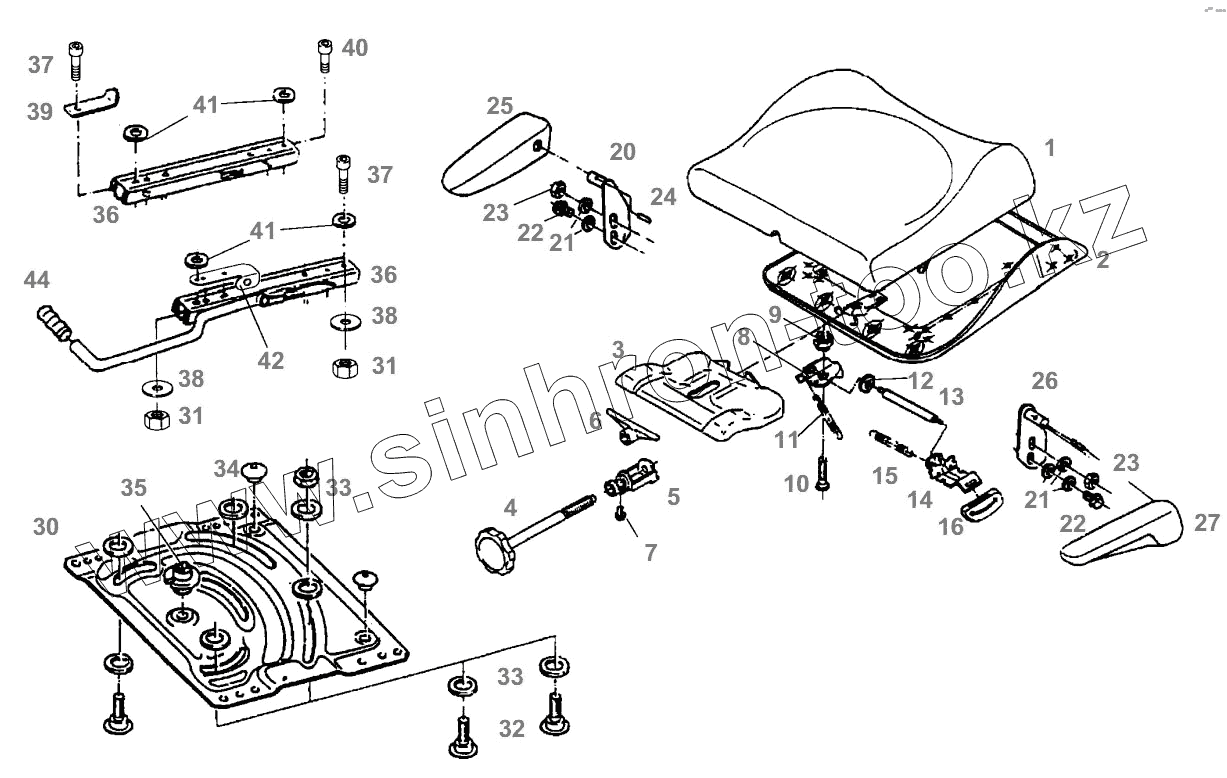

Каталог запасных частей к технике: AGCO Fendt-524 (Xylon) часть2. DRIVER SEAT
1
2
3
4
6
7
8
11
12
13
14
15
16
21
21
22
22
23
23
25
27
30
31
31
32
34
36
36
37
37
38
38
39
40
41
41
42
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | F312500031300 | SEAT CUSHION | |
| 2 | F312500031450 | SEAT PLATE | |
| 3 | F312500030470 | ADJUSTING DEVICE | |
| 4 | F312500030480 | SPINDLE | |
| 6 | F312500030490 | DRIVER | |
| 7 | F312500030530 | HEXAGON SCREW | |
| 8 | F198500030330 | LEVER | |
| 11 | F198500030270 | TENSION SPRING | |
| 12 | X454303308000 | DISC | |
| 13 | F312500031340 | BOLT | |
| 14 | F916500031160 | LEVER | |
| 15 | F916500031150 | TENSION SPRING | |
| 16 | F312500031510 | HANDLE | |
| 21 | X450006308000 | DISC | |
| 22 | F198500030180 | SCREW | |
| 23 | X434102401000 | LOCKING NUT | |
| 25 | G246500908010 | ARM REST | |
| 27 | G246500907010 | ARM REST | |
| 30 | F312500031410 | ROTARY PLATE | |
| 31 | X428202439000 | HEXAGON NUT | |
| 32 | F312500031520 | CLAMPING PARTS | |
| 34 | F198500030250 | SLIDING DISC | |
| 36 | F312500030640 | ADJUSTABLE RAIC SET | |
| 37 | F198500030870 | CYLIND. HEAD SCREW | |
| 38 | X454306308000 | DISC | |
| 39 | F312500030610 | ANGLE | |
| 40 | F205500030120 | CYLIND. HEAD SCREW | |
| 41 | F166500030270 | DISC | |
| 42 | F312500031540 | SUPPORT | |
| 44 | F312500031510 | HANDLE |
