Каталог запасных частей к технике: AGCO Fendt-524 (Xylon) часть1. ACTUATING CYLINDER
1
1
1
1
2
2
3
3
3
3
3
3
3
4
4
4
4
4
5
6
6
8
8
9
9
9
10
11
12
14
17
18
19
20
20
23
23
24
24
26
26
27
28
29
30
30
31
31
31
31
34
34
35
35
38
38
40
40
42
42
43
43

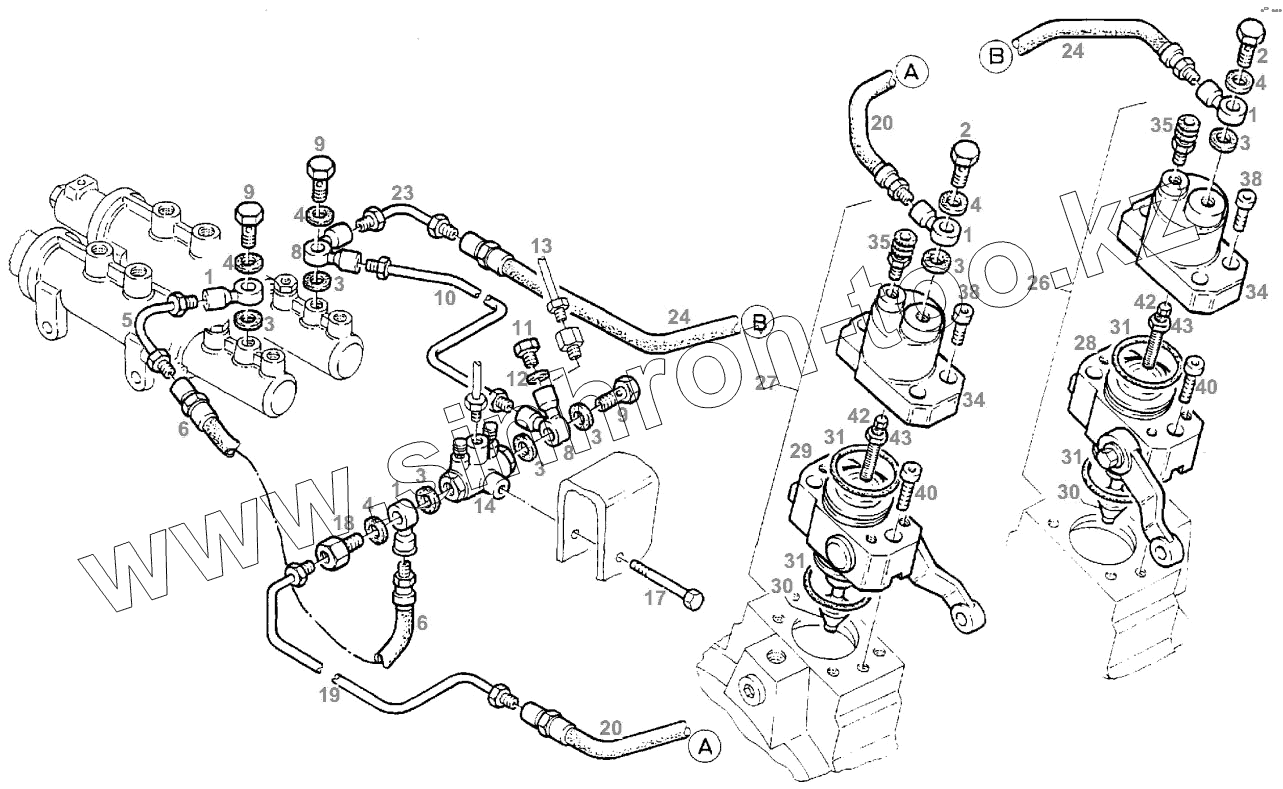

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | F281800570040 | RING ADAPTER | |
| 2 | F281800570050 | HOLLOW SCREW | |
| 3 | Х540004278000 | SEALING RING | |
| 4 | Х540004678000 | SEALING RING | |
| 5 | 524101070240 | BRAKE PIPE | |
| 6 | Н524101070110 | BRAKE HOSE | |
| 8 | Х596030400000 | RING ADAPTER | |
| 9 | F139110340110 | HOLLOW SCREW | |
| 10 | 524101070300 | BRAKE PIPE | |
| 11 | Х494203800000 | LOCK SCREW | |
| 12 | Х540004278000 | SEALING RING | |
| 14 | G524101070051 | AUXIL. CONTROL UNIT | |
| 17 | Х487528641000 | HEXAGON SCREW | |
| 18 | 816100610020 | HOLLOW SCREW | |
| 19 | 524101070250 | BRAKE PIPE | |
| 20 | Н822100100030 | BRAKE HOSE | |
| 23 | 524101070240 | BRAKE PIPE | |
| 23 | F524101070090 | SET OF GASKETS | |
| 24 | Н822100070200 | BRAKE HOSE | |
| 26 | G524101070112 | WHEEL CYLINDER | |
| 26 | F524101070090 | SET OF GASKETS | |
| 27 | G524101070102 | WHEEL CYLINDER | |
| 28 | F524101070160 | CYLINDER LOWER PART | |
| 29 | F524101070150 | CYLINDER LOWER PART | |
| 30 | F524101070080 | KEY | |
| 31 | F822100070040 | O-SEAL | |
| 34 | F524101070060 | CYLINDER HAED ASSY | |
| 35 | F524101070040 | AIR-VENT VALVE | |
| 38 | Х485007305000 | CYLIND. HEAD SCREW | |
| 40 | Х485013606000 | CYLIND. HEAD SCREW | |
| 42 | F524101070140 | THREADED PIN | |
| 43 | Х428202839000 | HEXAGON NUT |
