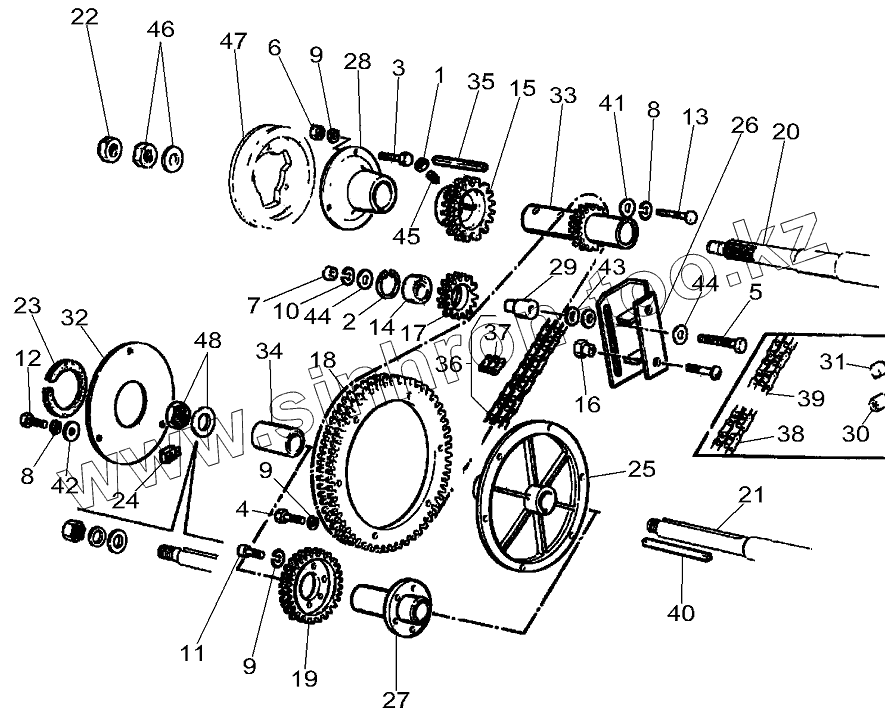

Каталог запасных частей к технике: AGCO Fendt-5220 часть2. Chain Drive For Drum
1
2
3
4
5
6
7
8
8
9
9
9
10
11
12
13
14
15
16
17
18
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
46
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LA10717311 | NUT | |
| 2 | LA11061076 | RING | |
| 3 | LA11106424 | SCREW | |
| 4 | LA11107221 | SCREW | |
| 5 | LA11113621 | SCREW | |
| 6 | LA11701721 | NUT | |
| 7 | LA11702921 | NUT | |
| 8 | LA12034571 | LOCK WASHER | |
| 9 | LA12034671 | WASHER | |
| 10 | LA12034771 | WASHER | |
| 11 | LA14420121 | SCREW | |
| 12 | LA16043424 | CAPSCREW | |
| 13 | LA16044224 | CAPSCREW | |
| 14 | LA28996530 | BEARING ASSY | |
| 15 | LA300114224 | GEAR | |
| 16 | LA300114230 | NUT | |
| 17 | LA300114232 | SPROCKET | |
| 18 | LA300114233 | GEAR | |
| 19 | LA300117408 | GEAR | |
| 19 | LA300117384 | GEAR | |
| 19 | LA300117407 | GEAR | |
| 20 | SHAFT | SHAFT | |
| 21 | SHAFT | SHAFT | |
| 22 | LA300136457 | NUT | |
| 23 | LA300137641 | GASKET | |
| 24 | LA320463950 | NUT | |
| 25 | LA320854650 | HUB | |
| 26 | LA321130950 | SUPPORT | |
| 27 | LA321131050 | HUB | |
| 28 | LA321149250 | HUB | |
| 29 | LA321149450 | SPACER | |
| 30 | LA321473650 | PLUG | |
| 31 | LA321629050 | PLUG | |
| 32 | LA322368150 | COVER | |
| 33 | LA322368450 | SLEEVE | |
| 34 | LA322368850 | SPACER | |
| 35 | LA322374250 | KEY | |
| 36 | LA340437633 | CHAIN | |
| 37 | LA340437624 | LINK | |
| 38 | LA340437631 | CHAIN | |
| 39 | LA340437628 | CHAIN | |
| 40 | LA353847130 | KEY | |
| 41 | LA355500920 | WASHER | |
| 42 | LA355510820 | WASHER | |
| 43 | LA355511210 | WASHER | |
| 44 | LA355511230 | WASHER | |
| 45 | LA366361218 | SCREW | |
| 46 | NUT | NUT | |
| 47 | PULLEY | PULLEY | |
| 48 | NUT | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
