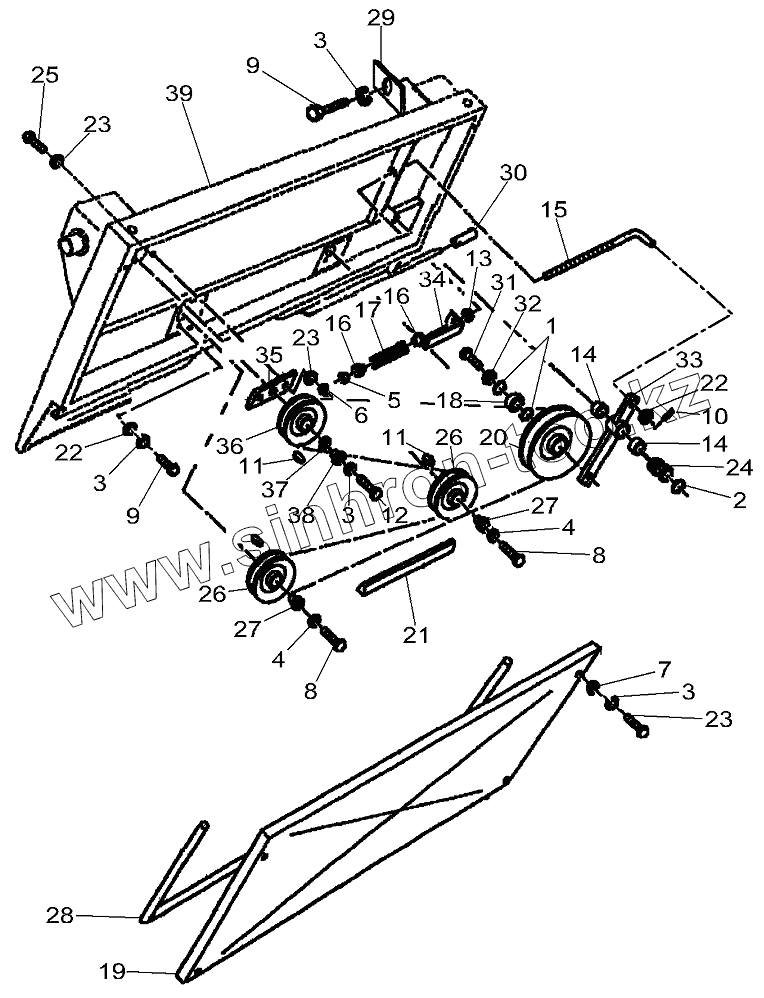

Каталог запасных частей к технике: AGCO Fendt-5220 часть2. Chaff Spreader Transmission
1
2
3
3
3
3
4
4
5
6
7
8
8
9
9
10
11
11
12
13
14
14
15
16
16
17
18
19
20
21
21
22
22
23
23
23
24
25
26
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LA11060576 | RING | |
| 2 | LA11067376 | RING | |
| 3 | LA12034571 | LOCK WASHER | |
| 4 | LA12034671 | WASHER | |
| 5 | LA12577511 | NUT | |
| 6 | LA16104111 | NUT | |
| 7 | LA80043127 | SCREW | |
| 8 | LA80043140 | SCREW | |
| 9 | LA80120104 | SCREW | |
| 10 | LA80130004 | SPLIT PIN | |
| 11 | LA80170005 | KEY | |
| 12 | LA80300381 | SCREW | |
| 13 | LA84043655 | NUT | |
| 14 | LA84056148 | BUSH | |
| 15 | LA84056165 | TIE ROD | |
| 16 | LA320998350 | BUSH | |
| 17 | LA320998550 | SPRING | |
| 18 | LA322638450 | BEARING ASSY | |
| 19 | LA322739800 | COVER | |
| 20 | LA322740050 | PULLEY | |
| 21 | LA340433985 | BELT | |
| 21 | LA340433986 | BELT | |
| 22 | LA355501320 | WASHER | |
| 23 | LA355510820 | WASHER | |
| 24 | LA355536210 | WASHER | |
| 25 | LA80336199 | SCREW | |
| 26 | LA84074791 | PULLEY | |
| 27 | LA84056153 | BUSH | |
| 28 | LA84056118 | SUPPORT | |
| 29 | LA84056151 | PLATE | |
| 30 | LA84056140 | SPACER | |
| 31 | LA89837786 | SCREW | |
| 32 | LA84056154 | WASHER | |
| 33 | LA84056787 | LEVER | |
| 34 | LA84056132 | PLATE | |
| 35 | LA84056128 | PLATE | |
| 36 | LA84074790 | PULLEY | |
| 37 | LA84056134 | WASHER | |
| 38 | LA84056137 | BUSH | |
| 39 | BODY | BODY |
