Каталог запасных частей к технике: AGCO Fendt-5220 часть1. Valve Chest - From Serial Number 551510031

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано Allis AA6.190 (2012) Fendt-5220 часть1 (2008) Fendt-5220 часть2 (2008) Fendt-524 (Xylon) часть1 (2012) Fendt-524 (Xylon) часть2 (2012) Fendt-524 (Xylon) часть3 (2012) Fendt-6300C часть1 (2008) Fendt-6300C часть2 (2008) Fendt-6300C часть3 (2008) Fendt-936 часть1 (2012) Fendt-936 часть2 (2012) Fendt-936 часть3 (2012)

Схема > Не выбрано Engine Cache Culbuteurs Intake Manifold Collecteur D'Echappement Nozzles Injection Pump Assy Fuel Filter - Up To 551510030 Fuel Filter - From Serial Number 551510031 Accumulator Hydraulic - Up To 551510030 Accumulator Hydraulic - From Serial Number 551510031 Fuel Filter - Up To 551510030 Fuel Filter - From Serial Number 551510031 Fuel Lines Fuel Lines Fuel Lines Lube Oil Lines Turbocharger - Up To 551510030 Turbocharger - From Serial Number 551510031 Oil Dipstick Oil Filters Water Pump Thermostat Engine Breathers Starter Motor Alternator Cables Cables - From Serial Number 551510031 V-Belt Electronic Control Unit Engine Installation - Up To 551510030 Engine Installation - From Serial Number 551510031 Engine Installation Engine Installation - Holder Engine Installation Engine Installation - Fan Engine Installation Engine Air Cleaner Exhaust Silencer Fuel Tank - Up To 551510030 Fuel Tank - From Serial Number 551510031 Fuel Tank - Holder Radiator Filter Radiator Filter Radiator Filter Radiator Filter Radiator Filter - Up To 551510026 Radiator Filter - From Serial Number 551510031 Radiator Filter Radiator Filter Radiator Filter Radiator Filter Radiator Filter Radiator Elements Filter Transmission Radiator Power Take-Off Power Take-Off Radiator Filter Intake Front Axle Front Axle Rear Axle - 4 Wd - Hydraulic Lines Rear Axle - 4 Wd Rear Axle - 4 Wd - Final Drive Rear Axle - 4 Wd - Valve Rear Axle - 4 Wd - Hydraulic Cylinder Rear Axle Support Rear Axle - Adjustable Rear Axle - Adjustable Rear Axle - Adjustable Reducers Shift Levers Shift Levers Brakes Brakes Pump Elements And Brake Compensation Valve Brakes Elements Parking Brake Parking Brake Elements Front Axle Tow Hook Tow Hook Chassis Crawler Tracks - 6 Rollers Chassis Crawler Tracks - 6 Rollers Chassis Crawler Tracks - 6 Rollers Chassis Crawler Tracks - 6 Rollers Chassis Crawler Tracks - 6 Rollers Chassis Crawler Tracks - 6 Rollers - Up To 551510026 Chassis Crawler Tracks - 6 Rollers - From Serial Number 551510027 Rollers Elements And Idler Wheels Chain Elements Chassis Crawler Tracks - 7 Rollers Chassis Crawler Tracks - 7 Rollers Chassis Crawler Tracks - 7 Rollers Chassis Crawler Tracks - 7 Rollers Chassis Crawler Tracks - 7 Rollers Chassis Crawler Tracks - 7 Rollers - Up To 551510026 Chassis Crawler Tracks - 7 Rollers - From Serial Number 5515100272 Hydrostatic Pump Hydrostatic Pump Hydrostatic Pump Elements Pump Drive Pump Drive Gear Box Gear Box Gear Box Gear Box Hydrostatic Motor Hydrostatic Motor Elements Oil Tank Oil Tank - Up To 551510030 Oil Tank - From Serial Number 551510031 Valve Chest - From Serial Number 551510031 Multifunction Lever For Hydrostatic Transmission Multifunction Lever For Hydrostatic Transmission Multifunction Lever For Hydrostatic Transmission Elevator Transmission Front Elevator Front Elevator - Control Pulley Front Elevator - Upper Shaft Front Elevator - Lower Roller Front Elevator Standard - Transmission Front Elevator Standard - Guard Front Elevator - Lower Shaft Front Elevator Standard Front Elevator - Roller, Chain, Beater Bar Front Elevator Integral - Overhang Front Elevator Cutter Bar Levelling System Cutter Bar Lifting Cutter Bar Lifting Cutter Bar Lifting Reverser Reverser Frame Drum Housing Drum Housing Drum Housing Drum Variator - Up To 551510030 Drum Variator - From Serial Number 551510031 Drum With Bars Peg Drum Beater Behind Drum Concave Control Drive Concave Control Drive Concave Spike Tooth Concave - Rice Spike Tooth Concave - Rice Concave, Corn, Mixed Crop Concave For Maize And Sun Flower - From Serial Number 551510027 Concave, Corn, Mixed Crop Conveying Concave Conveying Concave Thresing Mechanism Drive Without Multi Crop Separator Straw Walkers Case Straw Walkers Case Rear Body Rear Body Straw Walker Parts For Normals Soils Parts For Normals Soils Straw Walker Drive Straw Walker Drive Swather Rake Straw Chopper - Transmission Straw Chopper - Transmission Straw Chopper - Transmission Straw Chopper - Drive Clutch Straw Chopper - Drive Guard Straw Chopper - Supports Straw Chopper - Supports Straw Chopper - Body Stiffener Straw Chopper - Electric System Straw Chopper - Supports Straw Chopper - Chassis Straw Chopper - Chassis Straw Chopper - Chopper Drum Straw Chopper - Spreader Housing Straw Chopper - Deflectors Straw Chopper - Deflectors Straw Chopper - Straw Chopper Exclusion Device Grain Pan Grain Pan Drive Grain Pan Drive Shaker Shoe Shaker Shoe - Belt Tensioner Shaker Shoe Lower Shaker Shoe Lower Shaker Shoe Upper Shaker Shoe Grain Elevator - Normal Grain Elevator - Normal Grain Elevator - Normal Grain Elevator - Normal Tailings Elevator - Normal Tailings Elevator - Normal Tailings Elevator - Normal Tailings Elevator - Normal Tailings Elevator - Normal Fan - Up To 551510026 Fan - From Serial Number 551510027 Fan Fan Fan Variator Fan Variator Elements Grain Elevator Anthwear Chassis Grain Elevator Anthwear Grain Elevator Anthwear Chain Grain Elevator Anthwear Upper Transmission Tailings Elevator Anthwear Chassis Tailings Elevator Anthwear Tailings Elevator Anthwear Chain Tailings Elevator Anthwear Tailings Elevator Anthwear Auger Fan Speed Variator Electric Digital Control Upper Sieve, Adjustable Lower Sieve

1

2

3

4

5

6

7

8

9

10

11

12

13

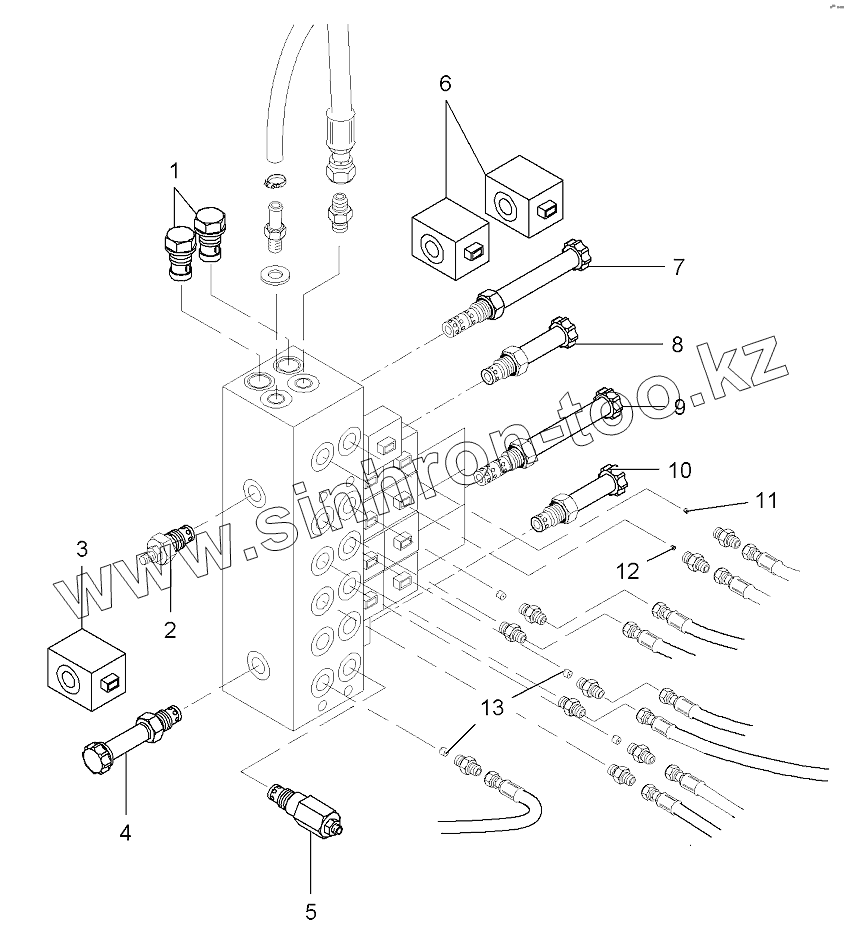

Позиция на иллюстрации	Заводской номер детали		Название детали
1	LA323165950		BANJO BOLT
2	LA323166250		TERMINAL
3	LA323109050		BLOCK
4	LA323170850		VALVE
5	LA323166350		VALVE
6	LA323109050		BLOCK
7	LA322816450		ELECTROVALVE
8	LA323097050		ELECTROVALVE
9	LA322771100		ELECTROVALVE
10	LA323170850		VALVE
11	LA323162750		CENTRALISER
12	LA323162450		CENTRALISER
13	LA322787550		DIAPHRAGM

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
