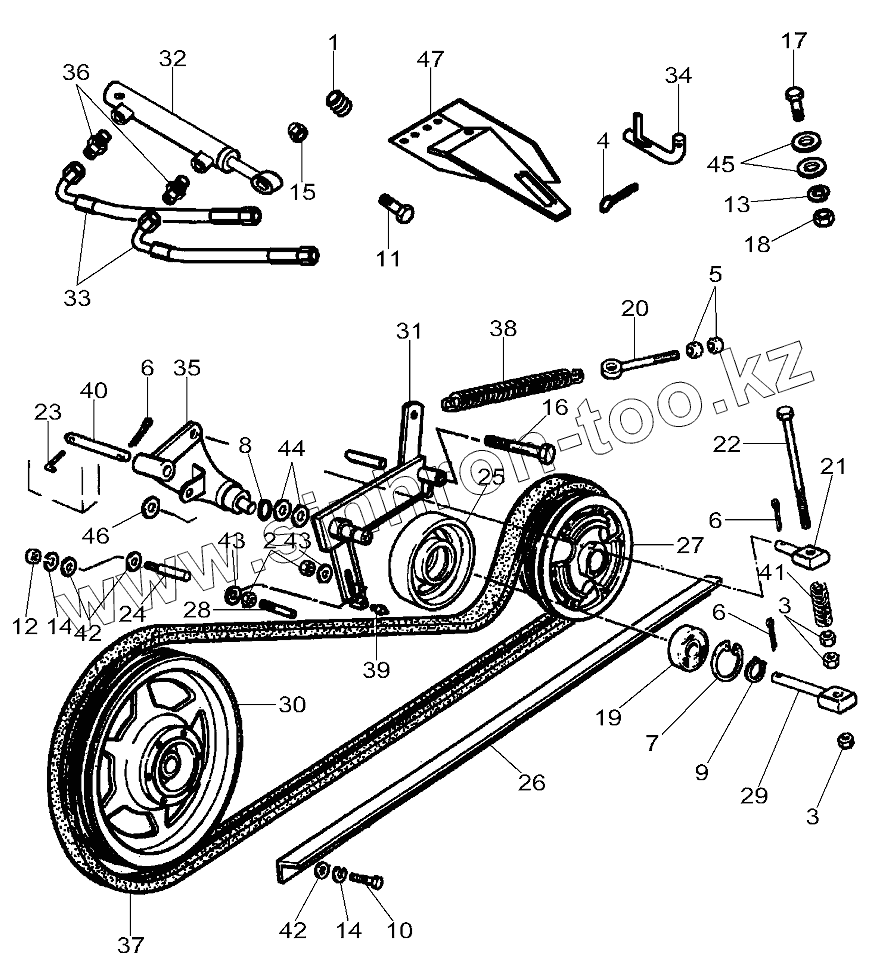

Каталог запасных частей к технике: AGCO Fendt-5220 часть1. Elevator Transmission
1
2
3
3
4
5
6
6
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
42
43
43
44
45
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LA10398480 | RING | |
| 2 | LA10717311 | NUT | |
| 3 | LA10717421 | NUT | |
| 4 | LA10733601 | SPLIT PIN | |
| 5 | LA10788714 | NUT | |
| 6 | LA10797001 | SPLIT PIN | |
| 7 | LA11060576 | RING | |
| 8 | LA11066476 | RING | |
| 9 | LA11067376 | RING | |
| 10 | LA11106221 | SCREW | |
| 11 | LA11114221 | SCREW | |
| 12 | LA11701721 | NUT | |
| 13 | LA12034571 | LOCK WASHER | |
| 14 | LA12034671 | WASHER | |
| 15 | LA12577511 | NUT | |
| 16 | LA15541721 | SCREW | |
| 17 | LA16043821 | CAPSCREW | |
| 18 | LA16100811 | NUT | |
| 19 | LA28042320 | BEARING ASSY | |
| 20 | LA300117689 | TIE ROD | |
| 21 | LA300136131 | KNUCKLE | |
| 22 | LA300136132 | TIE ROD | |
| 23 | LA300136233 | ROLL PIN | |
| 24 | LA300138006 | PIN | |
| 25 | LA320653650 | TENSIONER | |
| 26 | LA320706850 | SKATE | |
| 27 | LA320971950 | HUB | |
| 28 | LA321092750 | PIN | |
| 29 | LA321228650 | KNUCKLE | |
| 30 | LA321950550 | PULLEY | |
| 31 | LA322229050 | ARM | |
| 32 | LA322770900 | RAM | |
| 33 | LA322771650 | HOSE | |
| 33 | LA323060050 | HOSE | |
| 34 | LA322784050 | TIE ROD | |
| 35 | LA322784250 | LEVER | |
| 36 | LA322788600 | UNION | |
| 37 | LA344312128 | BELT | |
| 38 | LA350356539 | SPRING | |
| 39 | LA350357852 | NIPPLE | |
| 40 | LA350379273 | ROLL PIN | |
| 41 | LA353561157 | SPRING | |
| 42 | LA355501120 | WASHER | |
| 43 | LA355501330 | WASHER | |
| 44 | LA355501520 | WASHER | |
| 45 | LA355520830 | WASHER | |
| 46 | LA355532620 | WASHER | |
| 47 | SUPPORT | SUPPORT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
