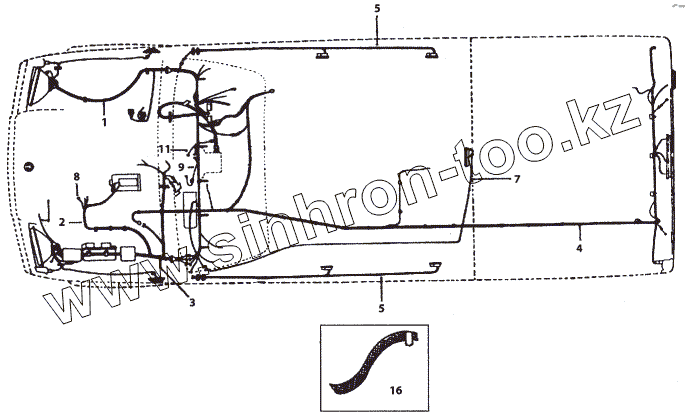

Каталог запасных частей к технике: Tata Telcoline-207. WIRING HARNESS
1
1
1
1
1
1
1
1
1
1
1
2
3
3
3
3
3
3
3
4
5
5
5
5
5
7
7
7
7
7
9
9
11
11
11
16
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2701 5460 01 54 | 2701 5460 01 54 | Wiring Harness, Belt | |
| 2701 5460 01 49 | 2701 5460 01 49 | Wiring Harness, Pig Tail, Earth | |
| 2653 5460 01 72 | 2653 5460 01 72 | Wiring Harness, Electronic Control Unit (ECU) (Transfer Case) | |
| 2704 5460 01 09 | 2704 5460 01 09 | Wiring Harness, Transfer Case | |
| 2704 5460 01 20 | 2704 5460 01 20 | Wiring Harness, Transfer Case | |
| 1 | 2830 5460 01 01 | Wiring Harness, Cabin | |
| 1 | 2830 5460 01 01 | Wiring Harness, Cabin | |
| 1 | 2826 5460 01 22 | Wiring Harness, Cabin | |
| 1 | 2826 5460 01 56 | Wiring Harness, Cabin | |
| 1 | 2721 5460 01 37 | Wiring Harness, Cabin | |
| 1 | 2830 5460 01 16 | Wiring Harness, Cabin | |
| 1 | 2653 5460 01 65 | Wiring Harness, Cabin | |
| 1 | 2653 5460 01 73 | Wiring Harness, Cabin | |
| 1 | 2653 5460 01 66 | Wiring Harness, Cabin | |
| 1 | 2653 5460 01 69 | Wiring Harness, Cabin | |
| 1 | 2826 5460 01 21 | Wiring Harness, Cabin | |
| 2 | 2826 5460 01 06 | Wiring Harness, Engine | |
| 3 | 2830 5460 01 10 | Wiring Harness, Front | |
| 3 | 2826 5460 01 44 | Wiring Harness, Front | |
| 3 | 2721 5460 01 39 | Wiring Harness, Front | |
| 3 | 2653 5460 01 70 | Wiring Harness, Front | |
| 3 | 2721 5460 01 40 | Wiring Harness, Front | |
| 3 | 2830 5460 01 15 | Wiring Harness, Front | |
| 3 | 2830 5460 01 09 | Wiring Harness, Front | |
| 4 | 2701 5460 01 51 | Wiring Harness, Tail | |
| 5 | 2826 5460 01 50 | Wiring Harness, Co-Driver Side Rear Door | |
| 5 | 2826 5460 01 51 | Wiring Harness, Rear Door Co-Driver Side | |
| 5 | 2826 5460 01 49 | Wiring Harness, Co - Driver Door | |
| 5 | 2826 5460 01 48 | Wiring Harness, Driver Side Door | |
| 7 | 2701 5460 01 93 | Wiring Harness, Roof | |
| 7 | 2653 5460 01 49 | Wiring Harness, Roof, Double Lamp & Stop Lamp | |
| 7 | 2701 5461 01 01 | Wiring Harness, Roof, Double Lamp & Stop Lamp | |
| 7 | 2653 5460 01 62 | Wiring Harness, Roof, Heating & Demisting | |
| 7 | 2653 5460 01 55 | Wiring Harness, Roof, Heating & Demisting | |
| 9 | 2701 5460 01 52 | Wiring Harness, Blower 3 Pole | |
| 9 | 2701 5460 01 53 | Wiring Harness, Blower 4 Pole | |
| 11 | 2654 5461 01 17 | Wiring Harness, Control Housing, A/C & Heating | |
| 11 | 2654 5462 01 48 | Wiring Harness, Control Housing, A/C & Heating | |
| 11 | 2658 5462 01 44 | Wiring Harness, Control Housing, A/C & Heating | |
| 16 | 2698 5410 99 01 | Earth Strap |
