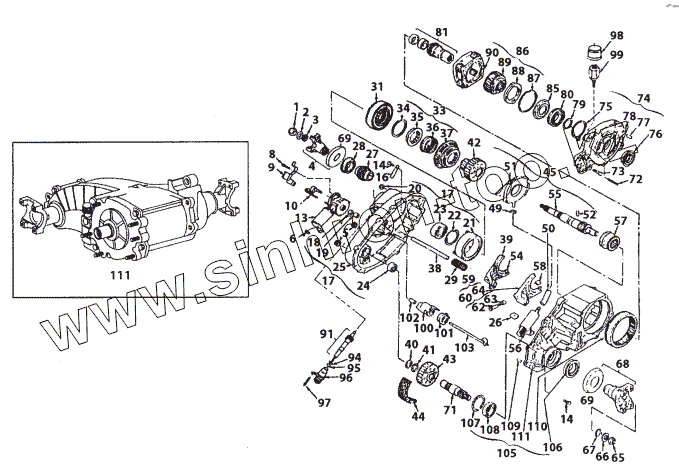

Каталог запасных частей к технике: Tata Telcoline-207. TRANSFER CASE

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
8
9
10
13
14
14
17
17
18
19
20
21
23
24
25
26
27
28
29
31
33
34
35
36
37
38
39
40
41
42
43
44
45
49
50
51
54
55
56
57
58
59
65
66
67
68
69
69
71
72
73
74
75
76
77
78
78
79
80
81
85
87
88
89
90
91
94
95
96
97
98
99
100
101
102
103
105
106
107
108
109
110
111
111
Позиция на иллюстрации Заводской номер детали Название детали
2704 5420 99 24 2704 5420 99 24 ECU, transfer case
268728159903 268728159903 Adaptor, Selection
2687 2815 43 01 2687 2815 43 01 Clip Connector
2687 2800 82 04 2687 2800 82 04 Protective Cover
1 2687 2835 65 01 Nut
2 2687 2835 92 01 Washer
3 2687 2835 78 01 Seal , Oil
4 2687 2835 01 02 Yoke Assy Single Carden
5 2687 2870 72 01 Plug, Pipe
6 2687 2870 32 01 Bolt, Hex. Head
8 2687 2870 32 02 Bolt, Hex. Head
9 2687 2870 33 01 Bracket, Sensor and Harness
10 2687 2870 01 01 Sensor Assy
13 2687 2870 01 02 Motor Assy
14 2687 2815 32 01 Bolt, Hex. Head
17 2687 2815 01 01 Assy Cover
18 2687 2815 78 01 Seal, Oil
19 2687 2815 34 01 Bearing Sleeve
20 2687 2815 65 01 Nut, Hex.
21 2687 2815 01 02 Coil Assy, Clutch
23 2687 2815 31 01 Bearing Annular
24 2687 2815 31 02 Bearing Needle
25 2687 2815 38 01 Cover, Transfer Case
26 2687 2815 99 01 Magnet
27 2687 2820 54 01 Gear Speedo 8T
28 2687 2820 78 01 Seal, Oil
29 2687 2840 87 01 Spring Return
31 2687 2825 37 01 Housing Clutch
33 2687 2825 01 01 Lockup Assy, 2W - 4W
34 2687 2825 43 01 Ring Snap
35 2687 2825 55 01 Hub Lockup
36 2687 2825 87 01 Spring, Sleeve Return
37 2687 2825 51 01 Collar, Lockup
38 2687 2840 79 01 Shaft, Rail
39 2687 2840 46 01 Fork, Lockup
40 2687 2825 43 02 Ring Snap
41 2687 2825 86 01 Spacer
42 2687 2825 89 01 Sprocket, Drive
43 2687 2825 89 02 Sprocket, Driven
44 2687 2825 46 01 Chain, Drive
45 2687 2825 01 02 Shaft and Pump Assy
49 2687 2825 42 01 Clamp, Hose
50 2687 2825 46 02 Coupling, Hose
51 2687 2825 99 01 Gerotor Pump
54 2687 2840 34 01 Facing Lock up fork
55 '268728257901 Shaft Output
56 2687 2825 82 01 Stainer, Oil
57 2687 2825 55 02 Hub, Reduction
58 2687 2840 34 02 Facing, Reduction Fork
59 2687 2840 01 01 Fork Assy , Reduction Shift
65 2687 2835 65 01 Nut
66 2687 2835 92 01 Washer
67 2687 2835 78 01 Seal , Oil
68 2687 2835 01 01 Yoke Assy Double Carden
69 2687 2835 82 01 Deflector, Dust
71 2687 2825 79 02 Shaft, Front Output
72 2687 2820 88 01 Stud
73 2687 2815 32 01 Bolt, Hex. Head
74 2687 2820 01 01 Adaptor Assy , Front
75 2687 2820 43 01 Ring, Snap
76 2687 2820 78 01 Seal, Oil
77 2687 2820 67 01 Pin, Spirol
78 2687 2820 47 01 Adaptor, Front
78 2687 2815 99 03 Adaptor, Selection
79 2687 2820 43 02 Ring, Snap
80 2687 2820 31 01 Bearing, Annular
81 2687 2820 01 02 Shaft Assy, Input
85 2687 2820 86 01 Washer, Thrust
87 2687 2820 43 03 Snap Ring
88 2687 2820 86 02 Plate, Thrust
89 2687 2820 54 02 Gear, Sun
90 2687 2820 01 04 Carrier Assy , Planet
91 2687 2820 01 05 Assy Speedo Gear and Shaft
94 2687 2820 78 02 Seal, Speedo
95 2687 2820 77 01 O Ring
96 2687 2820 38 01 Body, Speedo
97 2687 2820 32 01 Bolt
98 2687 2815 99 02 Breather Assy
99 2687 2815 99 03 Adaptor, Selection
100 2687 2840 52 01 Cam, Electric Shift
101 2687 2840 87 02 Spring, Torsion
102 2687 2840 86 01 Spacer
103 2687 2840 79 02 Shaft, Shift
105 2687 2815 01 03 Case Assy, Transfer
106 2687 2820 78 01 Seal, Oil
107 2687 2815 43 02 Ring, Snap
108 2687 2815 31 01 Bearing Annular
109 2687 2815 67 01 Pin, Dowel
110 2687 2815 54 01 Gear, Ring
111 2687 2800 02 29 Divgi Warner Transfer Case (Elect. Shift)
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
