Каталог запасных частей к технике: Tata Telcoline-207. PROPELLER SHAFT (4x4)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BYD Chevrolet Daewoo Geely Great Wall Hyundai Lifan Tata АЗЛК ВАЗ ГАЗ ЗАЗ ЗИЛ ИЖ ЛуАЗ РАФ УАЗ

Модель Не выбрано Telcoline-207 (2006)

Схема > Не выбрано ENGINE COMPLETE HALF BLOCK ENGINE GASKET KITS ENGINE GASKET KITS CYLINDER BLOCK CYLINDER HEAD AND COVER OIL SEPARATOR ARRANGEMENT MOVING PARTS ENGINE TIMING FUEL INJECTION EQUIPMENT FUEL INJECTOR FUEL FILTER (MICO) FUEL FILTER (LUCAS) AIR FILTER INLET AND EXHAUST MANIFOLD TURBOCHARGER INTERCOOLER (DOUBLE PIPE) EXHAUST GAS REGULATOR (EGR) ENGINE ELECTRICAL EQUIPMENT (NON A/C) ENGINE ELECTRICAL EQUIPMENT (WITH A/C) ENGINE LUBRICATION ENGINE COOLING AC AND POWER STEERING PUMP MOUNTING POWER STEERING DRIVE (NON A/C) ENGINE SUSPENSION CLUTCH GEAR BOX GEAR AND SHAFTS GEAR SHIFTING ARRANGEMENT (G-76) ADAPTOR HOUSING TRANSFER CASE CLUTCH CONTROLS REPAIR KITS - CLUTCH MASTER CYLINDER (CMC) AND CLUTCH SLAVE CYLINDER (CSC) (BRAKES INDIA) REPAIR KITS - CLUTCH MASTER CYLINDER (CMC) AND CLUTCH SLAVE CYLINDER (CSC) (KBX) ACCELERATOR PEDAL FRAME (SINGLE CAB, 4x2 AND 4x4) FRAME (CREW CAB, 4x2 AND 4x4) FRONT SUSPENSION FRONT ANTI-ROLL BAR REAR SPRING REAR SHOCK ABSORBER FRONT AXLE (4x2) FRONT AXLE (4x4) HUB LOCK ASSY REAR AXLE WHEEL RIM AND SPARE WHEEL CARRIER PROPELLER SHAFT (4x2) PROPELLER SHAFT (4x4) FRONT WHEEL (DISC) BRAKE (BRAKES INDIA) REAR WHEEL BRAKE (BRAKES INDIA) TANDEM MASTER CYLINDER (BRAKES INDIA) FRONT WHEEL DISC BRAKE (KBX) REAR WHEEL BRAKE (KBX) TANDEM MASTER CYLINDER (KBX) VACUUM BOOSTER PARKING BRAKE (CONSOLE MOUNTED) HYDRAULIC BRAKE LINES RHD HYDRAULIC BRAKE LINES LHD STEERING LINKAGES STEERING WHEEL AND MOUNTING POWER STEERING AGGREGATES POWER STEERING PIPE LINES RHD POWER STEERING PIPE LINES LHD FUEL SYSTEM EXHAUST SYSTEM RADIATOR ELECTRICAL EQUIPMENT ELECTRICAL EQUIPMENT ELECTRICAL EQUIPMENT WIRING HARNESS ASSY. SINGLE CAB COMPLETE ASSY. CAB COMPLETE (CREW CAB) ASSY. BODY SHELL COMPLETE (SINGLE CAB) ASSY. BODY SHELL COMPLETE (CREW CAB) SHEET METAL PARTS (SINGLE CAB) SHEET METAL PARTS (CREW CAB) SHEET METAL PARTS (SINGLE CAB) SHEET METAL PARTS (CREW CAB) SHEET METAL PARTS WIND SHIELD GLASS DASH BOARD CONSOLE ASSY. LOAD BODY (SINGLE CAB) ASSY. LOAD BODY (CREW CAB) TAIL GATE LOCKING SYSTEM DOOR DOOR (LOCKING SYSTEM) DOOR GLASS AND WINDOW REGULATOR REAR DOOR (CREW CAB) REAR DOOR GLASS AND WINDOW REGULATOR REAR DOOR LOCKING SYSTEM INTERNAL AND EXTERNAL FITMENTS INTERNAL AND EXTERNAL FITMENTS INTERNAL AND EXTERNAL FITMENTS WIND SHIELD WIPING SYSTEM HEATING AND DEMISTING AC + HEATING AND DEMISTING SYSTEM VENTILATION AND CONTROL BONNET BUMPER BODY MOUNTING SEATS AND SEAT BELTS

1

1

2

4

5

6

9

9

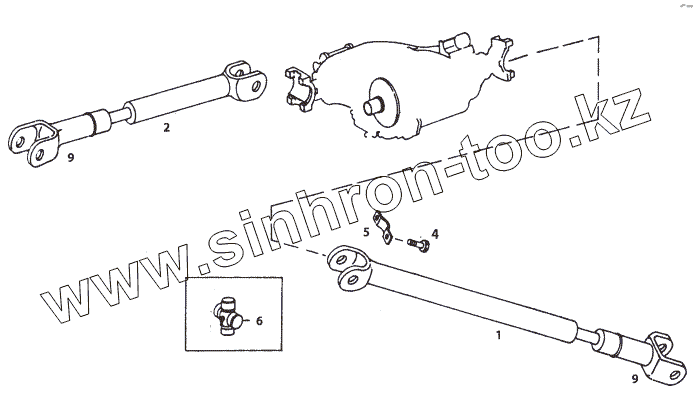

Позиция на иллюстрации	Заводской номер детали		Название детали
2654 4110 01 04	2654 4110 01 04		Bearing Strap & Bolt Kit Consists of :
1	2653 4100 01 01		Assy. Propeller Shaft (Monotron) 28 WB
1	2721 4100 01 01		Assy. Propeller Shaft (Monotron) 31 WB
2	2660 4111 01 01		Assy. Propeller Shaft (Transfer Case To Front Axle)
4	Cap Screw		Cap Screw
5	Bearing Strap		Bearing Strap
6	2698 4110 01 01		Assy UJ Kit
9	2698 4111 01 18		Slip Yoke

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
