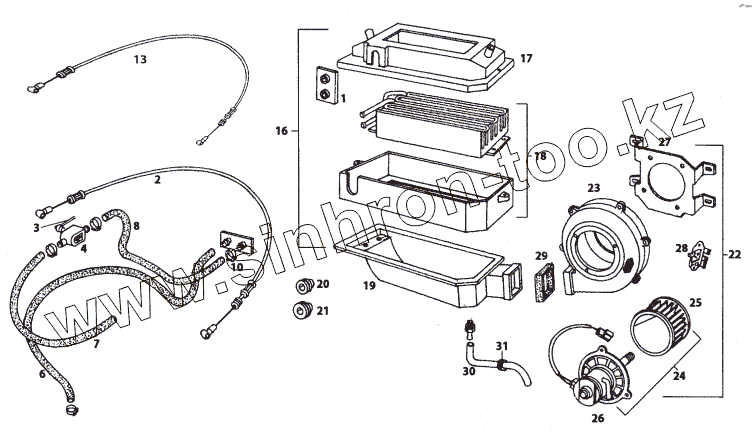

Каталог запасных частей к технике: Tata Telcoline-207. HEATING AND DEMISTING
1
2
3
4
6
7
10
13
16
16
16
17
18
19
19
20
21
22
22
23
23
24
24
25
27
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2658 5461 01 91 | 2658 5461 01 91 | Assy A/c Cable Set (iv) Mssl-RHD Subros | |
| 2658 5461 01 93 | 2658 5461 01 93 | Assy A/c Cable Set | |
| 2658 8350 01 09 | 2658 8350 01 09 | Kit Sub Heater (Aluminium Heater Coil ) RHD | |
| 2658 8350 01 01 | 2658 8350 01 01 | Kit Sub Heater (Aluminium Heater Coil )LHD | |
| 2654 8350 58 03 | 2654 8350 58 03 | Rubber Tube (17 ID X 360) | |
| 2654 8350 58 14 | 2654 8350 58 14 | Hose (For Water Valve To Heater) | |
| 2654 8310 63 19 | 2654 8310 63 19 | Retainer (Ventilation Cable) | |
| 2659 8311 01 65 | 2659 8311 01 65 | Assy Fresh Air Valve LHD(without Cable) | |
| 1 | 2654 8330 63 17 | Cover (For Heater Cut Out) | |
| 2 | 2659 8330 01 64 | Assy Push Pull Cable - Red | |
| 3 | 2654 8350 01 09 | Assy Lever (N/D Type Water Valve | |
| 4 | 2654 8350 01 08 | Assy Water Valve-(5113600605) | |
| 6 | 2659 8350 58 09 | Rubber Hose (Heater Outlet-Eng) | |
| 7 | 2654 8350 58 13 | Rubber Hose (water Valve To Thermostat) | |
| 10 | 2654 8330 01 77 | Hose Clamp-25 | |
| 13 | 2659 8330 01 11 | Assy Push Pull Cable | |
| 16 | 2659 8350 01 12 | Assy Heater Unit (Aluminium) Subros RHD | |
| 16 | 2659 8311 01 24 | Assy Fresh Air Valve RHD(without Cable) | |
| 16 | 2659 8350 01 13 | Assy Heater Unit (Aluminium) Subros LHD | |
| 17 | 2654 8311 01 19 | Assy Adaptor | |
| 18 | 2659 8350 01 15 | Assy Coil Housing with Aluminium Heater | |
| 19 | 2659 8312 01 90 | Assy Air Duct -RHD (M/s Subros) | |
| 19 | 2659 8312 01 92 | Assy Air Duct -LHD (M/s Subros) | |
| 20 | 2659 8311 63 18 | Grommet. | |
| 21 | 2659 8311 63 17 | Grommet | |
| 22 | 2658 8340 01 38 | Assy Blower Complete (4 Pole Resistor) | |
| 22 | 2658 8340 01 40 | Assy Blower Complete (4 Pole Resistor). | |
| 23 | 2651 8310 01 61 | Assy Blower Housing - LHD | |
| 23 | 2659 8311 01 60 | Assy Blower Housing - RHD | |
| 24 | 2654 5470 99 04 | Fan Blower LHD-(Subros) | |
| 24 | 2658 5470 99 11 | Fan Blower RHD-(Sb 116221-0280) | |
| 25 | 2658 5470 99 10 | Blower Motor-(Sb-162500-557) | |
| 27 | 2659 8313 01 62 | Assy Bracket Blower Mounting-LHD | |
| 27 | 2659 8313 01 61 | Assy Bracket Blower Mounting-RHD | |
| 28 | 2658 5470 99 01 | Blower Resistor (Sb 146810) | |
| 29 | 2659 8311 63 51 | Pipe Grommet (Coil Housing) | |
| 30 | 2659 8311 63 92 | Drain Hose With Grommet | |
| 31 | 2659 8310 63 50 | Grommet (For Drain Tube)(Subros). |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
