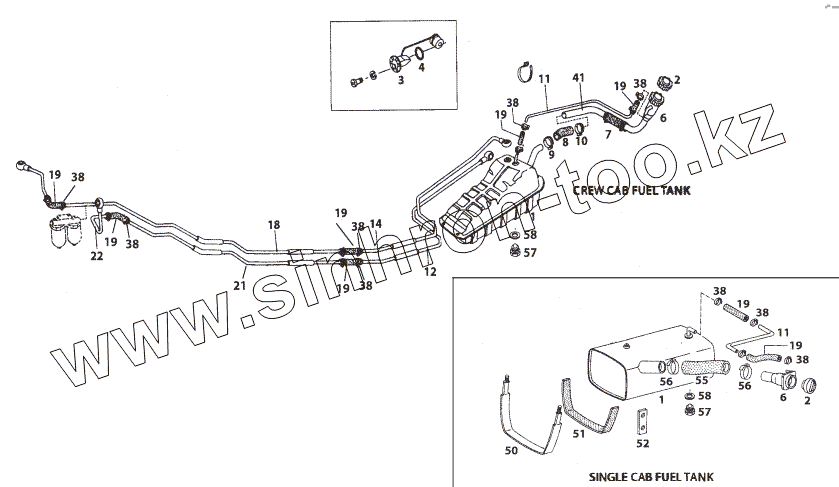

Каталог запасных частей к технике: Tata Telcoline-207. FUEL SYSTEM
1
1
1
1
1
2
2
2
3
3
4
6
6
6
6
7
8
9
10
11
11
11
12
12
12
12
12
14
14
14
14
14
18
18
19
19
19
19
19
19
19
19
19
19
19
19
19
21
21
21
21
21
22
22
22
38
38
38
38
38
38
38
38
38
38
38
38
38
41
50
51
52
55
56
56
57
57
58
58
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2701 4710 82 31 | 2701 4710 82 31 | Bracket | |
| 2658 4710 01 09 | 2658 4710 01 09 | Assy. Suction Tube with Screen Filter | |
| 2654 4710 01 56 | 2654 4710 01 56 | Assy. Suction Tube with Screen Filter | |
| 1 | 2701 4710 01 36 | Assy. Fuel Tank Complete | |
| 1 | 2654 4710 01 87 | Assy. Fuel Tank Complete | |
| 1 | 2701 4710 01 36 | Assy. Fuel Tank Complete | |
| 1 | 2654 4710 01 87 | Assy. Fuel Tank Complete | |
| 2 | 2698 4710 01 20 | Assy. Fuel Tank Cap (Metallic) | |
| 2 | 2820 4710 01 01 | Assy. Fuel Tank Cap (Plastic) | |
| 3 | 2654 5420 99 85 | Tank Unit (for Fuel Tank) | |
| 3 | 2658 5420 99 06 | Tank Unit (for Fuel Tank) | |
| 4 | 1705 050130 2 | 'O' Ring 40.9x2.65 | |
| 6 | 2654 4710 01 89 | Assy. Filler Neck Top with Bracket (for Plastic Cap) | |
| 6 | 2654 4710 01 80 | Assy. Filler Neck Top with Bracket (for Metallic Cap) | |
| 6 | 2701 4710 01 42 | Assy. Filler Neck Top with Bracket (for Plastic Cap) | |
| 7 | 2701 4710 77 07 | Rubber Hose (Fuel Filling) | |
| 8 | 2701 4710 77 08 | Rubber Hose (Fuel Filling) | |
| 9 | 2701 4710 82 26 | Clamp (Fuel Filling Pipe) | |
| 10 | 1428 050060 8 | Hose Clamp 60 | |
| 11 | 2654 4710 01 76 | Assy. Breather Tube | |
| 11 | 2721 4760 01 03 | Assy. Breather Tube | |
| 12 | 2653 4760 01 01 | Assy. Suction Line (Tank to Hose), 1st Pipe | |
| 12 | 2658 4760 01 04 | Assy. Suction Line (Tank to Hose), 1st Pipe | |
| 12 | 2721 4760 01 01 | Assy. Suction Line (Tank to Hose), 1st Pipe | |
| 12 | 2701 4760 69 01 | Assy. Suction Line (Tank to Hose), 1st Pipe | |
| 12 | 2654 4760 01 22 | Assy. Suction Line (Tank to Hose), 1st Pipe | |
| 14 | 2654 4760 01 21 | Assy. Return Tube (Hose to Tank) | |
| 14 | 27014760 69 02 | Return Line, 1st Pipe | |
| 14 | 27214760 01 02 | Assy. Return Tube (Hose to Tank) | |
| 14 | 2658 4760 01 03 | Assy. Return Tube (Hose to Tank) | |
| 14 | 2653 4760 01 02 | Assy. Return Tube (Hose to Tank) | |
| 18 | 27014760 69 02 | Return Line, 1st Pipe | |
| 18 | 2653 4760 69 02 | Return Line, 1st Pipe | |
| 19 | 312 476 00 26 | Rubber Hose | |
| 19 | 312 476 00 26 | Rubber Hose | |
| 19 | 312 476 00 26 | Rubber Hose | |
| 19 | 312 476 00 26 | Rubber Hose | |
| 19 | 312 476 00 26 | Rubber Hose | |
| 21 | 2653 4760 69 01 | Suction Tube, 2nd Pipe | |
| 21 | 2653 4760 69 01 | Suction Tube, 2nd Pipe | |
| 21 | 2701 4760 69 01 | Assy. Suction Line (Tank to Hose), 1st Pipe | |
| 21 | 2653 4760 69 01 | Suction Tube, 2nd Pipe | |
| 21 | 2653 4760 69 01 | Suction Tube, 2nd Pipe | |
| 22 | 2654 4760 01 01 | Assy. Suction Pipe (Hose to Filter),3rd Pipe | |
| 22 | 2659 4760 01 26 | Assy. Suction Pipe (Hose to Filter),3rd Pipe | |
| 22 | 2654 4760 01 01 | Assy. Suction Pipe (Hose to Filter),3rd Pipe | |
| 38 | 1428 0500161 | Hose Clip 16 | |
| 38 | 1428 050016 1 | Hose Clip 16 | |
| 38 | 1427 020170 0 | Hose Clip 17 | |
| 38 | 1428 0500161 | Hose Clip 16 | |
| 38 | 1428 0500161 | Hose Clip 16 | |
| 41 | 2701 4710 01 31 | Assy. Pipe (Fuel Filling) | |
| 50 | 2654 4750 01 11 | Assy. Strap | |
| 51 | 2654 4750 77 10 | Rubber Packing | |
| 52 | 2654 4750 77 06 | Rubber Packing | |
| 55 | 2654 4710 77 23 | Hose (Fuel Filling) | |
| 56 | 1428 050060 8 | Hose Clamp 60 | |
| 57 | 1608 100180 8 | Sealing Plug AM 18 x 1.5 | |
| 58 | 1622 071028 2 | Sealing Washer 18 x 22 |
