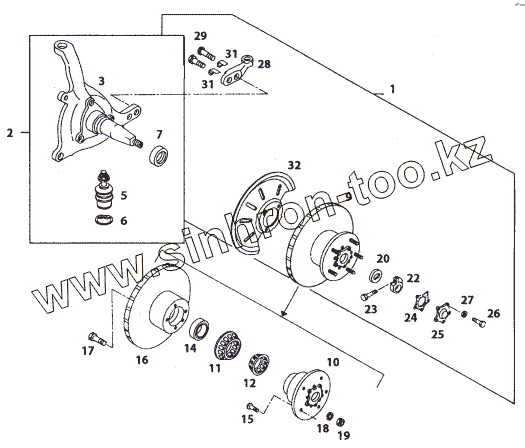

Каталог запасных частей к технике: Tata Telcoline-207. FRONT AXLE (4x2)
1
1
2
2
3
3
5
6
7
9
10
11
12
14
15
16
17
18
19
20
22
23
24
25
26
27
28
28
29
31
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2699 3300 01 02 | Assy Front Axle LH | |
| 1 | 2699 3300 01 01 | Assy Front Axle RH | |
| 2 | 2699 3320 01 01 | Stub Axle With Seal Race - RH | |
| 2 | 2699 3320 01 02 | Stub Axle With Seal Race - LH | |
| 3 | 2699 3320 51 01 | Stub Axle - RH | |
| 3 | 2699 3320 51 02 | Stub Axle - LH | |
| 5 | 2654 3320 01 04 | Assy. Ball Joint Std | |
| 6 | 1455 060550 4 | Ext. Ciclip | |
| 7 | 2654 3340 86 01 | Seal Race | |
| 9 | 2654 3340 01 02 | Assy Hub With Brake Disc (Front) | |
| 10 | 2654 3340 37 02 | Hub (Front) | |
| 11 | 2654 3340 31 04 | Taper roller Bearing Inner | |
| 12 | 2654 3340 31 03 | Taper roller Bearing outer | |
| 14 | 2654 3340 78 01 | Oil Seal | |
| 15 | 2654 4010 67 02 | Wheel Mounting Bolt | |
| 16 | 2654 4210 37 04 | Brake Disc (Ventilated) | |
| 17 | 2654 4280 32 01 | Bolt (Brake Disc) | |
| 18 | 1252 069805 0 | Spring Washer B10 | |
| 19 | 1205 229601 1 | Hex Nut M10 | |
| 20 | 2654 3340 92 01 | Thrust Washer | |
| 22 | 2654 3320 51 07 | Split Nut | |
| 23 | 1141 140820 7 | Cap Screw M8x20 | |
| 24 | 2654 3340 77 01 | Gasket | |
| 25 | 2654 3340 82 02 | Hub Cover | |
| 26 | 1141 140612 3 | Cap Screw M6x12 | |
| 27 | 1252 129802 1 | Spring Washer 6 | |
| 28 | 2699 3380 51 04 | Tie Rod Arm - LH | |
| 28 | 2699 3380 51 03 | Tie Rod Arm - RH | |
| 29 | 2654 3380 32 09 | Bolt (Steering Arm Mounting) | |
| 31 | 1258 060130 6 | Tab Washer 13 | |
| 32 | 2654 3320 82 02 | Dust Shield |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
