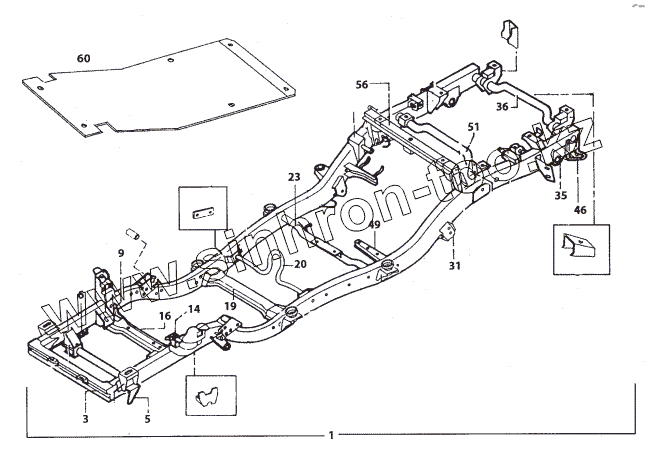

Каталог запасных частей к технике: Tata Telcoline-207. FRAME (CREW CAB, 4x2 AND 4x4)
1
1
3
5
6
6
9
9
14
16
19
20
23
31
35
36
46
49
51
56
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2654 3170 01 04 | 2654 3170 01 04 | Assy. Cross Runner (For Fixing Lamps) | |
| 2653 3100 82 01 | 2653 3100 82 01 | Front Skirt | |
| 2653 3120 01 37 | 2653 3120 01 37 | Assy. Rear Underrun Protection Device (RUPD) | |
| 2699 3210 01 54 | 2699 3210 01 54 | Assy. Bracket RH (Lower Wishbone Mtg., Frt Susp.) | |
| 2699 3210 01 53 | 2699 3210 01 53 | Assy. Bracket LH (Lower Wishbone Mtg., Frt Susp.) | |
| 1 | 2721 3100 01 04 | Assy. Frame 4 X 4 with RUPD (31 WB) | |
| 1 | 2701 3100 01 28 | Assy. Frame 4 X 2 with RUPD (31 WB) | |
| 3 | 2698 3120 01 10 | Assy. Front Cross Member | |
| 4 | 2660 3210 01 14 | Assy. Cross Member, Front Susp. | |
| 5 | 2660 3140 99 01 | Towing Hook (Front) | |
| 6 | 2660 3280 01 04 | Assy. Bracket RH (Anti - Roll Bar) | |
| 6 | 2660 3280 01 03 | Assy. Bracket LH (Anti - Roll Bar) | |
| 9 | 2699 3210 01 59 | Assy. Bracket LH (Upper Wishbone Mtg., Frt Susp.) | |
| 9 | 2699 3210 01 60 | Assy. Bracket RH (Upper Wishbone Mtg., Frt Susp.) | |
| 14 | 2653 3170 01 04 | Assy. Fuel Filter Mtg. Bracket | |
| 16 | 2660 3210 01 03 | Assy. Cross Member, Front | |
| 19 | 2699 3120 82 80 | Cross Member, Engine Mtg. Rear | |
| 20 | 2654 3121 01 14 | Assy. Tube (for Gear Box Extension Mtg.) | |
| 23 | 2653 3120 01 35 | Assy. Centre Bearing Cross Member | |
| 31 | 2654 3240 01 13 | Assy. Spring Hanger Bracket Front (Rear, Spring) | |
| 35 | 2654 3240 01 08 | Assy. Spring Hanger Bracket Rear (Rear Spring) | |
| 36 | 2653 3120 01 43 | Assy. End Cross Member | |
| 46 | 2653 3120 01 38 | Assy. Bracket, Towing Hook Rear & RUPD | |
| 49 | 2721 4710 01 03 | Assy. Bracket (Fuel Tank Mtg. Front) | |
| 51 | 2721 3120 01 02 | Assy Cross Member Tube (Fuel Tank Mtg. Rear) | |
| 56 | 2721 3120 01 08 | Assy. Cross Runner (Load Body Mtg.) | |
| 60 | 2653 3170 01 03 | Assy. Noise Shield |
