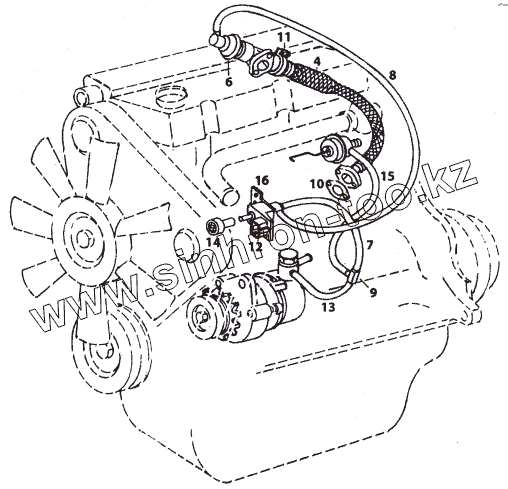

Каталог запасных частей к технике: Tata Telcoline-207. EXHAUST GAS REGULATOR (EGR)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BYD Chevrolet Daewoo Geely Great Wall Hyundai Lifan Tata АЗЛК ВАЗ ГАЗ ЗАЗ ЗИЛ ИЖ ЛуАЗ РАФ УАЗ

Модель Не выбрано Telcoline-207 (2006)

Схема > Не выбрано ENGINE COMPLETE HALF BLOCK ENGINE GASKET KITS ENGINE GASKET KITS CYLINDER BLOCK CYLINDER HEAD AND COVER OIL SEPARATOR ARRANGEMENT MOVING PARTS ENGINE TIMING FUEL INJECTION EQUIPMENT FUEL INJECTOR FUEL FILTER (MICO) FUEL FILTER (LUCAS) AIR FILTER INLET AND EXHAUST MANIFOLD TURBOCHARGER INTERCOOLER (DOUBLE PIPE) EXHAUST GAS REGULATOR (EGR) ENGINE ELECTRICAL EQUIPMENT (NON A/C) ENGINE ELECTRICAL EQUIPMENT (WITH A/C) ENGINE LUBRICATION ENGINE COOLING AC AND POWER STEERING PUMP MOUNTING POWER STEERING DRIVE (NON A/C) ENGINE SUSPENSION CLUTCH GEAR BOX GEAR AND SHAFTS GEAR SHIFTING ARRANGEMENT (G-76) ADAPTOR HOUSING TRANSFER CASE CLUTCH CONTROLS REPAIR KITS - CLUTCH MASTER CYLINDER (CMC) AND CLUTCH SLAVE CYLINDER (CSC) (BRAKES INDIA) REPAIR KITS - CLUTCH MASTER CYLINDER (CMC) AND CLUTCH SLAVE CYLINDER (CSC) (KBX) ACCELERATOR PEDAL FRAME (SINGLE CAB, 4x2 AND 4x4) FRAME (CREW CAB, 4x2 AND 4x4) FRONT SUSPENSION FRONT ANTI-ROLL BAR REAR SPRING REAR SHOCK ABSORBER FRONT AXLE (4x2) FRONT AXLE (4x4) HUB LOCK ASSY REAR AXLE WHEEL RIM AND SPARE WHEEL CARRIER PROPELLER SHAFT (4x2) PROPELLER SHAFT (4x4) FRONT WHEEL (DISC) BRAKE (BRAKES INDIA) REAR WHEEL BRAKE (BRAKES INDIA) TANDEM MASTER CYLINDER (BRAKES INDIA) FRONT WHEEL DISC BRAKE (KBX) REAR WHEEL BRAKE (KBX) TANDEM MASTER CYLINDER (KBX) VACUUM BOOSTER PARKING BRAKE (CONSOLE MOUNTED) HYDRAULIC BRAKE LINES RHD HYDRAULIC BRAKE LINES LHD STEERING LINKAGES STEERING WHEEL AND MOUNTING POWER STEERING AGGREGATES POWER STEERING PIPE LINES RHD POWER STEERING PIPE LINES LHD FUEL SYSTEM EXHAUST SYSTEM RADIATOR ELECTRICAL EQUIPMENT ELECTRICAL EQUIPMENT ELECTRICAL EQUIPMENT WIRING HARNESS ASSY. SINGLE CAB COMPLETE ASSY. CAB COMPLETE (CREW CAB) ASSY. BODY SHELL COMPLETE (SINGLE CAB) ASSY. BODY SHELL COMPLETE (CREW CAB) SHEET METAL PARTS (SINGLE CAB) SHEET METAL PARTS (CREW CAB) SHEET METAL PARTS (SINGLE CAB) SHEET METAL PARTS (CREW CAB) SHEET METAL PARTS WIND SHIELD GLASS DASH BOARD CONSOLE ASSY. LOAD BODY (SINGLE CAB) ASSY. LOAD BODY (CREW CAB) TAIL GATE LOCKING SYSTEM DOOR DOOR (LOCKING SYSTEM) DOOR GLASS AND WINDOW REGULATOR REAR DOOR (CREW CAB) REAR DOOR GLASS AND WINDOW REGULATOR REAR DOOR LOCKING SYSTEM INTERNAL AND EXTERNAL FITMENTS INTERNAL AND EXTERNAL FITMENTS INTERNAL AND EXTERNAL FITMENTS WIND SHIELD WIPING SYSTEM HEATING AND DEMISTING AC + HEATING AND DEMISTING SYSTEM VENTILATION AND CONTROL BONNET BUMPER BODY MOUNTING SEATS AND SEAT BELTS

4

6

7

8

9

10

12

12

13

14

15

16

Позиция на иллюстрации	Заводской номер детали		Название детали
2547 1411 99 05	2547 1411 99 05		Adaptor, Solenoid Valve Mtg Bkt.
4	2547 1411 01 09		Assy. EGR Tube
6	2547 1411 01 17		Assy. EGR Valve
7	2547 1411 58 07		Hose (220 mm Long)
8	2547 1411 58 10		Hose (1160 mm Long) (Solenoid Valve to EGR Valve)
9	2790 1411 99 02		T-Connector
10	2790 1410 53 04		Gasket, EGR Valve
12	2790 1411 99 01		Assy. Solenoid Valve
12	2790 1411 99 04		Assy. Solenoid Valve
13	2547 1411 58 07		Hose (220 mm Long)
14	2790 1411 77 01		Protective Sleeve, Solenoid Valve
15	2547 1411 58 06		Hose (250 mm Long)
16	2547 1411 01 16		Assy. Bracket, Solenoid Valve Mtg. on FIP
