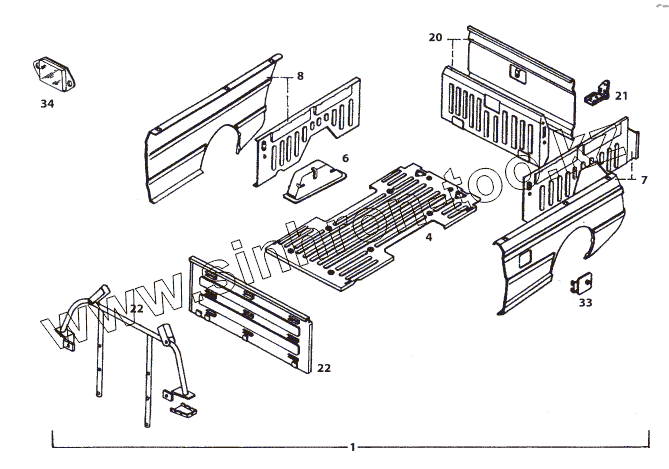

Каталог запасных частей к технике: Tata Telcoline-207. ASSY. LOAD BODY (SINGLE CAB)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
6
7
8
20
21
22
22
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2653 7000 01 25BG | 2653 7000 01 25BG | Assy. Load Body Complete With Fitments RHD, | |
| 2654 7000 63 15 | 2654 7000 63 15 | Mudguard Liner RH | |
| 2654 7000 63 05 | 2654 7000 63 05 | Mudguard Liner LH | |
| 2653 7000 63 18 | 2653 7000 63 18 | Mudflap rear with T | |
| 2653 7000 63 03 | 2653 7000 63 03 | Mudflap rear with T | |
| 2653 7000 63 02 | 2653 7000 63 02 | Liner Inner RH (Rear Wheel Arch) | |
| 2653 7000 63 01 | 2653 7000 63 01 | Liner Inner LH (Rear Wheel Arch) | |
| 2653 7000 01 21DP | 2653 7000 01 21DP | Assy. Load Body Complete With Fitments LHD, Passion red | |
| 2653 7000 01 21D7 | 2653 7000 01 21D7 | Assy. Load Body Complete With Fitments LHD, Silver Mist | |
| 2653 7000 01 21D5 | 2653 7000 01 21D5 | Assy. Load Body Complete With Fitments LHD, Timber green | |
| 2653 7000 01 21D3 | 2653 7000 01 21D3 | Assy. Load Body Complete With Fitments LHD, Artic silver | |
| 2653 7000 01 21BP | 2653 7000 01 21BP | Assy. Load Body Complete With Fitments LHD, Metalic Silver | |
| 2653 7000 01 21BN | 2653 7000 01 21BN | Assy. Load Body Complete With Fitments LHD, Ruby Red | |
| 2653 7000 01 21BM | 2653 7000 01 21BM | Assy. Load Body Complete With Fitments LHD, Fiji Blue | |
| 2653 7000 01 21BG | 2653 7000 01 21BG | Assy. Load Body Complete With Fitments LHD, | |
| 2653 7000 01 21BF | 2653 7000 01 21BF | Assy. Load Body Complete With Fitments LHD, Artic White | |
| 2653 7000 01 25BF | 2653 7000 01 25BF | Assy. Load Body Complete With Fitments RHD, Artic White | |
| 2653 7000 01 25BM | 2653 7000 01 25BM | Assy. Load Body Complete With Fitments RHD Fiji Blue | |
| 2653 7000 01 25BN | 2653 7000 01 25BN | Assy. Load Body Complete With Fitments RHD, Ruby Red | |
| 2653 7000 01 25D3 | 2653 7000 01 25D3 | Assy. Load Body Complete With Fitments RHD, Artic silver | |
| 2653 7000 01 25D5 | 2653 7000 01 25D5 | Assy. Load Body Complete With Fitments RHD, Timber green | |
| 2653 7000 01 25D7 | 2653 7000 01 25D7 | Assy. Load Body Complete With Fitments RHD, Silver Mist | |
| 2653 7000 01 25DP | 2653 7000 01 25DP | Assy. Load Body Complete With Fitments RHD, Passion red | |
| 1 | 2653 7000 01 26D7 | Assy. Load Body Complete Painted RHD, Silver Mist | |
| 1 | 2653 7000 01 22DP | Assy. Load Body Complete Painted LHD, Passion red | |
| 1 | 2653 7000 01 22D7 | Assy. Load Body Complete Painted LHD, Silver Mist | |
| 1 | 2653 7000 01 22D5 | Assy. Load Body Complete Painted LHD, Timber green | |
| 1 | 2653 7000 01 22D3 | Assy. Load Body Complete Painted LHD, Artic silver | |
| 1 | 2653 7000 01 22BP | Assy. Load Body Complete Painted LHD, Metalic Silver | |
| 1 | 2653 7000 01 22BM | Assy. Load Body Complete Painted LHD, Fiji Blue | |
| 1 | 2653 7000 01 26D3 | Assy. Load Body Complete Painted RHD, Artic silver | |
| 1 | 2653 7000 01 26BN | Assy. Load Body Complete Painted RHD, Ruby Red | |
| 1 | 2653 7000 01 26BM | Assy. Load Body Complete Painted RHD, Fiji Blue | |
| 1 | 2653 7000 01 26BG | Assy. Load Body Complete Painted RHD, Mica burning Red | |
| 1 | 2653 7000 01 26D5 | Assy. Load Body Complete Painted RHD, Timber green | |
| 1 | 2653 7000 01 26DP | Assy. Load Body Complete Painted RHD, Passion red | |
| 1 | 2653 7000 01 22BN | Assy. Load Body Complete Painted LHD, Ruby Red | |
| 1 | 2653 7000 01 26BF | Assy. Load Body Complete Painted RHD, Artic White | |
| 1 | 2653 7000 01 22BF | Assy. Load Body Complete Painted LHD, Artic White | |
| 1 | 2653 7000 01 22BG | Assy. Load Body Complete Painted LHD, Mica burning Red | |
| 4 | 2654 7010 82 08 | Floor Panel | |
| 6 | 2654 7010 82 09 | Wheel Arch Panel | |
| 7 | 2653 7030 01 01 | Assy. Side Wall LH | |
| 8 | 2653 7030 01 02 | Assy. Side Wall RH | |
| 20 | 2654 7040 01 30 | Assy. Tail Gate Shell | |
| 21 | 2654 7040 01 23 | Assy. Hinge | |
| 22 | 2832 7030 01 01 | Assy. Load Guard | |
| 33 | 2659 6010 01 77 | Assy Lid | |
| 34 | 2659 5440 99 01 | Reflex Reflector |
