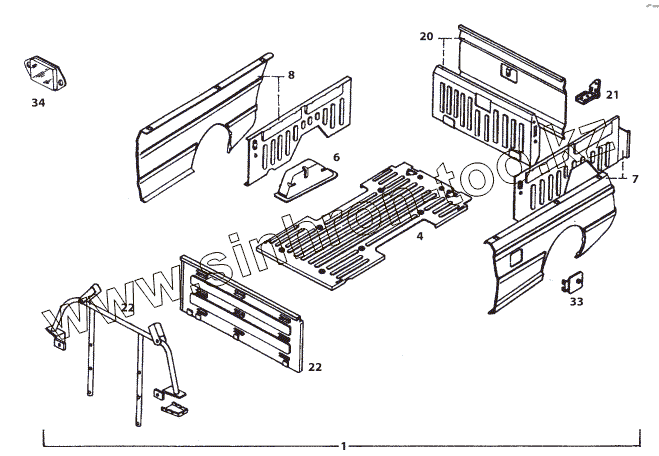

Каталог запасных частей к технике: Tata Telcoline-207. ASSY. LOAD BODY (CREW CAB)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
6
7
8
20
21
22
22
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| Mica Burning Red | |||
| 2721 7000 01 21BM | 2721 7000 01 21BM | Assy Load Body Complete With Fitments RHD, Fiji Blue | |
| 2721 7000 01 21BN | 2721 7000 01 21BN | Assy Load Body Complete With Fitments RHD, Ruby Red | |
| 2721 7000 01 21C3 | 2721 7000 01 21C3 | Assy Load Body Complete With Fitments RHD, Mica Black | |
| 2721 7000 01 21D3 | 2721 7000 01 21D3 | Assy Load Body Complete With Fitments RHD, Artic Silver | |
| 2721 7000 01 21D5 | 2721 7000 01 21D5 | Assy Load Body Complete With Fitments RHD, Timber Green | |
| 2721 7000 01 21D7 | 2721 7000 01 21D7 | Assy Load Body Complete With Fitments RHD, Silver Mist | |
| 2721 7000 01 21DU | 2721 7000 01 21DU | Assy Load Body Complete With Fitments RHD, Quartz black | |
| 2654 7000 63 15 | 2654 7000 63 15 | Mudguard Liner RH | |
| 2654 7000 63 05 | 2654 7000 63 05 | Mudguard Liner LH | |
| 2721 7000 01 19BG | 2721 7000 01 19BG | Assy Load Body Complete With Fitments LHD, | |
| 2653 7000 63 18 | 2653 7000 63 18 | Mudflap rear with T | |
| 2653 7000 63 03 | 2653 7000 63 03 | Mudflap rear with T | |
| 2653 7000 63 02 | 2653 7000 63 02 | Liner Inner RH (Rear Wheel Arch) | |
| 2721 7000 01 19BF | 2721 7000 01 19BF | Assy Load Body Complete With Fitments LHD, Artic White | |
| 2653 7000 63 01 | 2653 7000 63 01 | Liner Inner LH (Rear Wheel Arch) | |
| 2654 7080 92 03 | 2654 7080 92 03 | Washer | |
| 2654 7080 01 09 | 2654 7080 01 09 | Assy Bolt With Nylon Insert | |
| 2654 7030 34 01 | 2654 7030 34 01 | Bush | |
| 2721 7000 01 21BG | 2721 7000 01 21BG | Assy Load Body Complete With Fitments RHD, | |
| 2721 7000 01 19BM | 2721 7000 01 19BM | Assy Load Body Complete With Fitments LHD, Fiji Blue | |
| 2721 7000 01 19BN | 2721 7000 01 19BN | Assy Load Body Complete With Fitments LHD, Ruby Red | |
| 2721 7000 01 19D3 | 2721 7000 01 19D3 | Assy Load Body Complete With Fitments LHD, Artic Silver | |
| 2721 7000 01 19D5 | 2721 7000 01 19D5 | Assy Load Body Complete With Fitments LHD, Timber Green | |
| 2721 7000 01 19DP | 2721 7000 01 19DP | Assy Load Body Complete With Fitments LHD, Passion Red | |
| 2721 7000 01 19BP | 2721 7000 01 19BP | Assy Load Body Complete With Fitments LHD, Metalic Silver | |
| 2721 7000 01 19D7 | 2721 7000 01 19D7 | Assy Load Body Complete With Fitments LHD, Silver Mist | |
| 2721 7000 01 19DU | 2721 7000 01 19DU | Assy Load Body Complete With Fitments LHD, Quartz black | |
| 2721 7000 01 20BF | 2721 7000 01 20BF | Assy Load Body Complete With Fitments RHD, Artic White | |
| 2721 7000 01 20BG | 2721 7000 01 20BG | Assy Load Body Complete With Fitments RHD, | |
| 2721 7000 01 20BM | 2721 7000 01 20BM | Assy Load Body Complete With Fitments RHD, Fiji Blue | |
| 2721 7000 01 20BN | 2721 7000 01 20BN | Assy Load Body Complete With Fitments RHD, Ruby Red | |
| 2721 7000 01 20D3 | 2721 7000 01 20D3 | Assy Load Body Complete With Fitments RHD, Artic Silver | |
| 2721 7000 01 20D5 | 2721 7000 01 20D5 | Assy Load Body Complete With Fitments RHD, Timber Green | |
| 2721 7000 01 20DP | 2721 7000 01 20DP | Assy Load Body Complete With Fitments RHD, Passion Red | |
| 2721 7000 01 21BF | 2721 7000 01 21BF | Assy Load Body Complete With Fitments RHD, Artic White | |
| Mica Burning Red | |||
| 1 | 2721 7000 01 18D3 | Assy Load Body Painted Without Fitments RHD, Artic Silver | |
| 1 | 2721 7000 01 15DU | Assy Load Body Painted Without Fitments LHD, Quartz black | |
| 1 | 2721 7000 01 15D7 | Assy Load Body Painted Without Fitments LHD, Silver Mist | |
| 1 | 2721 7000 01 15BP | Assy Load Body Painted Without Fitments LHD, Metalic Silver | |
| 1 | 2721 7000 01 15DP | Assy Load Body Painted Without Fitments LHD, Passion Red | |
| 1 | 2721 7000 01 15D5 | Assy Load Body Painted Without Fitments LHD, Timber Green | |
| 1 | 2721 7000 01 15BN | Assy Load Body Painted Without Fitments LHD, Ruby Red | |
| 1 | 2721 7000 01 18BG | Assy Load Body Painted Without Fitments RHD, | |
| 1 | 2721 7000 01 18BM | Assy Load Body Painted Without Fitments RHD, Fiji Blue | |
| 1 | 2721 7000 01 18BN | Assy Load Body Painted Without Fitments RHD, Ruby Red | |
| 1 | 2721 7000 01 18C3 | Assy Load Body Painted Without Fitments RHD, Mica Black | |
| 1 | 2721 7000 01 18D5 | Assy Load Body Painted Without Fitments RHD, Timber Green | |
| 1 | 2721 7000 01 18D7 | Assy Load Body Painted Without Fitments RHD, Silver Mist | |
| 1 | 2721 7000 01 18DU | Assy Load Body Painted Without Fitments RHD, Quartz black | |
| 1 | 2721 7000 01 18DP | Assy Load Body Painted Without Fitments RHD, Passion Red | |
| 1 | 2721 7000 01 18BF | Assy Load Body Painted Without Fitments RHD, Artic White | |
| 1 | 2721 7000 01 15D3 | Assy Load Body Painted Without Fitments LHD, Artic Silver | |
| 1 | 2721 7000 01 15BF | Assy Load Body Painted Without Fitments LHD, Artic White | |
| 1 | 2721 7000 01 15BG | Assy Load Body Painted Without Fitments LHD, | |
| 1 | 2721 7000 01 15BM | Assy Load Body Painted Without Fitments LHD, Fiji Blue | |
| 4 | 2701 7010 82 17 | Floor Panel | |
| 6 | 2654 7010 82 09 | Wheel Arch Panel | |
| 7 | 2721 7030 01 03 | Assy Side Wall LH | |
| 8 | 2721 7030 01 04 | Assy Side Wall RH | |
| 20 | 2654 7040 01 30 | Assy. Tail Gate Shell | |
| 21 | 2654 7040 01 23 | Assy. Hinge | |
| 22 | 2832 7030 01 01 | Assy. Load Guard | |
| 33 | 2659 6010 01 77 | Assy Lid | |
| 34 | 2659 5440 99 01 | Reflex Reflector |
