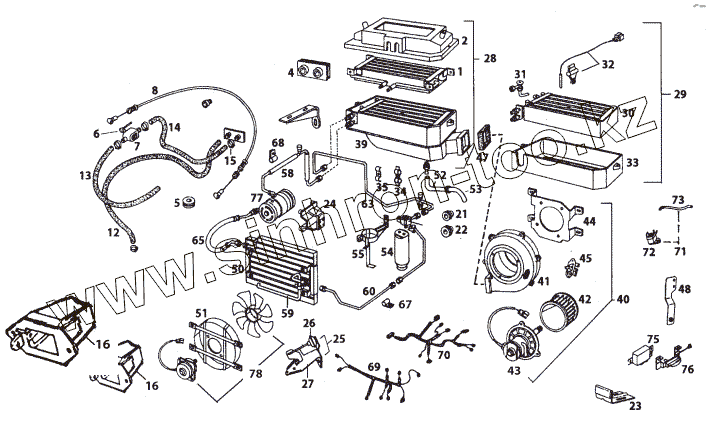

Каталог запасных частей к технике: Tata Telcoline-207. AC + HEATING AND DEMISTING SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
2
2
2
2
4
4
5
5
6
6
7
7
8
8
8
8
12
12
13
13
13
13
14
14
14
14
15
15
16
16
16
16
16
16
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
28
28
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
39
39
39
39
40
40
40
40
41
41
41
41
42
42
42
42
43
43
44
44
44
44
45
45
47
47
48
48
48
48
50
50
50
50
51
51
51
51
52
52
53
53
54
54
55
55
55
55
58
58
58
58
58
58
59
59
59
59
60
60
60
60
63
63
63
63
65
65
65
65
67
67
68
68
69
69
70
70
71
71
72
72
73
73
75
75
76
76
77
77
78
78
Позиция на иллюстрации Заводской номер детали Название детали
2547 2312 02 52 2547 2312 02 52 Assy. A/C Compressor {10S11} {Subros}
2659 8310 42 01 2659 8310 42 01 Clamp (Vacuum Hose)
2659 8341 01 08 2659 8341 01 08 Assy Tube Liquid (Condensor Coil Inlet)LHD
2659 8310 82 97 2659 8310 82 97 Clamp (Rd Outlet) Subros
2659 8310 82 99 2659 8310 82 99 Clamp (Rd Outlet) Subros
2659 8310 82 84 2659 8310 82 84 Stay Bracket
2659 8311 01 07 2659 8311 01 07 Assy Air Duct-RHD
2658 5460 75 12 2658 5460 75 12 Rubber Grommet
2651 8340 63 01 2651 8340 63 01 Grommet (For Ac Hoses)
2659 8330 01 80 2659 8330 01 80 Assy Push Pull Cable - White
000 997 34 81 000 997 34 81 Rubber Grommet.
2654 8350 58 05 2654 8350 58 05 Rubber Hose (17 Id X L 950)
1 2654 8340 01 08 Assy Heater Coil (Teksons)
1 2833 8350 01 01 Assy Heater Coil
2 2654 8311 01 08 Assy Adaptor (Suitable For Heater)
2 2659 8313 01 53 Assy Adaptor (Suitable For Heater)
4 2654 8330 63 17 Cover (For Heater Cut Out)
5 2654 8350 75 02 Rubber Grommet
6 2654 8350 01 09 Assy Lever (N/D Type Water Valve
7 2654 8350 01 08 Assy Water Valve-(5113600605)
8 2659 8330 01 81 Assy Push Pull Cable (Aepl) White
8 2659 8330 01 80 Assy Push Pull Cable - White
12 2654 8350 58 05 Rubber Hose (17 Id X L 950)
13 2654 8350 58 08 Rubber Hose (Thrermostat to Water Valve)
13 2654 8350 58 13 Rubber Hose (water Valve To Thermostat)
14 2654 8350 58 14 Hose (For Water Valve To Heater)
14 2659 8350 58 05 Rubber Hose-(Water Valve To Htr Inlet)
15 2654 8330 01 77 Hose Clamp-25
16 2659 8311 01 24 Assy Fresh Air Valve RHD(without Cable)
16 2659 8311 01 65 Assy Fresh Air Valve LHD(without Cable)
21 2659 8311 63 95 Grommet (Discharge Line)
22 2659 8311 63 96 Grommet (Liquid Line)
23 2654 8311 01 24 Assy Bracket AC Unit Support On Cross Member
24 2547 2312 01 55 Assy Bracket (Subros)
25 2547 2312 01 28 Assy FICD-complete (Subros)
26 2547 2312 99 10 Actuator (FICD)-(Subros)
27 2547 2312 33 01 Actuator Bracket (Subros)
28 2654 8311 01 73 Assy Ac+Heater Unit
28 2654 8311 01 80 Assy Ac+Heater Unit (Subros)
29 2654 8312 01 75 Assy Coil Housing Complete
29 2654 8312 01 82 Assy Coil Housing Complete
30 2654 8312 01 76 Assy Evaporator - HFC-134a (Subros)
31 2659 8312 01 69 Assy Thermo Expan Valve (HFC-134a)-Subros
32 2658 5470 60 01 Thermister Assy(SB 077500-0710)
33 2659 8311 01 57 Assy Coil Housing (AC)(FRP)-RHD (Sub)
34 2659 8311 63 51 Pipe Grommet (Coil Housing)
35 2659 8310 82 62 Clamp (Evp Pipes)(Subros)
39 2659 8312 01 90 Assy Air Duct -RHD (M/s Subros)
39 2659 8312 01 92 Assy Air Duct -LHD (M/s Subros)
40 2658 8340 01 39 Assy Blower Complete (3 Pole Resistor) (Sub)-LHD
40 2658 8340 01 37 Assy Blower Complete (3 Pole Resistor) (Sub)-RHD
41 2659 8311 01 60 Assy Blower Housing - RHD
41 2651 8310 01 61 Assy Blower Housing - LHD
42 2658 5470 99 11 Fan Blower RHD-(Sb 116221-0280)
42 2654 5470 99 04 Fan Blower LHD-(Subros)
43 2658 5470 99 10 Blower Motor-(Sb-162500-557)
44 2659 8313 01 62 Assy Bracket Blower Mounting-LHD
44 2659 8313 01 61 Assy Bracket Blower Mounting-RHD
45 2654 5470 99 06 Resistor With 3-pole Conn (M/s Subros)
46 2658 5461 01 91 Assy A/c Cable Set (iv) Mssl-RHD Subros
46 2658 5461 01 93 Assy A/c Cable Set
47 2654 8311 63 25 Sealing Gasket (Blower To Duct)
48 2659 8312 01 59 Assy Bracket(Coil Housing To Duct Rear) LH RHD
48 2659 8312 01 62 Assy Bracket(Coil Housing To Duct Rear) RH LHD
50 2654 8311 01 69 Assy AC Condenser
50 2659 8340 01 39 Assy AC Condenser (HFC-134)-Subros
51 2659 8311 01 72 Assy Bracket-RH (For Indrad Fan On Subros)
51 2659 8311 01 71 Assy Bracket-LH (For Indrad Fan On Subros)
52 2659 8311 63 92 Drain Hose With Grommet
53 2659 8310 63 50 Grommet (For Drain Tube)(Subros).
54 2659 8312 01 70 Assy Tank R/drier HFC-134 (Subros)
55 2659 8340 01 14 Assy Bracket (For Receiver Drier Mounting)(Subros)
55 2659 8310 01 44 Assy Bracket(For Receiver Drier Mounting)(Subros)
56 2659 8311 63 49 Grommet (Fire Wall To Ac Liq Pipe)(Subros)
57 2659 8311 63 50 Grommet (Fire Wall To Ac Suc Pipe)(Subros)
58 2654 8312 01 70 Assy Hose Suction
58 2659 8341 01 09 Assy Hose Suction (Subros).
58 2659 8341 01 23 Assy Hose Suction (Subros).
59 2659 8341 01 04 Assy Tube Liquid (Cond Outlet)-134a
59 2659 8340 01 80 Assy Tube Liquid (Cond Outlet)-134a
60 2659 8340 01 81 Assy Tube Liquid(Rd Inlet)- 134a
60 2659 8341 01 07 Assy Tube Liquid(Rd Inlet)- 134a
63 2659 8341 01 05 Assy Tube Lq (Rd Outlet-LHD)134a-(Subros).
63 2659 8341 01 24 Assy Tube Lq (Rd Outlet-RHD)134a-(Subros).
65 2654 8311 01 71 Assy Hose Discharge
65 2659 8341 01 03 Assy Hose Discharge- 134a
67 2699 8310 82 04 Clamp Tube Liquid
68 2659 8310 82 60 Clamp (Hose Suction) (Subros)
69 2658 5461 01 36 Assy A/c Cable Set-I
70 2654 5461 01 57 Assy A/c Cable Set-II
71 2659 8310 01 45 Assy Vacuum Solenoid Valve
72 2658 5470 49 02 Vacuum Solenoid Valve With Mounting Bracket
73 2659 8310 58 08 Vacuum Hose
75 2654 5470 01 29 Assy Thermoamp W/pot and Mounting Bracket (M/Subros)
76 2654 8330 01 96 Assy Potentiometer - Subros
77 2547 2312 02 50 Assy. A/C Compressor {10S11} {Subros}
78 2659 5470 01 42 Assy.Cond.Fan Unit [Larger]-120W-Indrad
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
