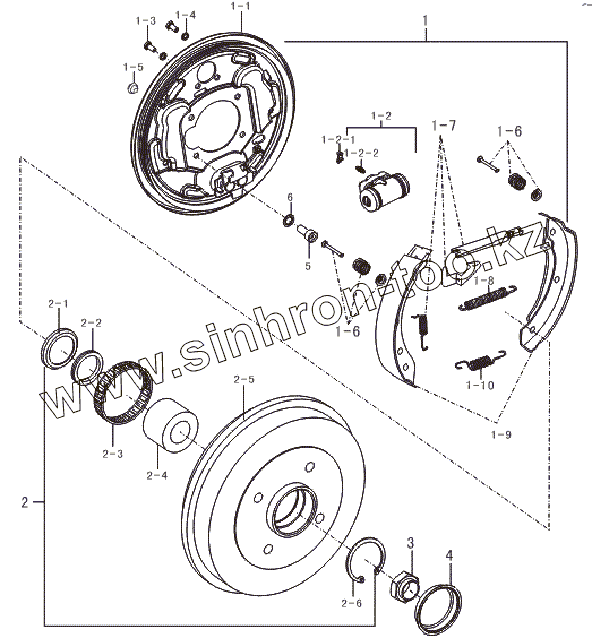

Каталог запасных частей к технике: Lifan LF-LF7161A Breez 1,6H. Rear brake

Тип техники

Марка

Модель

Схема

1

1

1

1

1-1

1-1

1-1

1-1

1-2

1-2

1-2-1

1-2-1

1-2-2

1-2-2

1-3

1-3

1-4

1-4

1-5

1-5

1-6

1-6

1-7

1-7

1-8

1-8

1-9

1-9

1-10

1-10

2

2

2-1

2-1

2-2

2-2

2-3

2-3

2-4

2-4

2-5

2-5

2-6

2-6

3

3

4

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
1	L3502190		Left rear brake assy
1	LAL3502190		Left rear brake assy
1	L3502290		Right rear brake assy
1	LAL3502290		Right rear brake assy
1-1	L3502110		Left backing plate
1-1	LAL3502110		Left backing plate
1-1	L3502210		Right backing plate
1-1	LAL3502210		Right backing plate
1-2	L3502150		Brake wheel cylinder
1-2	LAL3502150		Brake wheel cylinder
1-2-1	L3502152		Venting screw cap
1-2-1	LAL3502152		Venting screw cap
1-2-2	L3502151		Venting screw
1-2-2	LAL3502151		Venting screw
1-3	L3502154		Brake wheel cylinder bolt
1-3	LAL3502154		Brake wheel cylinder bolt
1-4	L3502153		Elastic washer
1-4	LAL3502153		Elastic washer
1-5	L3502141		Plug
1-5	LAL3502141		Plug
1-6	L3502140		Retain spring
1-7	L3502230		Right adjusting components
1-7	L3502130		Left adjusting components
1-8	L3502196		Spring
1-8	LAL3502196		Spring
1-9	SL35004		Left brake shoe (suite
1-9	SLAL35004		Left brake shoe (suite
1-10	L3502146		Spring
1-10	LAL3502146		Spring
2	L3502120		Brake drum assy
2	LAL3502120		Brake drum assy
2-1	L3502125		Hub seal
2-1	LAL3502125		Hub seal
2-2	L3502123		Spacer
2-2	LAL3502123		Spacer
2-3	L3502129		ABS gear
2-3	LAL3502129		ABS gear
2-4	L3502126		Rear hub bearing
2-4	LAL3502126		Rear hub bearing
2-5	L3502121		Brake drum
2-5	LAL3502121		Brake drum
2-6	L3502127		Circlip
2-6	LAL3502127		Circlip
3	131B-2216T2F3		Nut
3	131-2216T2F3		Nut
4	L3502124		Plug
4	LAL3502124		Plug
5	307-0820TF30		Bolt
6	Q40308		Elastic washer

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
