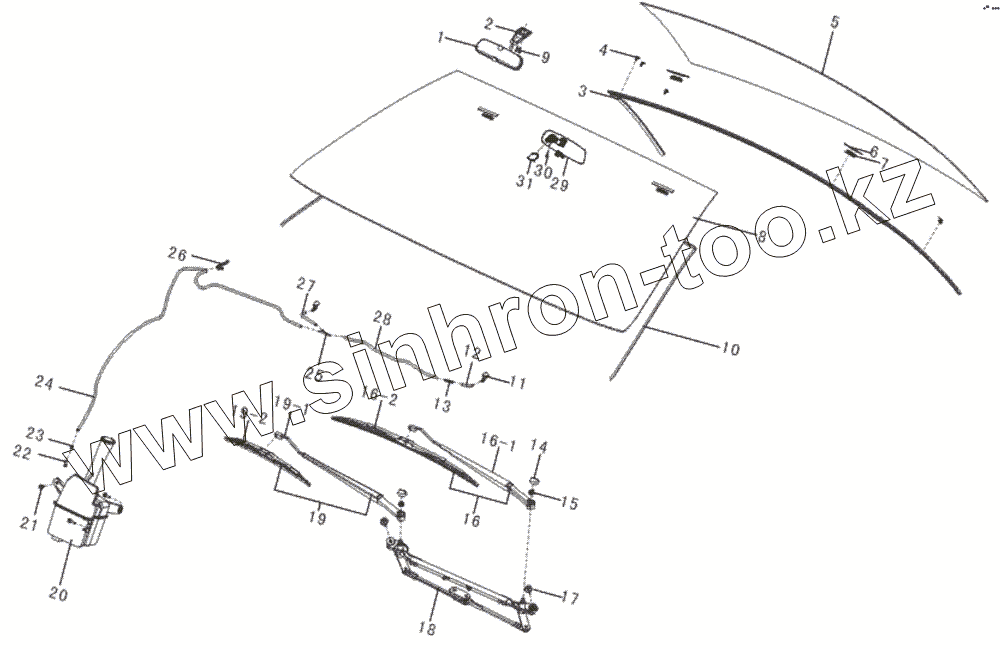

Каталог запасных частей к технике: Lifan LF-7162C Solano. Windsheild
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16-1
16-2
17
18
19
19-1
19-2
20
21
22
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B8201000 | Rearview mirror | |
| 2 | B8201121 | Rearview mirror seat | |
| 3 | B5206123 | Rear wind-shield glass seal | |
| 4 | B5206124 | Rear wind-shield glass insert | |
| 5 | B5206120 | Rear wind-shield glass | |
| 6 | B5206116 | Wind-shield glass clip II | |
| 7 | B5206115 | Wind-shield glass clip I | |
| 8 | B5206110 | Front wind-shield glass | |
| 9 | 333-0518 | Philips self-tapping screw | |
| 10 | B5206113 | Front wind-shield glass seal | |
| 11 | B5207330 | Washer nozzle | |
| 12 | B5207318 | Washer hose E | |
| 13 | B5207317 | Two-way valve B | |
| 14 | B5205116 | Wiper arm cap | |
| 15 | 127-0808 | Hex nut and flat washer | |
| 16 | B5205200 | Left wiper assy | |
| 16-1 | B5205210 | Left wiper arm | |
| 16-2 | B5205220 | Left wiper brush | |
| 17 | 201-0630 | Hex bolt and flat washer | |
| 18 | B5205100 | Wiper con-rod with front wiper motor assy | |
| 19 | B5205300 | Right wiper assy | |
| 19-1 | B5205310 | Right wiper arm | |
| 19-2 | B5205320 | Right wiper brush | |
| 20 | B5207100 | Washer can | |
| 21 | Q1410620L | Hex bolt and taper springness washer | |
| 22 | B5207313 | Washer hose B | |
| 23 | B5207312 | Two-way valve A | |
| 24 | B5207311 | Washer hose A | |
| 25 | B5207314 | T-valve | |
| 26 | B5207322 | Clip, washer hose A | |
| 27 | B5207316 | Washer hose D | |
| 28 | B5207315 | Washer hose C | |
| 29 | B8201100 | ||
| 30 | Q2140512F30 | ||
| 31 | B8201121 | Rearview mirror seat |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
