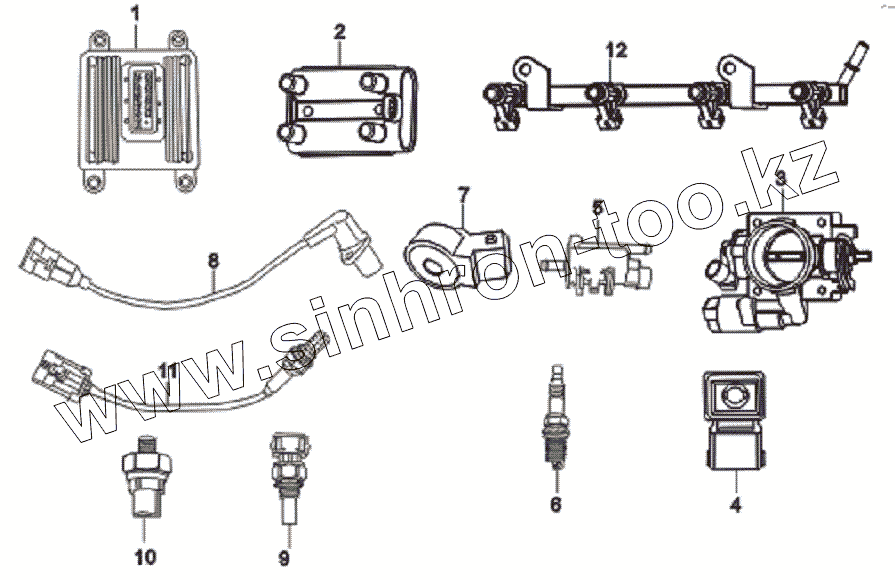

Каталог запасных частей к технике: Lifan LF-7162C Solano. EFI system
1
2
2
3
3
3
4
4
5
5
6
7
7
8
8
9
9
10
11
11
11
11
12
12
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| LBA1132150B1 | LBA1132150B1 | Idle motor | |
| LBA1132150 | LBA1132150 | Idle motor | |
| LBA1132160B1 | LBA1132160B1 | Throttle position sensor | |
| LBA1132160 | LBA1132160 | Throttle position sensor | |
| Q1840630 | Q1840630 | Crankshaft Position Sensor bolt | |
| LF481Q1-3611011A | LF481Q1-3611011A | Crankshaft Position Sensor | |
| LBA1124100B1 | LBA1124100B1 | Fuel injector | |
| 1 | BAC3612100B4 | ECU | |
| 2 | LBA3612500 | Ignition Coil | |
| 2 | LBA3705100B1 | Ignition Coil | |
| 3 | LBA1132100 | Throttle assy | |
| 3 | LBA1132100B1 | Throttle assy | |
| 3 | LBA1132100C1 | Throttle Assy | |
| 4 | LBA3614300 | Temperature And Pressure Sensor | |
| 4 | LBA3614300B1 | Temperature And Pressure Sensor | |
| 5 | LBA1130310B1 | Canister Control Valve | |
| 5 | LBA1130310 | Canister Control Valve | |
| 6 | LF479Q1-3707800A | Spark Pluge | |
| 7 | LBA3612400B1 | Knock Sensor | |
| 7 | LBA3612400 | Knock Sensor | |
| 8 | LBA3612600B1 | Crankshaft Position Sensor | |
| 8 | LBA3612600 | Crankshaft Position Sensor | |
| 9 | LBA3616100B1 | Water Temperature Sensor | |
| 9 | LBA3616100 | Water Temperature Sensor | |
| 10 | LF479Q1-3818100A | Oil pressure warner | |
| 11 | LBA3612300 | Oxygen Sensor | |
| 11 | LBA3612300B1 | Oxygen Sensor | |
| 11 | LBF3612300 | Front oxygen Sensor | |
| 11 | LBF3612300B1 | Rear oxygen Sensor | |
| 12 | LBA1121100 | Fuel Distributor | |
| 12 | LBA1121100B1 | Fuel Distributor |
