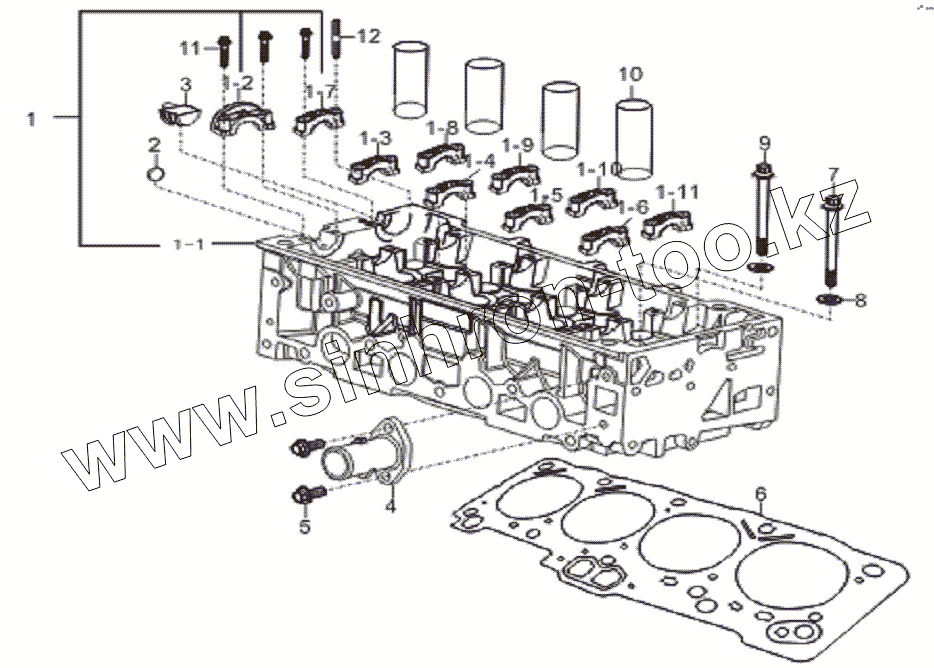

Каталог запасных частей к технике: Lifan LF-7162C Solano. Cylinder head
1
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
2
3
4
5
6
7
8
9
10
11
12
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LF479Q1-1003100A | Cylinder Head assy | |
| 1-1 | LF481Q1-1003101A | Cylinder Head | |
| 1-2 | LF479Q1-1003109A | Exhaust Camshaft Bearing Cap 1 | |
| 1-3 | LF479Q1-1003110A | Exhaust Camshaft Bearing Cap 2 | |
| 1-4 | LF479Q1-1003111A | Exhaust Camshaft Bearing Cap 3 | |
| 1-5 | LF479Q1-1003112A | Exhaust Camshaft Bearing Cap 4 | |
| 1-6 | LF479Q1-1003113A | Exhaust Camshaft Bearing Cap 5 | |
| 1-7 | LF479Q1-1003104A | Intake Camshaft Bearing Cap 1 | |
| 1-8 | LF479Q1-1003105A | Intake Camshaft Bearing Cap 2 | |
| 1-9 | LF479Q1-1003106A | Intake Camshaft Bearing Cap 3 | |
| 1-10 | LF479Q1-1003107A | Intake Camshaft Bearing Cap 4 | |
| 1-11 | LF479Q1-1003108A | Intake Camshaft Bearing Cap 5 | |
| 2 | LF479Q1-1003102A | Bowl Plug 1 | |
| 3 | LF479Q1-1003016A | Semi-Circle Plug | |
| 4 | LF479Q1-1300017A | Outlet tube | |
| 5 | Q1840820 | Hex flange bolt | |
| 6 | LF481Q1-1003300A | Gasket | |
| 7 | LF479Q1-1003013A | Cylinder head bolt(exhaust) | |
| 8 | Q40110T16F9 | washer | |
| 9 | LF479Q1-1003012A | Cylinder head bolt(intake) | |
| 10 | LF479Q1-3707011A | Spark pulg guild pipe | |
| 11 | LF479Q1-1003114A | Bolt | |
| 12 | LF479Q1-1003019A | Cylinder head cover thru-stud | |
| LF479Q1-1003014A | LF479Q1-1003014A | Cylinder head bolt washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
