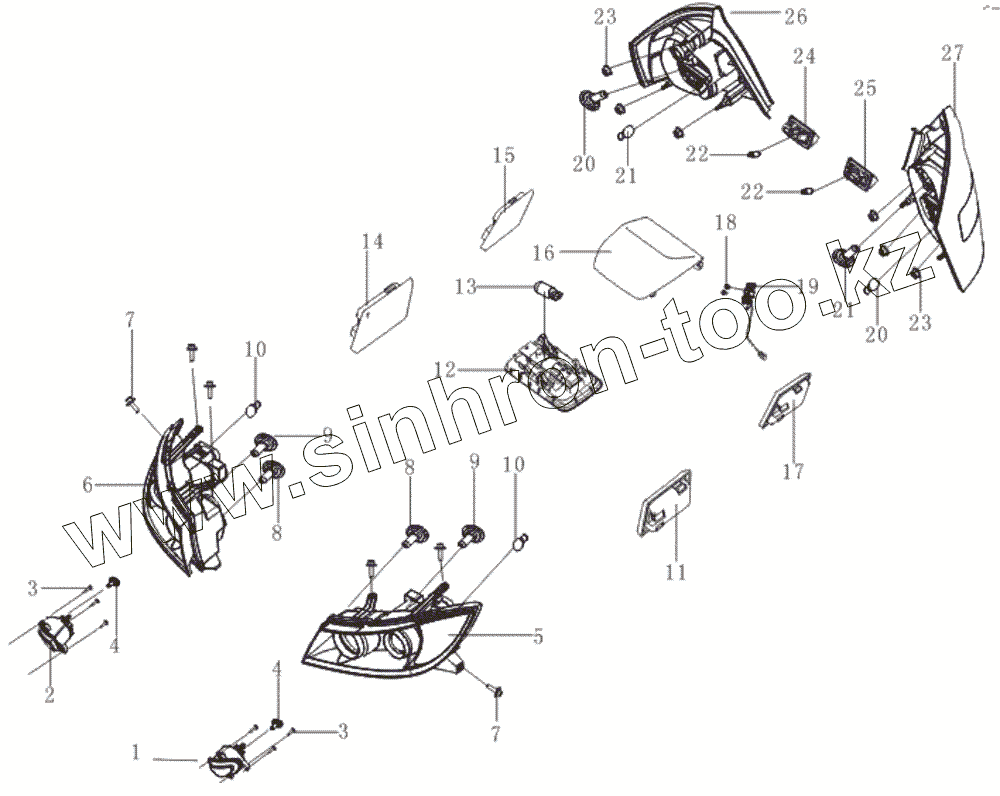

Каталог запасных частей к технике: Lifan LF-7162 Solano. Lamps
1
2
3
3
4
4
5
5
5
6
6
6
7
7
8
8
9
9
9
10
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
23
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| B4127100 | B4127100 | Trunk light | |
| B4123100 | B4123100 | Front ceiling light | |
| 1 | B4116100 | Front left fog lamp | |
| 2 | B4116200 | Front right fog lamp | |
| 3 | Q2706316 | Hex flange screw | |
| 4 | H3/GB 15776-2001 | Bulb | |
| 5 | B4121100B1 | Front left head lamp | |
| 5 | B4121100 | Front left head lamp | |
| 5 | B4121100C1 | Front left head lamp | |
| 6 | B4121200B1 | Front right head lamp | |
| 6 | B4121200 | Front right head lamp | |
| 6 | B4121200C1 | Front right head lamp | |
| 7 | Q1410616LT1F30 | Hex bolt and taper springness washer | |
| 8 | H3/GB 15776-2001 | Bulb | |
| 9 | H1/GB 15776-2001 | Bulb | |
| 9 | D1S/GB 15776-2001 | Bulb | |
| 10 | PY21W/GB 15776-2001 | Bulb | |
| 11 | B4131100 | Front left door lamp | |
| 12 | B4123400 | Rear ceiling light | |
| 13 | C5W/GB 15776-2001 | Bulb | |
| 14 | B4131200 | Front right door lamp | |
| 15 | B4131400 | Rear right door lamp | |
| 16 | B4134100 | High-mount brake lamp | |
| 17 | B4131300 | Rear left door lamp | |
| 18 | 305-0508F3 | Hex flange bolt | |
| 19 | B3758300 | Trunk light switch | |
| 20 | PY21W/GB 15776-2001 | Bulb | |
| 21 | P21W/GB 15776-2001 | Bulb | |
| 22 | W3W/GB 15776-2001 | Bulb | |
| 23 | Q32006 | Hex flange bolt | |
| 24 | B4108200 | Right registration lamp | |
| 25 | B4108100 | Left registration lamp | |
| 26 | B4133400 | Right tail lamp | |
| 27 | B4133300 | Left tail lamp |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
