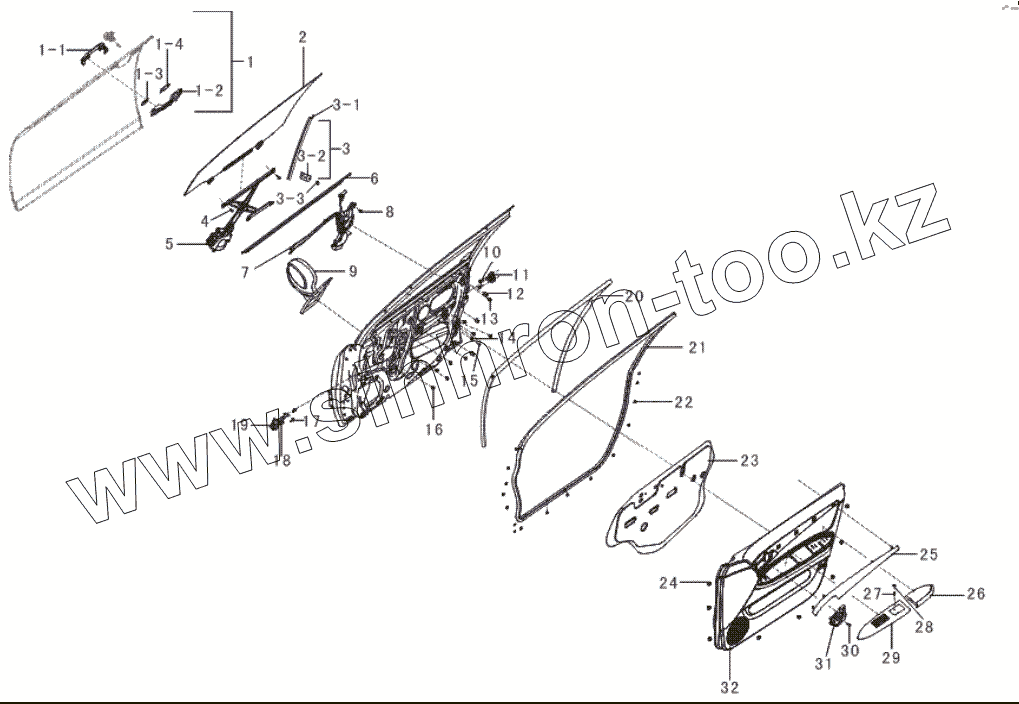

Каталог запасных частей к технике: Lifan LF-7162 Solano. Front right door
1
1-1
1-2
1-3
1-4
2
3
3-1
3-2
3-3
4
5
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B6105230A2 | Outer handle assy, front right door | |
| 1-1 | B6105131 | Outer handle | |
| 1-2 | B6105234 | Handle seat, front right door | |
| 1-3 | B6105133 | Plastic ring B, door handle | |
| 1-4 | B6105132 | Plastic ring A, door handle | |
| 2 | B6103200B1 | Front right door glass | |
| 3 | B6100220 | Glass rail assy, front right door | |
| 3-1 | B6100221 | Glass rail, front right door | |
| 3-2 | B6100222 | Glass rail bracket, front right door | |
| 3-3 | Q1840610 | Hex flange bolt | |
| 4 | Q1840612T1F30 | Hex flange bolt | |
| 5 | B6104200B1 | Glass lifter, front right door | |
| 6 | B6107212 | Weather Strip, front right door | |
| 7 | B6105210 | Front right door lock | |
| 7 | B6105210B1 | Front right door lock | |
| 8 | Q2560620F13 | Philips screw | |
| 9 | B8202200 | Right wing mirror | |
| 9 | B8202200B1 | Right wing mirror | |
| 10 | Q2400820 | Philips screw and washer | |
| 11 | B6105141 | Door buckle component | |
| 12 | B6109112 | Door damper | |
| 13 | Q1840610 | Hex flange bolt | |
| 14 | B6105318 | Plastic nut | |
| 15 | 309-3516 | Philips screw with washer | |
| 16 | Q1840610 | Hex flange bolt | |
| 17 | Q1840616T1F30 | Hex flange bolt | |
| 18 | Q1840816T1F30 | Hex flange bolt | |
| 19 | B6109100 | Front door stopper | |
| 20 | B6107211 | Glass seal, front right door | |
| 21 | B6107213 | Front right door seal | |
| 22 | B6107114 | Door seal clip A | |
| 23 | B6102020 | Rain shield, front right door | |
| 24 | 400-540 | Plastic clip | |
| 25 | B6102214 | Interior trim, front right door | |
| 26 | B6102217 | Inner handrail cushion, front right door | |
| 27 | Q2734216 | Philips self-tapping screw | |
| 28 | B6102119 | Front door screw cap | |
| 29 | B3746200 | Inner handrail with switches, front right door | |
| 30 | 309-3516 | Philips screw with washer | |
| 31 | B6105400 | Inner handle, rear right door | |
| 32 | B6102210B97 | Front right door interior |
