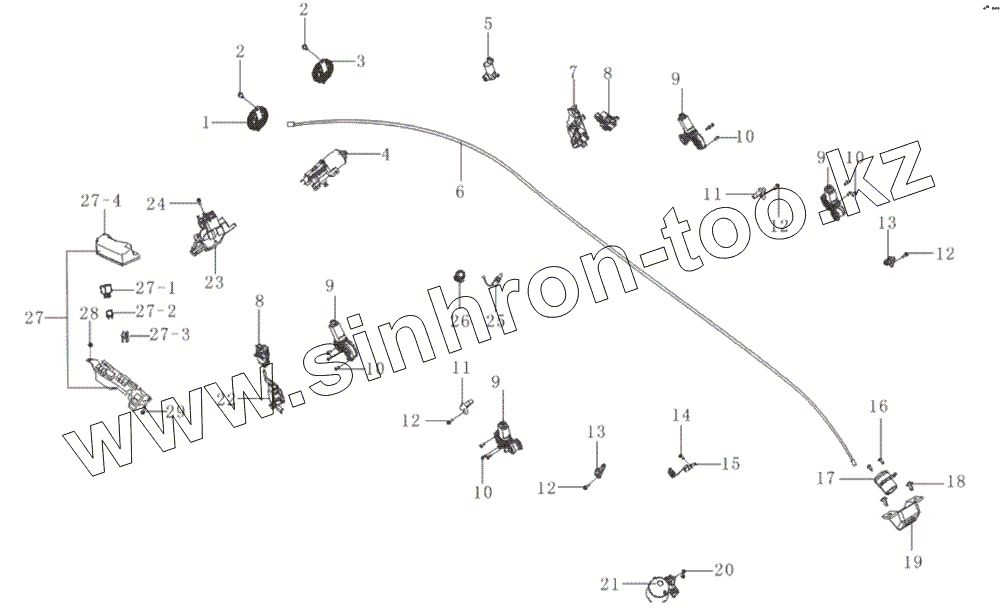

Каталог запасных частей к технике: Lifan LF-7162 Solano. Electric equipment
1
2
2
3
4
5
6
7
8
8
9
9
9
9
9
10
10
10
10
11
11
12
12
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27-1
27-1
27-1
27-1
27-1
27-1
27-1
27-1
27-1
27-1
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-2
27-3
27-4
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B3721100 | Alt horn | |
| 2 | Q1840816 | Hex flange bolt | |
| 3 | B3721200 | Bass horn | |
| 4 | B3741100 | Front wiper motor | |
| 5 | B3747120 | Front wiper pump motor | |
| 6 | B7917730 | Reverse monitor harness | |
| 7 | B3723050 | Instrument harness adapter | |
| 8 | B3723010 | Instrument harness lower adapter | |
| 9 | B3746500 | Glass lifter motor, left | |
| 9 | B3746600 | Glass lifter motor, right | |
| 10 | Q1840610 | Hex flange bolt | |
| 11 | B3758110 | Contacter switch, front door | |
| 12 | Q1840616T1F30 | Hex flange bolt | |
| 13 | B3758120 | Contacter switch, rear door | |
| 14 | Q1800612 | Hex flange bolt | |
| 15 | B7904310 | Noise filter | |
| 16 | B271195 | Philips self-tapping screw | |
| 17 | B7917710 | Reverse monitor camera | |
| 18 | Q2734295 | Philips self-tapping screw | |
| 19 | B7917711 | Camera cap | |
| 20 | Q32006 | Hex flange bolt | |
| 21 | B3605400 | Security warner | |
| 22 | B3723060 | Vehicle body harness adapter | |
| 23 | B3723030 | Instrument harness left adapter | |
| 24 | Q2706316 | Hex flange screw | |
| 25 | B4104430 | Ashtray light | |
| 26 | B3725100 | Cigarette lighter | |
| 27 | B3722200 | Central control case | |
| 27-1 | JD1926-30A/QC T73 | Relay | |
| 27-1 | JD1927-30A/QC T73 | Relay | |
| 27-1 | JD1927-30A/QC T73 | Relay | |
| 27-1 | JD1927-30A/QC T73 | Relay | |
| 27-1 | JD1927-30A/QC T73 | Relay | |
| 27-1 | JD1927-30A/QC T73 | Relay | |
| 27-1 | JD1927-30A/QC T73 | Relay | |
| 27-1 | JD1927-30A/QC T73 | Relay | |
| 27-1 | JD1927-30A/QC T73 | Relay | |
| 27-1 | JD101K-70A/QC T73 | Relay | |
| 27-2 | BX2011A1-30A/QC T73 | Fuse | |
| 27-2 | BX2011A1-40A/QC T73 | Fuse | |
| 27-2 | BX2011A1-60A/QC T73 | Fuse | |
| 27-2 | BX2011A1-60A/QC T73 | Fuse | |
| 27-2 | BX2011A1-100A/QC T73 | Fuse | |
| 27-2 | BX2011F-15A/QC T73 | Fuse | |
| 27-2 | BX2011F-15A/QC T73 | Fuse | |
| 27-2 | BX2011F-15A/QC T73 | Fuse | |
| 27-2 | BX2011F-25A/QC T73 | Fuse | |
| 27-2 | BX2011F-25A/QC T73 | Fuse | |
| 27-2 | BX2011F-25A/QC T73 | Fuse | |
| 27-2 | BX2011F-10A/QC T73 | Fuse | |
| 27-2 | BX2011F-10A/QC T73 | Fuse | |
| 27-2 | BX2011F-5A/QC T73 | Fuse | |
| 27-2 | BX2011F-10A/QC T73 | Fuse | |
| 27-2 | BX2011F-15A/QC T73 | Fuse | |
| 27-2 | BX2011F-20A/QC T73 | Fuse | |
| 27-2 | BX2011F-25A/QC T73 | Fuse | |
| 27-2 | BX2011F-30A/QC T73 | Fuse | |
| 27-2 | BX2011F-7.5A/QC T73 | Fuse | |
| 27-3 | B3722161B1 | Puller | |
| 27-4 | B3722211 | Central control case cap | |
| 28 | Q32006 | Hex flange bolt | |
| 29 | Q1410620 | Hex bolt and taper springness washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
