Каталог запасных частей к технике: Lifan LF-7162 Solano. Crankshaft and piston rod

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BYD Chevrolet Daewoo Geely Great Wall Hyundai Lifan Tata АЗЛК ВАЗ ГАЗ ЗАЗ ЗИЛ ИЖ ЛуАЗ РАФ УАЗ

Модель Не выбрано LF-7130A1 Breez 1,3 (2009) LF-7131A Breez 1,3 (2010) LF-7160L1 Breez 1,6 (2009) LF-7162 Solano (2009) LF-7162C Solano (2009) LF-LF7161A Breez 1,6H (2009)

Схема > Не выбрано Engine-Transmission Cylinder head Valve timing mechanism Cylinder block Crankshaft and piston rod Timing agency and front cover Lubrication system Intake manifold Exhaust Manifold Thermostat Pulley system Ignition device Fuel distributor Water pump Auxiliary devices Clutch EFI system Clutch shell Transmission shell Input shaft Output shaft Gearshift system Reverse counter shaft Differential Engine suspension (for Tritec engine) Front suspension (for Tritec engine) Front shock absorber Rear suspension Rear shock absorber Fuel supply (for Tritec engine) Air filter (for Tritec engine) Fuel tank Steering system (for Tritec engine) Power steering gear Shift system (for Tritec engine) Clutch controller system (for Tritec engine) Transmission shaft (for Tritec engine) Brake system Brake pedal Brake pump Front brake Rear brake Radiator (for Tritec engine) Exhaust system (for Tritec engine) Wheels Communication system and AV system Electric equipment Lamps Locks Battery (for Tritec engine) Instrument panel Electric device Headlining harness Vehicle body harness Defrost earth wire Reverse radar harness Power harness Rear door harness Wheel speed sensor harness Front harness Front door harness Antenna harness Battery negative wire Instrument panel harness Airbag harness Inner handrail switch Central control case Harness clamps Vehicle body Engine hood Front cowl Roof Side cowl Front door Rear door Front side fender Front damping Floor assy Rear cowl Steering wheel and Airbag Side body Front attachment Safety belt Ventilation Floor attachment Roof attachment Roof attachement (Top window) Windsheild Sub-Instrument panel Rear bumper Rear body attachment Rear seat Front bumper Front body attachment Driver's seat Front passenger's seat Rear right door attachment Front right door Rear left door Front left door Glove box LOGO Instrument panel Air conditioner assy (for Tritec engine) Ventilations Evaporator Blower

1

2

3

4

5

6

7

8

9

10

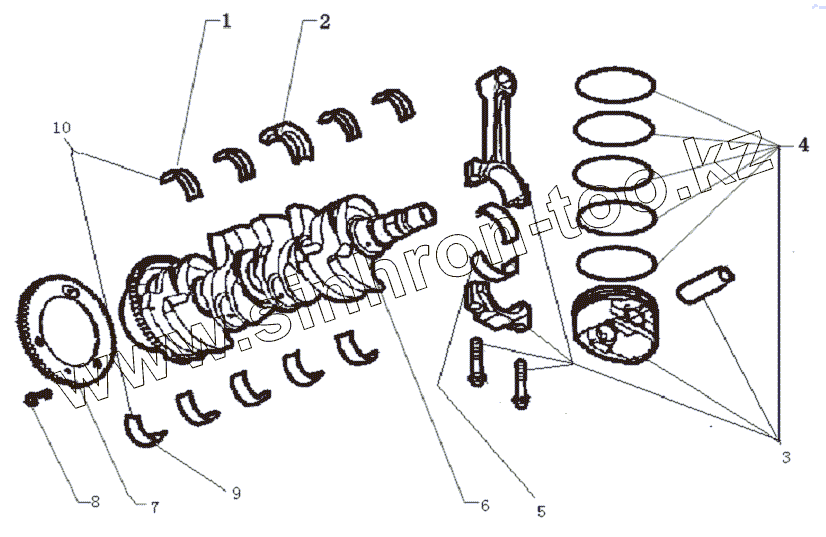

Позиция на иллюстрации	Заводской номер детали		Название детали
1	04777689AA		1, 2, 4, 5 crankshaft main bearing (upper)
2	5015906AB		3 crankshaft main bearing
3	PBS0519PC		Piston, pin and rod
4	5019834AA		Piston rings group
5	5015910AA		Rod Bearing
6	4777864AF		Crankshaft
7	4777685AC		Crankshaft position signal panel
8	6505673AA		Bolt
9	04777687AA		1, 2, 4, 5 crankshaft main bearing (lower)
10	5015902AA		1, 2, 4, 5 crankshaft main bearing packing
11	4667198		CRANKSHAFT REAR SEAL

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
