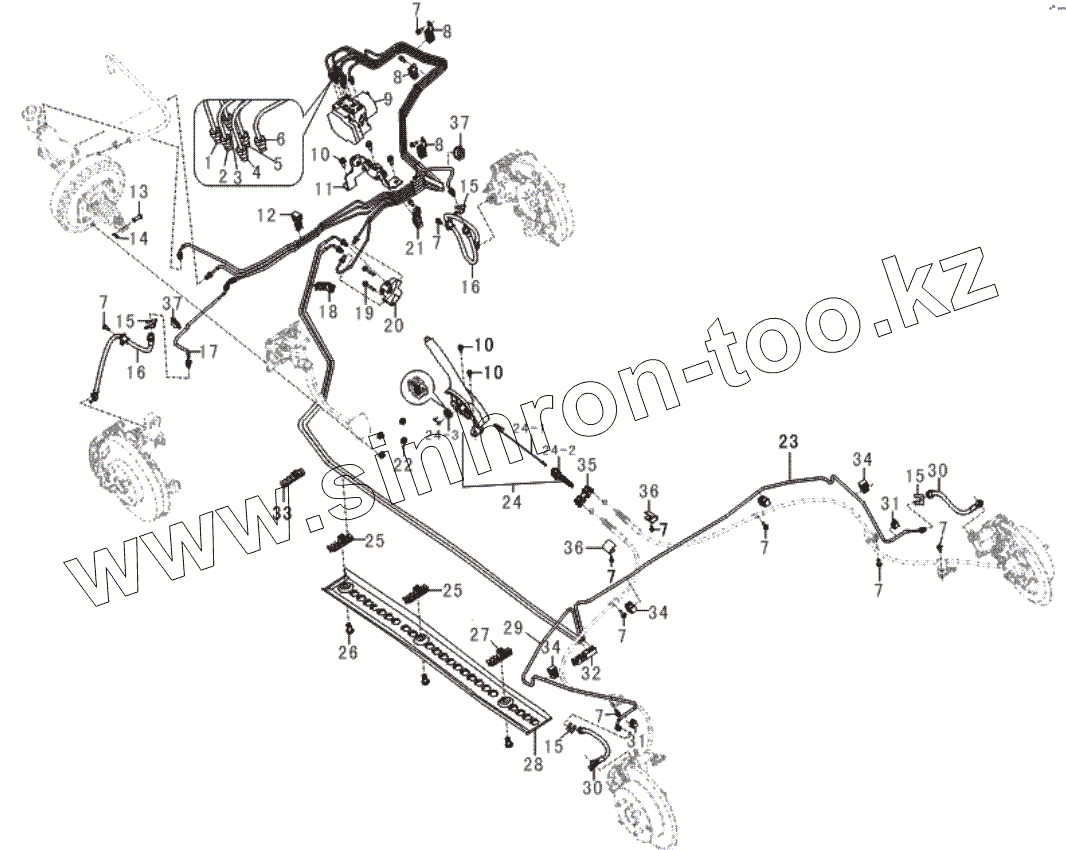

Каталог запасных частей к технике: Lifan LF-7162 Solano. Brake system
1
1
2
3
3
4
4
5
6
6
7
7
7
7
7
7
7
7
7
7
8
8
8
9
10
10
10
11
12
13
14
15
15
15
15
16
16
17
18
19
20
21
22
23
24
24-1
24-2
24-3
25
25
26
27
28
29
30
30
31
31
32
33
34
34
34
35
36
36
37
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B3506160B1 | Front left tube, proportional valve | |
| 1 | B3506160 | Front left tube, ABS | |
| 2 | B3506210 | Rear left tube I, ABS | |
| 3 | B3506140B1 | Master cylinder tube, proportional valve | |
| 3 | B3506140 | Master cylinder tube, ABS | |
| 4 | B3506110B1 | Front left tube I, proportional valve | |
| 4 | B3506110 | Front left tube I, ABS | |
| 5 | B3506230 | Rear right tube I, ABS | |
| 6 | B3506150B1 | Sub cylinder tube, proportional valve | |
| 6 | B3506150 | Sub cylinder tube, ABS | |
| 7 | Q1410616 | Hex bolt and taper springness washer | |
| 8 | B3506320 | Clamp | |
| 9 | B3550100 | ABS ECU | |
| 10 | Q1410820 | Hex bolt and taper springness washer | |
| 11 | B3550211 | ABS bracket | |
| 12 | B3506356 | Clamp A | |
| 13 | Q5101022 | Axis pin | |
| 14 | Q5003220 | Cotter pin | |
| 15 | L3506106 | E shape clip | |
| 16 | B3506130 | Front brake hose | |
| 17 | B3506120 | Front left tube II, ABS | |
| 18 | B3506357 | Clamp B | |
| 19 | Q1840645 | Hex flange bolt | |
| 20 | B3550411 | Proportional Valve | |
| 21 | B3506310 | Clamp | |
| 22 | 136-0813 | Hex bolt and taper springness washer | |
| 23 | B3506240 | Rear right tube II, Proportional Valve | |
| 24 | B3508300 | Parking brake lever | |
| 24-1 | B3508420 | Parking brake cable, fore part | |
| 24-2 | B3508411 | Cable sleeve | |
| 24-3 | B3781110 | Parking brake switch | |
| 25 | B3506351 | Clamp A | |
| 26 | B3506355 | Clamp clip | |
| 27 | B3506352 | Clamp B | |
| 28 | B3506362 | Brake pipeline fender | |
| 29 | B3506220 | Rear left tube II, Proportional Valve | |
| 30 | B3506250 | Rear brake hose | |
| 31 | B3506359 | Clamp B | |
| 32 | B3506353 | Clamp C | |
| 33 | B3506354 | Clamp C | |
| 34 | B3506358 | Clamp A | |
| 35 | B3508412 | Brake cable bracket | |
| 36 | B3508413 | Parking brake cable bracket, rear part | |
| 37 | B3506361 | Front brake tube sleeve |
