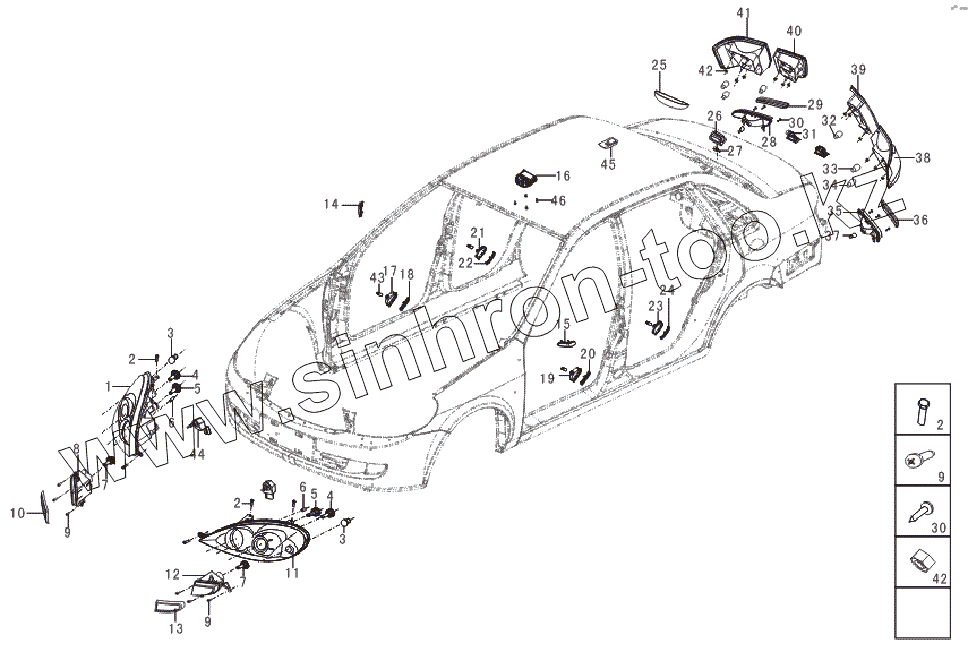

Каталог запасных частей к технике: Lifan LF-7160L1 Breez 1,6. Vehicle lamps
1
1
2
2
2
3
3
4
4
5
5
6
6
7
7
8
9
9
9
10
11
11
12
13
14
15
16
16
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
42
43
44
45
45
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| L4104100B1 | L4104100B1 | Door lamp switch | |
| 1 | LAX4121200B1 | Right head lamp | |
| 1 | LAX4121200 | Right head lamp | |
| 2 | Q1840816T1F30 | Hex flange bolt | |
| 3 | PY21W 12V/GB 15776-2001 | Bulb | |
| 4 | H1 12V/GB 15776-2001 | Low beam bulb | |
| 5 | H1 12V/GB 15776-2001 | Low beam bulb | |
| 6 | W5W 12V/GB 15776-2001 | Bulb | |
| 7 | H3 12V/GB 15776-2001 | Front fog lamp bulb | |
| 8 | L4116200 | Front right fog lamp | |
| 9 | Q2715519 | Screw | |
| 10 | L4116202 | Front right fog lamp seal | |
| 11 | LAX4121100B1 | Left head lamp | |
| 11 | LAX4121100 | Left head lamp | |
| 12 | L4116100 | Front left fog lamp | |
| 13 | L4116102 | Front left fog lamp seal | |
| 14 | L4111200 | Steering lamp | |
| 15 | L4111100 | Steering lamp | |
| 16 | L4123100B01 | Room light, front | |
| 16 | L4123100B03 | Room light, front | |
| 16 | L4123100B02 | Room light, front | |
| 17 | LAX4131200B06 | Door lamp, front right door | |
| 18 | LAX4135200 | Door lamp reflector, front right door | |
| 19 | LAX4131100B06 | Door lamp, front left door | |
| 20 | LAX4135100 | Door lamp reflector, front left door | |
| 21 | LAX4131400B06 | Door lamp, rear right door | |
| 22 | LAX4135400 | Door lamp reflector, rear right door | |
| 23 | LAX4131300B06 | Door lamp, rear left door | |
| 24 | LAX4135300 | Door lamp reflector, rear left door | |
| 25 | LAX4134100B05 | Brake lamp | |
| 25 | LAX4134100B02 | Brake lamp | |
| 26 | L4127000 | Trunk light | |
| 27 | C5W 12V/GB 15776-2001 | Trunk light bulb | |
| 28 | L4116400 | Tail fog lamp, right | |
| 29 | L4116402 | Tail fog lamp seal, right | |
| 30 | Q2715519 | Screw | |
| 31 | L4108100 | License light | |
| 32 | P21W 12V/GB 15776-2001 | Bulb | |
| 33 | PY21W 12V/GB 15776-2001 | Bulb | |
| 34 | P21W/5W 12V/GB 15776-2001 | Bulb | |
| 35 | L4116300 | Tail fog lamp, left | |
| 36 | L4116302 | Tail fog lamp seal, left | |
| 37 | P21W 12V/GB 15776-2001 | Bulb | |
| 38 | LAX4133300 | Left tail lamp, vehicle body | |
| 39 | LAX4133100 | Left tail lamp, trunk cover | |
| 40 | LAX4133200 | Right tail lamp, trunk cover | |
| 41 | LAX4133400 | Right tail lamp, vehicle body | |
| 42 | Q32006 | Hex flange bolt | |
| 43 | W5W 12V/GB 15776-2001 | Bulb | |
| 44 | LAX3661310 | Low beam adjustor | |
| 45 | L4123200B01 | Room light, rear | |
| 45 | L4123200B02 | Room light, rear | |
| 45 | L4123200B03 | Room light, rear | |
| 46 | Q2140510 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
