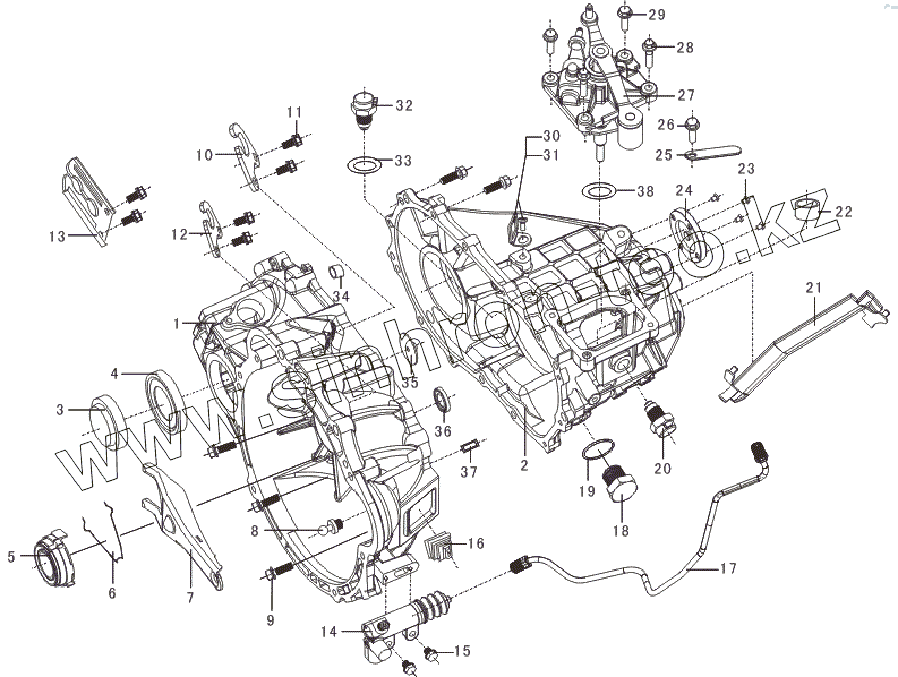

Каталог запасных частей к технике: Lifan LF-7160L1 Breez 1,6. Transmission shell
1
1
2
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LF481Q1-1701011A | Clutch shell | |
| 1 | LF481Q1-1701011A1 | Clutch shell | |
| 2 | LF481Q1-1701021A | Transmission shell | |
| 2 | LF481Q1-1701021A1 | Transmission shell | |
| 3 | LF481Q1-1701337A | Plug | |
| 4 | LF481Q1-2303322A | Differential T seal | |
| 4 | LF481Q1-2303321A | Differential T seal | |
| 4 | LF481Q1-2303314A | Differential T seal | |
| 5 | LF481Q1-1701334A | Throwout bearing | |
| 6 | LF481Q1-1701332A | Throwout circlip | |
| 7 | LF481Q1-1701330A | Throwout fork | |
| 8 | LF481Q1-1701333A | Throwout fork support | |
| 9 | LF481Q1-1701023A | Connecting bolt | |
| 10 | LF481Q1-1702039A | Transposition cable bracket | |
| 11 | LF481Q1-1702047A | Cable bracket bolt | |
| 12 | LF481Q1-1702038A | Shift cable bracket | |
| 13 | LF481Q1-1702040A | Shift cable bracket | |
| 14 | LF481Q1-1702160A | Clutch slave cylinder | |
| 15 | LF481Q1-1702159A | Bolt | |
| 16 | LF481Q1-1701331A | Throwout fork sleeve | |
| 17 | LF481Q1-1702170A | Hydraulic tube | |
| 18 | LF481Q1-1701026A | Hex bolt plug | |
| 19 | LF481Q1-1701029A | Aluminum washer | |
| 19 | LF481Q1-1701029B | Copper washer | |
| 20 | LF481Q1-1701033A | Shift position device | |
| 21 | LF481Q1-1701034A | Oil passage | |
| 22 | LF481Q1-1702037A | Transmission shell sleeve | |
| 23 | LF481Q1-1701155A | End cover bolt | |
| 24 | LF481Q1-1701154A | End cover | |
| 25 | LF481Q1-1701335A | Clamp | |
| 26 | LF481Q1-1701036A | Bolt with washer | |
| 27 | LF481Q1-1702110A1 | Shift shaft component | |
| 27 | LF481Q1-1702110A | Shift shaft component | |
| 28 | LF481Q1-1702157A | Bolt | |
| 29 | LF481Q1-1702158A | Bolt | |
| 30 | LF481Q1-1701024A | Tube bracket | |
| 31 | LF481Q1-1701025A | Tube bracket bolt | |
| 32 | LF481Q1-1701027A | Reverse light switch | |
| 33 | LF481Q1-1701029A | Aluminum washer | |
| 34 | LF481Q1-1701028A | Pin | |
| 35 | LF481Q1-1701190A | Oil passage cap | |
| 36 | LF481Q1-1701030A | Input shaft S seal | |
| 37 | LF481Q1-1701336A | Square magnet | |
| 38 | LF481Q1-1701086A | Aluminium washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
